992143 (ZT 2348 XLP) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 002000 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

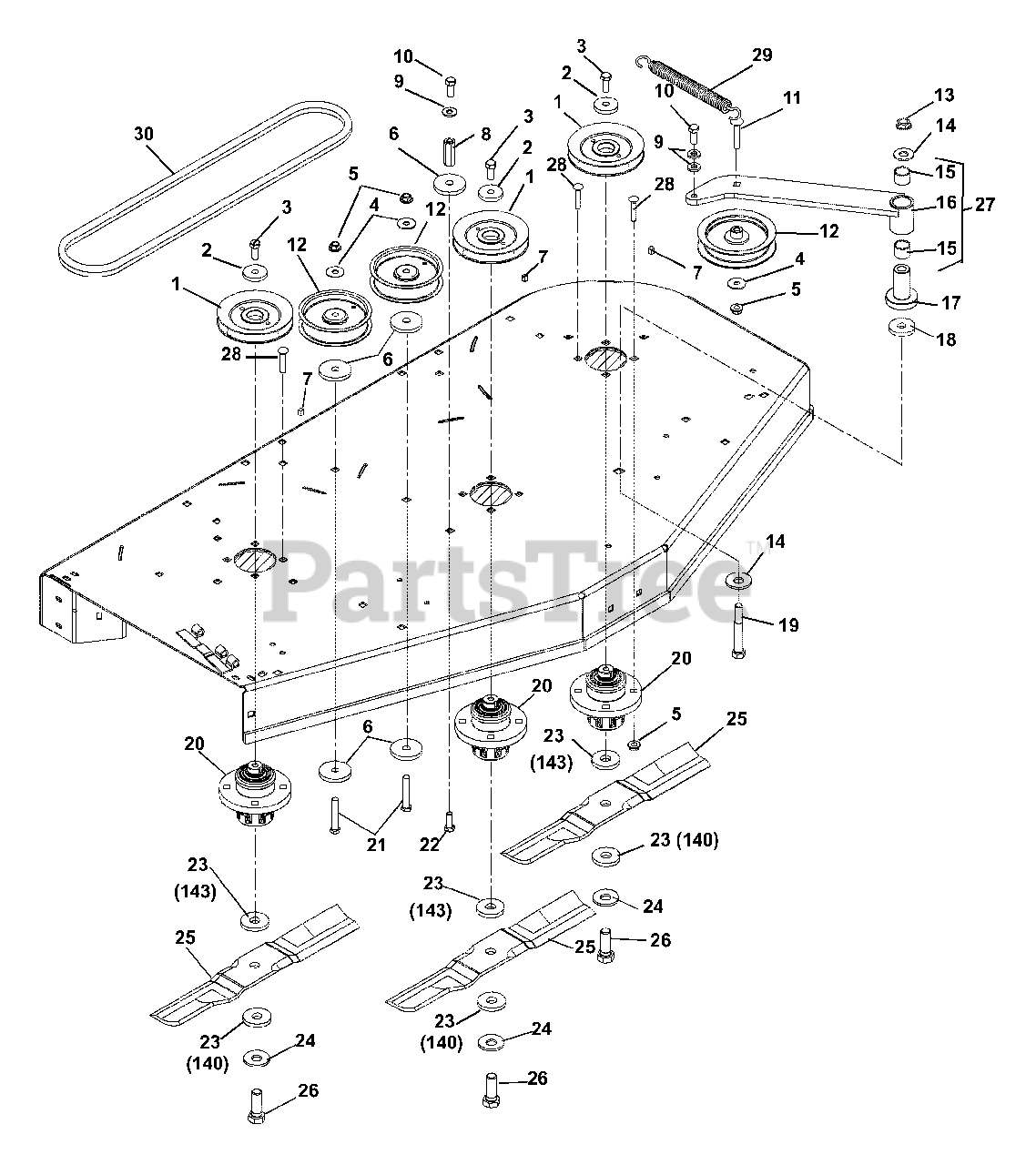

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 01610300

Sheave, 32" Deck
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

2

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

7

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

9

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 07300006

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

13

Gravely 06500010

Nut, Flange Nyloc .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06430200

Washer, Flat Steel .531 x 1.250 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

16

Gravely 00373851

Weldment, Idler Arm

$129.99

$

Usually ships in 4-12 days

0

17

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

18

Gravely 06400011

Washer, Flat Steel .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 51510000

Assembly, Spindle

$216.99

$

In Stock, Qty 12

0

21

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

24

Gravely 06445700

Washer, Beveled .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

25

Gravely 04919100

Blade, Mower 16.19" (143)

Note: (143)

$26.99

$

In Stock, Qty 20+

0

25

Gravely 01593900

Blade, Mower 15.50" (140)

Note: (140)

$23.99

$

In Stock, Qty 20+

0

26

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 00377500

Assembly, Idler Arm

Note: (Contains items 17 & 18)

$118.99

$

Usually ships in 4-12 days

0

28

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

29

Gravely 08300031

Spring, Extension (Deck Idler)

Note: (Deck Idler)

$51.99

$

In Stock, only 1 left!

0

30

Gravely 07241600

V-Belt, HA x 142.7 EFF. Length

$91.99

$

In Stock, only 1 left!
