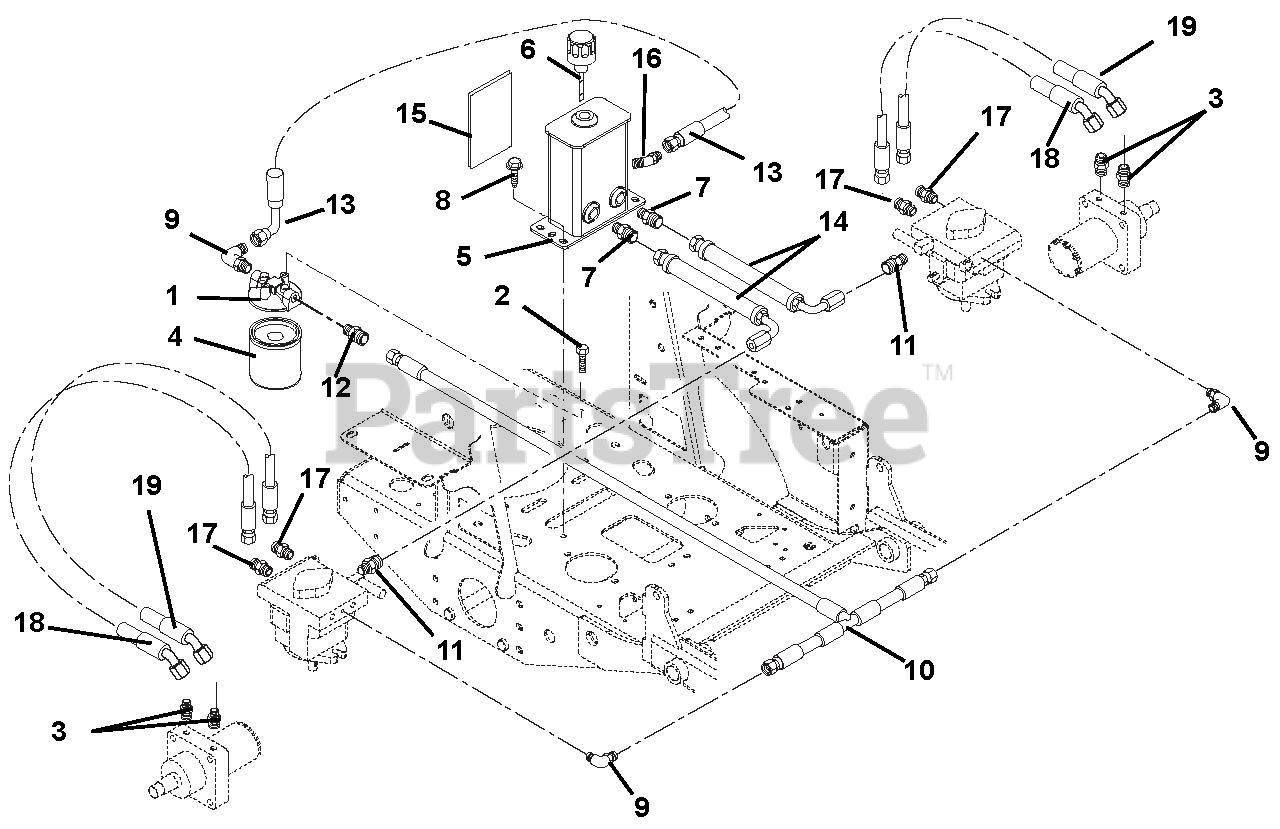

992143 (ZT 2348 XL) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 - 001999) Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09072100

Head, Filter

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 07062100

Adapter, Hydraulic

$14.99

$

In Stock, only 1 left!

0

4

Gravely 09246900

Oil Filter

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 00161051

Tank, Hydraulic

$

$

Not available

6

Gravely 00463000

Breather Dipstick

$

$

Not available

7

Gravely 07000012

Fitting, Hydraulic Straight M8O-M4F

$

$

Not available

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07063600

Fitting, Hydraulic

$34.99

$

In Stock, only 4 left!

0

10

Gravely 00277900

Hose, Hydraulic

$139.99

$

Usually ships in 4-12 days

0

11

Gravely 07063800

Fitting, Hydraulic

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 07064200

Fitting, Hydraulic

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 00275400

Hose, Hydraulic

$68.99

$

Usually ships in 4-12 days

0

14

Gravely 00275600

Hose, Hydraulic

$76.99

$

In Stock, only 3 left!

0

15

Gravely 09286900

Shield, Heat 5.50 x 4.50

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 07000011

Fitting, Hydraulic 45 Degree

$

$

Not available

17

Gravely 07059900

Fitting, Hydraulic

$9.49

$

In Stock, only 4 left!

0

18

Gravely 00357300

Hose, Hydraulic .50-11-3K

$79.99

$

In Stock, only 2 left!

0

19

Gravely 00357400

Hose, Hydraulic .50-12-3K

$96.99

$

In Stock, only 2 left!

0
