992143 (ZT 2348 XL) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 - 001999) Deck, Discharge Chute And Baffles Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

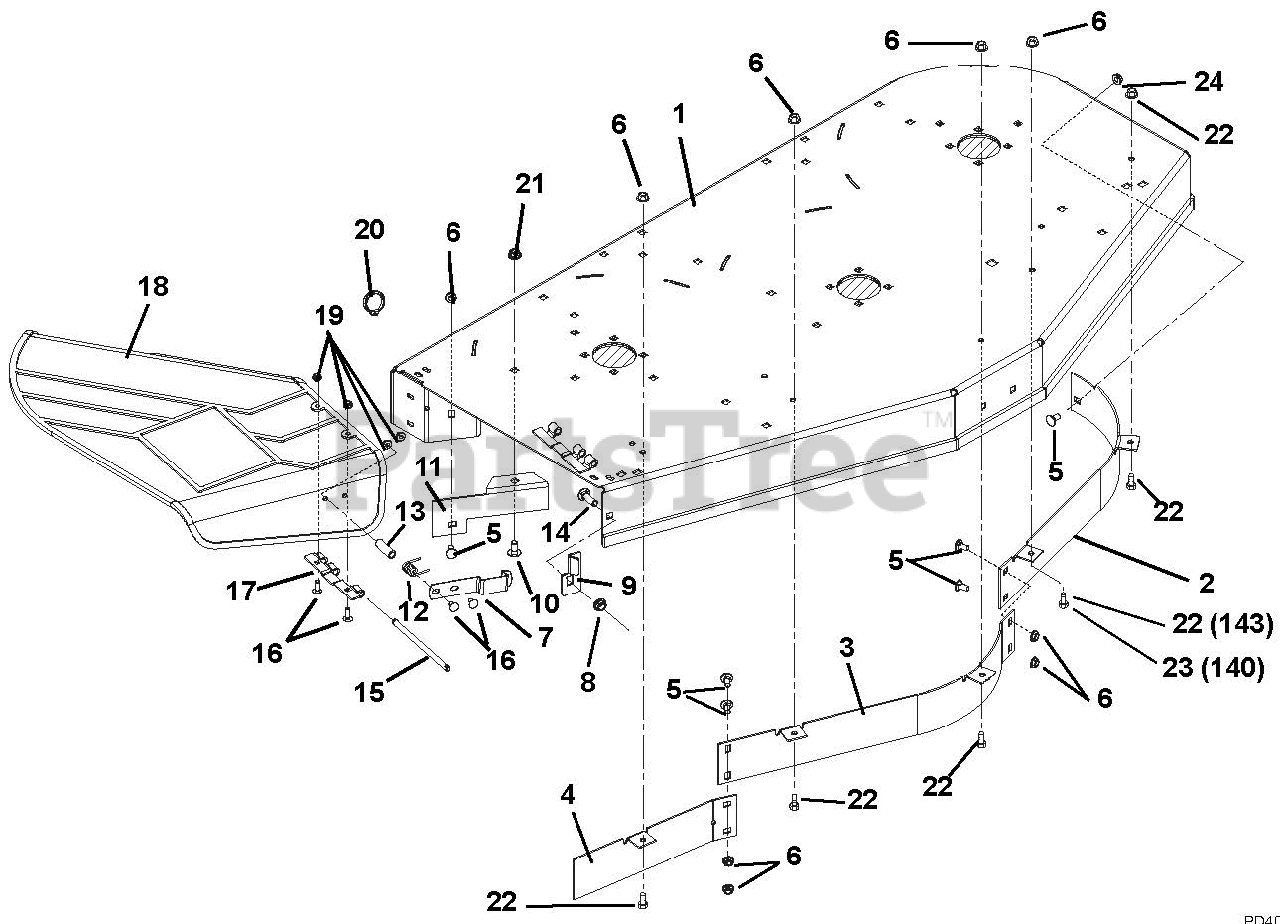

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 00375051

Weldment, Deck 48"
(Superseded to 59224500)

Note: (992143)

$813.99

$

Usually ships in 4-12 days

0

1

Gravely 00374051

Weldment, Deck 44"

Note: (992140)

$

$

Not available

2

Gravely 01574051

Baffle, Left Front 48"

Note: (992143)

$79.99

$

In Stock, only 1 left!

0

2

Gravely 01572451

Baffle, Left Front 44"

Note: (992140)

$99.99

$

Usually ships in 4-12 days

0

3

Gravely 01574151

Baffle, Center Front 48"

Note: (992143)

$66.99

$

Usually ships in 4-12 days

0

3

Gravely 01572551

Baffle, Center Front 44"

Note: (992140)

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 01574251

Baffle, Right Front 48"

Note: (992143)

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 01572651

Baffle, Right Front 44"

Note: (992140)

$36.99

$

Usually ships in 4-12 days

0

5

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62 Grade 5
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06545400

Nut, .312-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01597751

Flat Spring

$20.99

$

In Stock, only 1 left!

0

8

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01599151

Bracket, Chute Lock

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 01574651

Deflector, 44"/48"

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 08307200

Spring, Torsion .095 x .50 x 1.00

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 02202900

Bushing, Sleave .334 x .502 x 1.437

$5.99

$

In Stock, only 4 left!

0

14

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

16

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

17

Gravely 02709551

Hinge Plate

$27.99

$

In Stock, only 1 left!

0

18

Gravely 01585500

Deflector, Chute 42"

$78.99

$

In Stock, only 1 left!

0

19

Gravely 06500012

Nut, Nyloc Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

20

Gravely 05706300

Ring, Retaining Exterior

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (992143)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (992140)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: (992140)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500011

Nut, Center Locking Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0
