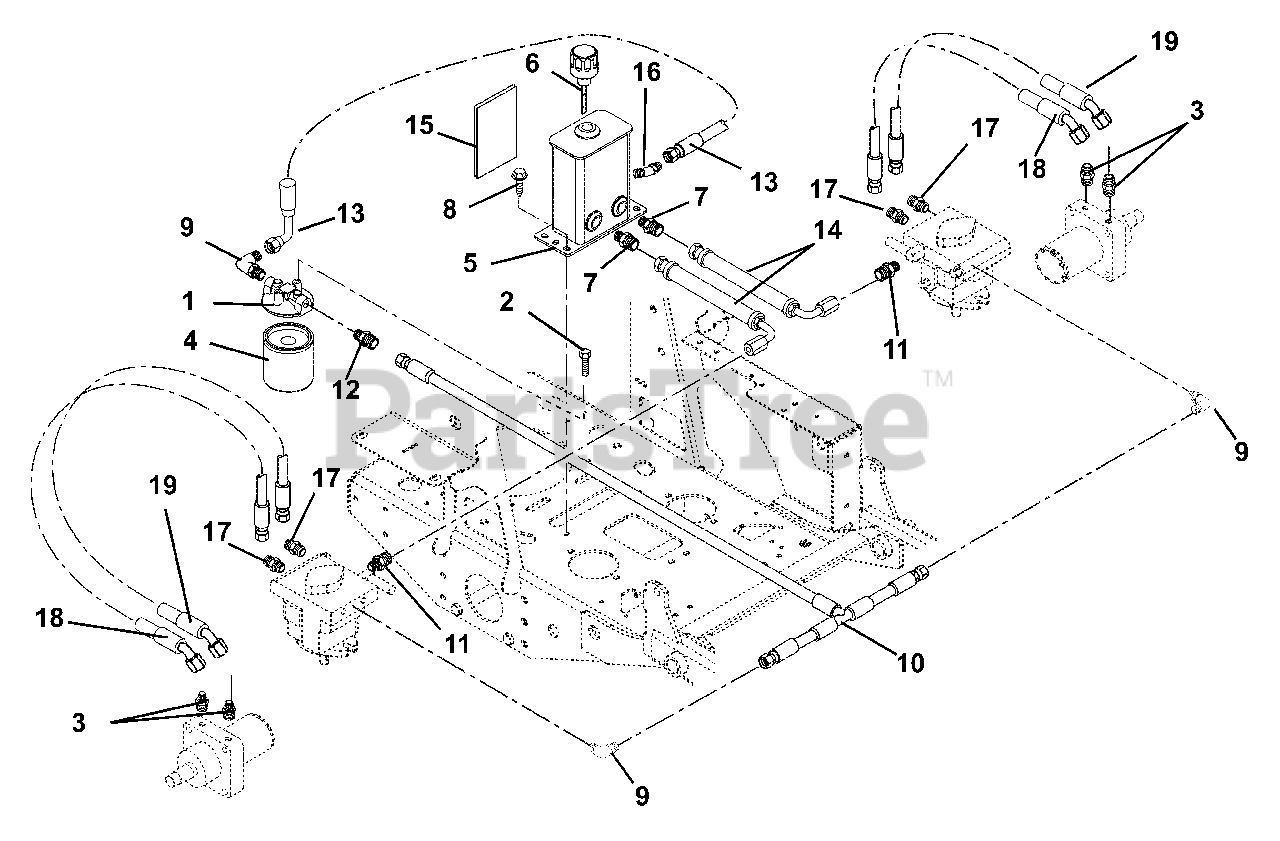

992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

Hydraulic Tank, Filter, Motors And Pump To Tank Circuit Parts Diagram

  • Title

1

Ariens 09072100

HEAD, FILTER

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Ariens 07062100

FTG, HYD STR M10O-M8F

$14.99

$

In Stock, only 1 left!

0

4

Ariens 09246900

ELEMENT, FILTER BE-40-0

$26.99

$

In Stock, only 2 left!

0

5

Ariens 00161051

WMT, HYDRAULIC TANK

$

$

Not available

6

Ariens 00346100

BREATHER, DIPSTICK
(Superseded to 09273900)

$77.99

$

In Stock, only 2 left!

0

7

Ariens 07000012

FTG, HYD STR M8O-M4F

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07063600

FITTING, HYD (6 C5OLO)

$34.99

$

In Stock, only 4 left!

0

10

Ariens 00277900

HOSE, TEE ASSM .38

$139.99

$

Usually ships in 4-12 days

0

11

Ariens 07063800

FITTING, HYD (4-6 F5OLO)

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 07064200

FITTING, HYD (6 F5OLO)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 00275400

HOSE, HYD .38-9-0K F6F0-F6F9

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 00275600

HOSE, HYD .25-3-0K F4F0-F4F9

$76.99

$

In Stock, only 3 left!

0

15

Ariens 09286900

SHEILD, HEAT 5.50X4.50

$20.99

$

Usually ships in 4-12 days

0

16

Ariens 07000011

FTG, HYD 45DEG M6F-M8O

$

$

Not available

17

Ariens 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.49

$

In Stock, only 4 left!

0

18

Ariens 00357300

HOSE,HYD .50-11-3K F8O0-F8O4

$103.99

$

In Stock, only 2 left!

0

19

Ariens 00357400

HOSE,HYD .50-12-3K F8O0-F8O4

$116.99

$

In Stock, only 2 left!

0
