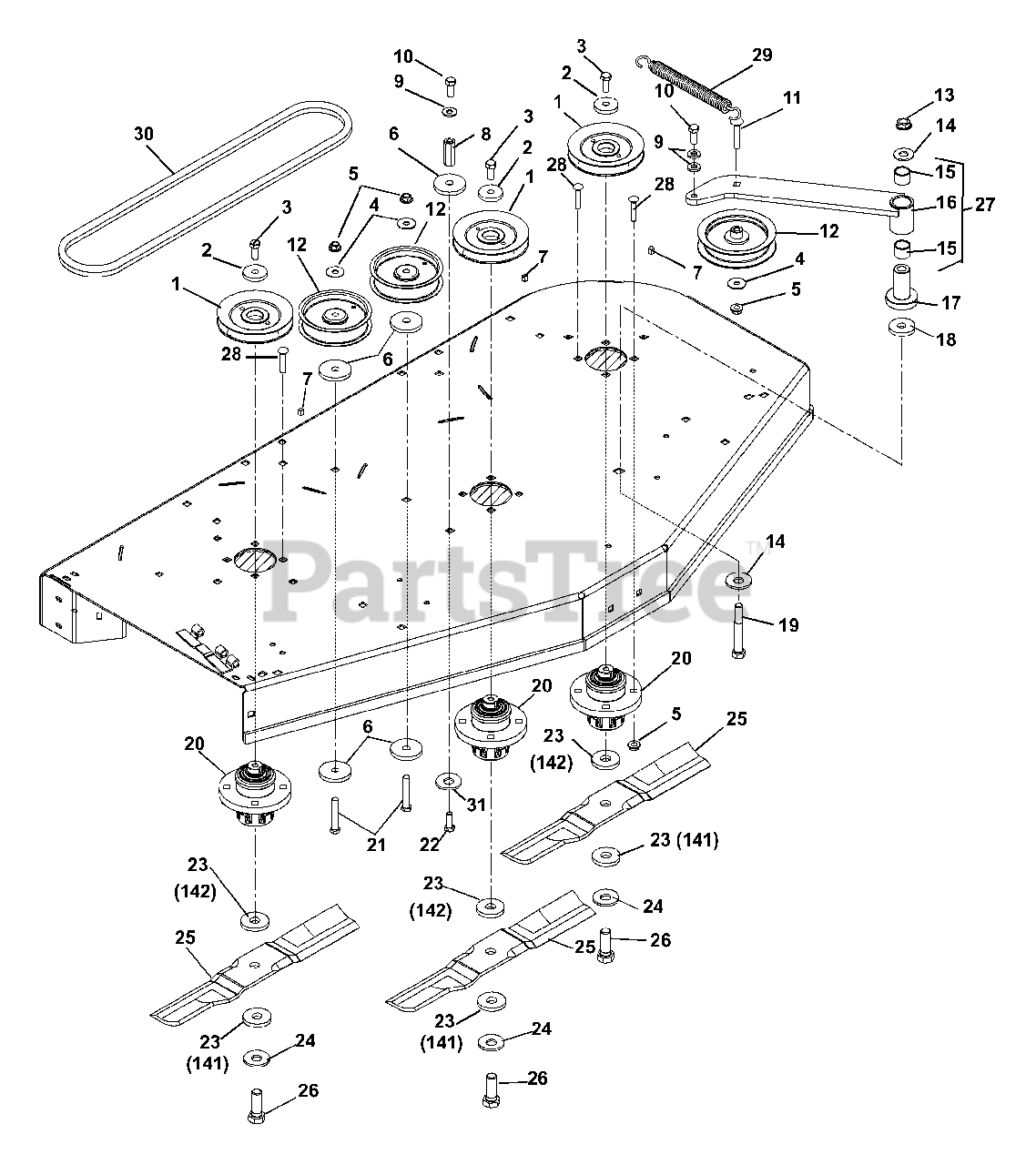

992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

2

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

3

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

7

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 2 left!

0

11

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

12

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, only 4 left!

0

16

Ariens 00373851

WMT, IDLER ARM

$129.99

$

Usually ships in 4-12 days

0

17

Ariens 07000031

BEARING, PEDESTAL

$80.99

$

In Stock, only 1 left!

0

18

Ariens 06400011

WASHER, FLAT .531X3.000X.25

$17.99

$

Usually ships in 4-12 days

0

19

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

20

Ariens 51510000

ASSEMBLY, SPINDLE

$216.99

$

In Stock, Qty 14

0

21

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

24

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

25

Ariens 04919100

BLADE, MOWER (16.19")

Note: (142)

$26.99

$

In Stock, Qty 20+

0

25

Ariens 01593900

BLADE, 15.50"

Note: (141)

$23.99

$

In Stock, Qty 20+

0

26

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

27

Ariens 00377500

ASSM, IDLER ARM

Note: (Contains items 17 & 18)

$118.99

$

Usually ships in 4-12 days

0

28

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 08300031

SPRING, EXTENSION (DECK IDLER)

Note: (Deck Idler)

$51.99

$

In Stock, only 1 left!

0

30

Ariens 07241600

V-BELT, HA-WRAPPED

$91.99

$

In Stock, only 1 left!

0

31

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0
