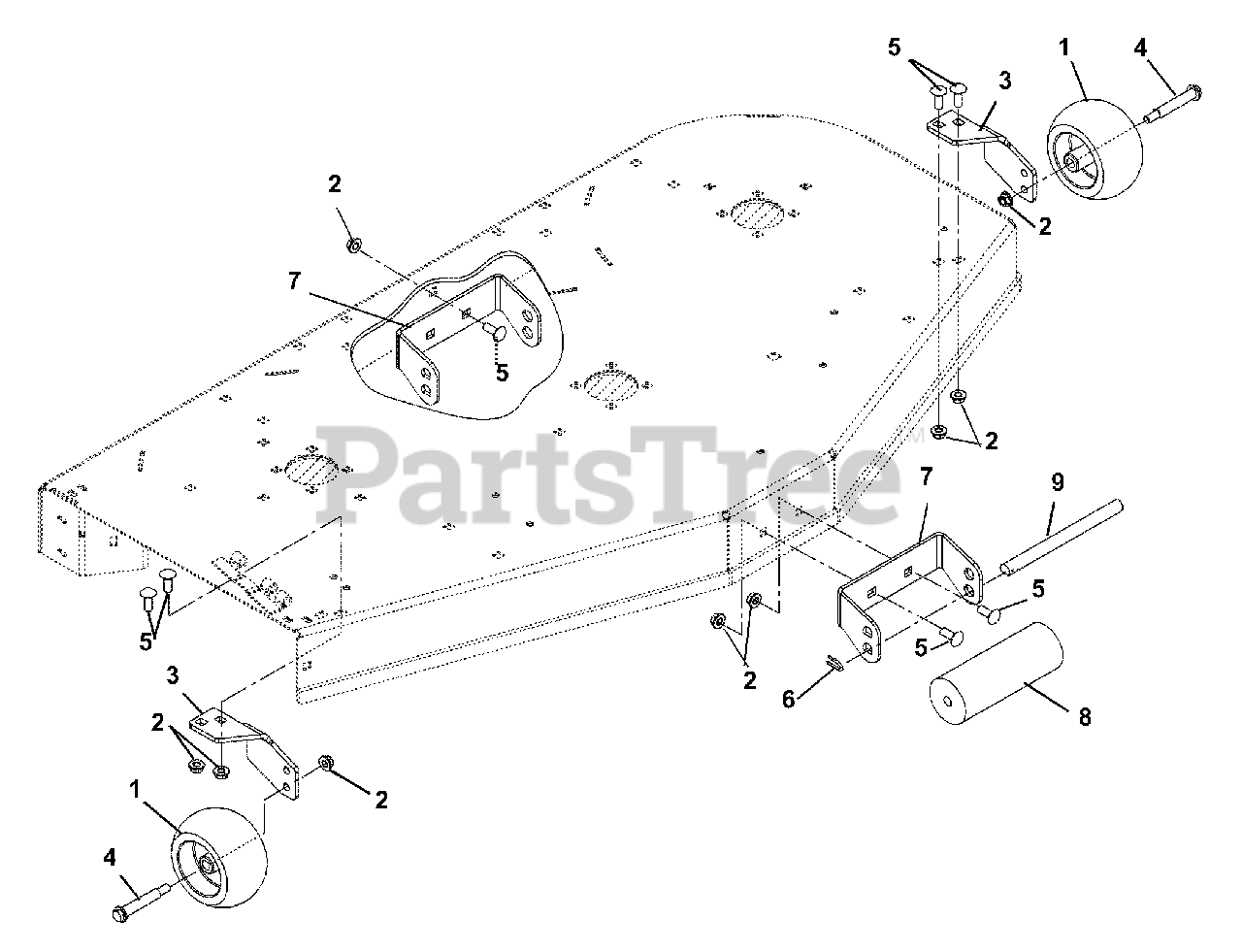

992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Antiscalp Rollers Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Antiscalp Rollers Parts Diagram

  • Title
1

Gravely 03471700

Wheel, 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

2

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01574851

Bracket, Anti Scalp
(Superseded to 02950351)

$29.99

$

In Stock, Qty 9

0

4

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

6

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

7

Gravely 00355651

Bracket, Roller Mount

$61.99

$

In Stock, only 4 left!

0

8

$22.99

$

In Stock, Qty 20+

0

9

Gravely 00356500

Pin, Roller

$34.99

$

In Stock, only 1 left!

0
