992139 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kawasaki LC (SN: 000101 & Above) Hood And Bumper Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kawasaki LC

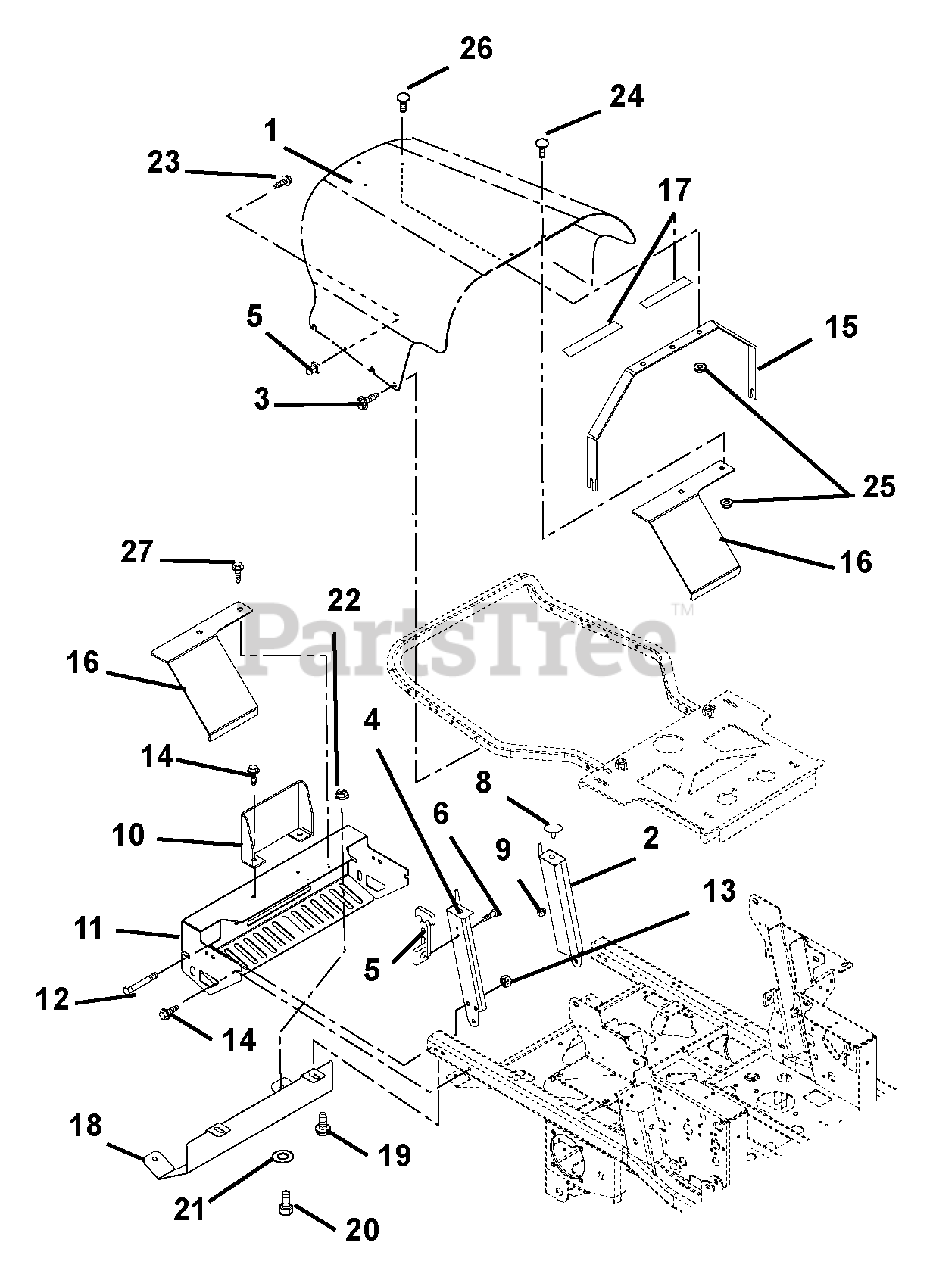

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

Hood

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$

$

Not available

1

Gravely 00470053

Hood
(Superseded to 00678653)

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$109.99

$

Usually ships in 4-12 days

0

2

Gravely 09275153

Weldment, Hood Support, Left Hand

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09227953

Weldment, Hood Support Right Hand

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

6

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07533600

Button Bumper

$11.99

$

In Stock, only 1 left!

0

9

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09229951

Guard, Muffler

$64.99

$

Usually ships in 4-12 days

0

11

Gravely 00463251

Bumper, Rear

$

$

Not available

12

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09295651

Hood Support

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$

$

Not available

15

Gravely 00483051

Hood Support

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$

$

Not available

16

Gravely 00355451

Guard

Note: (992113, 117, 124, 130, 134, 135, 139)

$24.99

$

Usually ships in 4-12 days

0

17

Gravely 00932300

VHB Tape 4941F

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00462251

Heat Shield

$103.99

$

Usually ships in 4-12 days

0

19

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head Thread Rolling YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06435900

Washer-Flat-Steel .438 x1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06118200

Screw-Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

Note: (992113, 117, 124, 130, 134, 135, 139)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

Note: (992130, 134, 135, 139 Serial Number 000200 and below; 992111, 115, 127, 128, 129, 131, 132, 133, 145 Serial Number 000201 and above)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

Note: (992113, 117, 124 Serial Number 000101 and above; 992130, 134, 135, 139 Serial Number 000201 and above)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

Note: (992113, 117, 124, 130, 134, 135, 139)

$0.99

$

In Stock, Qty 20+

0
