992126 (PM 272H XDZ) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Daihatsu LC

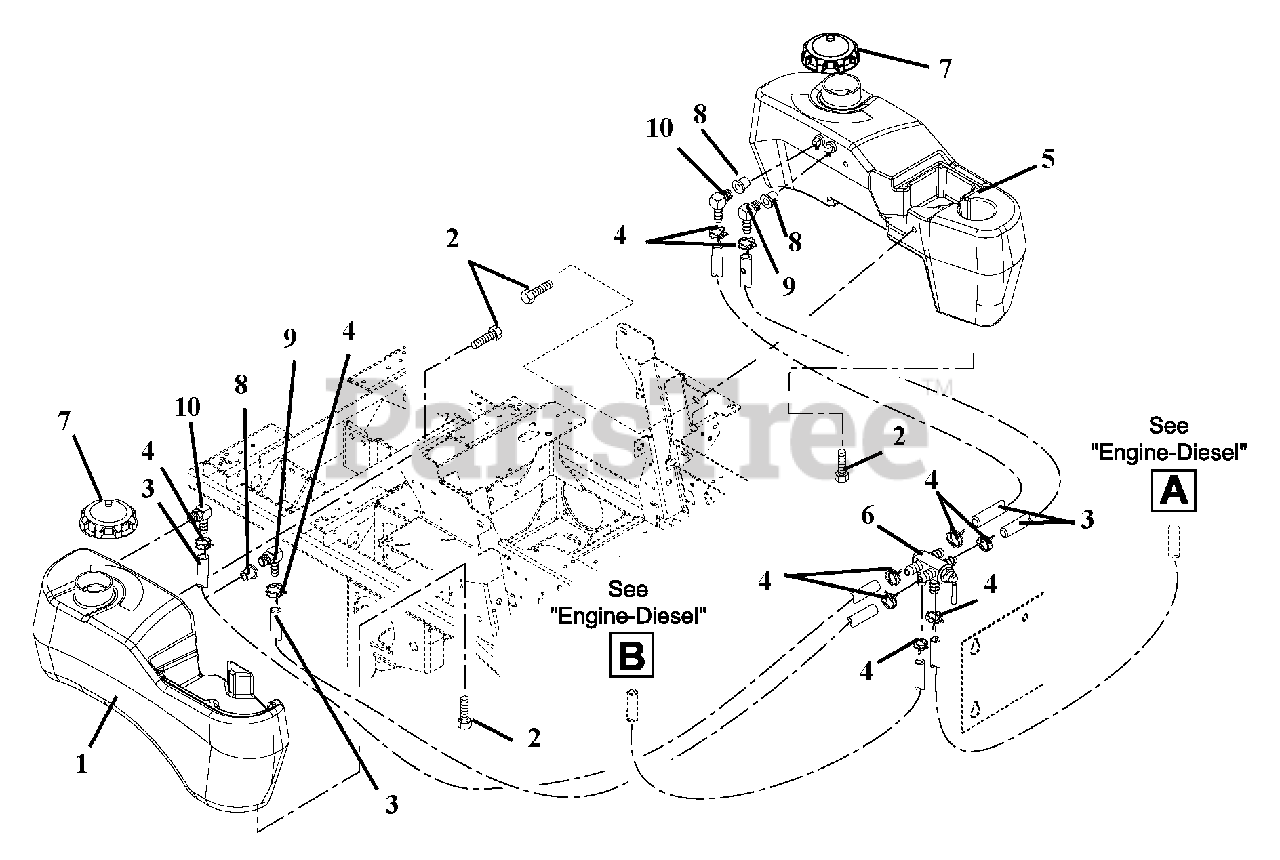

Fuel Tanks And Hoses Parts Diagram

  • Title
1

Gravely 00446200

Tank, Fuel-Right Hand
(Superseded to 04340000)

$271.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 048544

Hose, .31 ID
(Superseded to 00922600)

$

$

Not available

4

Gravely 06947900

Clamp, Hose Wire .52/.55

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 00199100

Tank, Left Hand Fuel (EYE-Q) 200 Series-EFI
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI

$249.99

$

Usually ships in 4-12 days

0

6

Gravely 09289600

Valve, Fuel

$

$

Not available

7

Gravely 09269100

Cap, Fuel

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 00387300

Grommet, Orange

$9.49

$

In Stock, Qty 20+

0

9

Gravely 21539100

Fitting, Tank

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 21537200

Fitting, Tank

$20.99

$

Usually ships in 4-12 days

0
