992099 (2148 XL) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

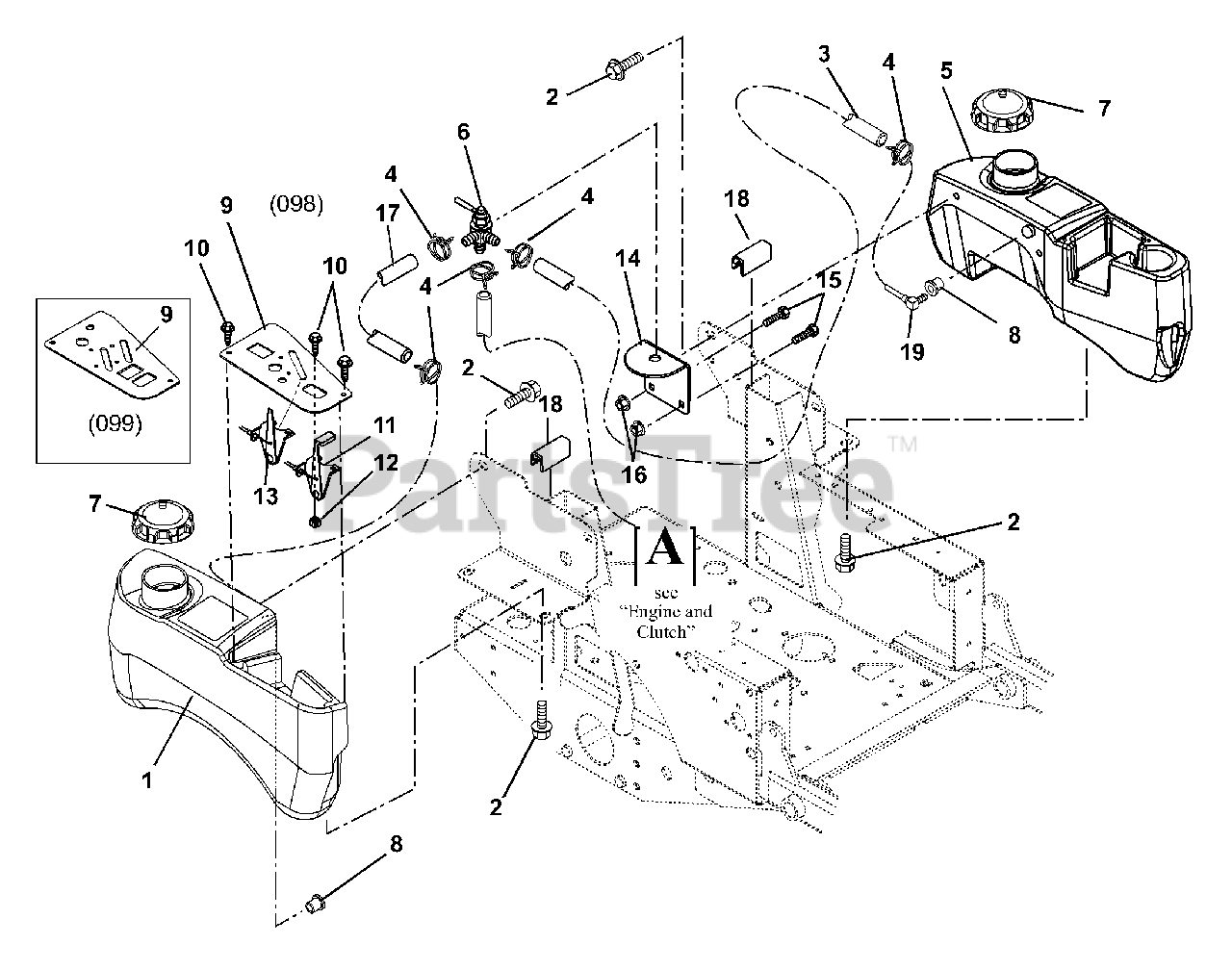

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Ariens 09298200

TANK, FUEL RH W/O HOSE

$

$

Not available

2

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

5

Ariens 00262700

TANK, LH FUEL CZ W/O HOSE

Note: (EYE-Q)

$

$

Not available

6

Ariens 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

7

Ariens 00273700

CAP - FUEL
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

8

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Black color will not replace orange color)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange color will not replace black color)

$9.49

$

In Stock, Qty 20+

0

9

Ariens 00257351

PANEL, CONTROL

Note: (992099)

$27.99

$

Usually ships in 4-12 days

0

9

Ariens 09299551

PANEL, CONTROL

Note: (992098)

$

$

Not available

10

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (992099)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (992098)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06900002

CABLE, THROTTLE-CHOKE

Note: (992099)

$51.99

$

In Stock, only 4 left!

0

12

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (992099)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (992098)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06949500

CABLE, CHOKE

Note: (992099)

$39.99

$

Usually ships in 4-12 days

0

13

Ariens 06900009

CABLE, CHOKE/THROTTLE

Note: (992098)

$

$

Not available

14

Ariens 00361951

BRKT, FUEL VALVE MNTG

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 21539100

FITTING, TANK ELBOW .31 HOSE

$14.99

$

Usually ships in 4-12 days

0
