992099 (2148 XL) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

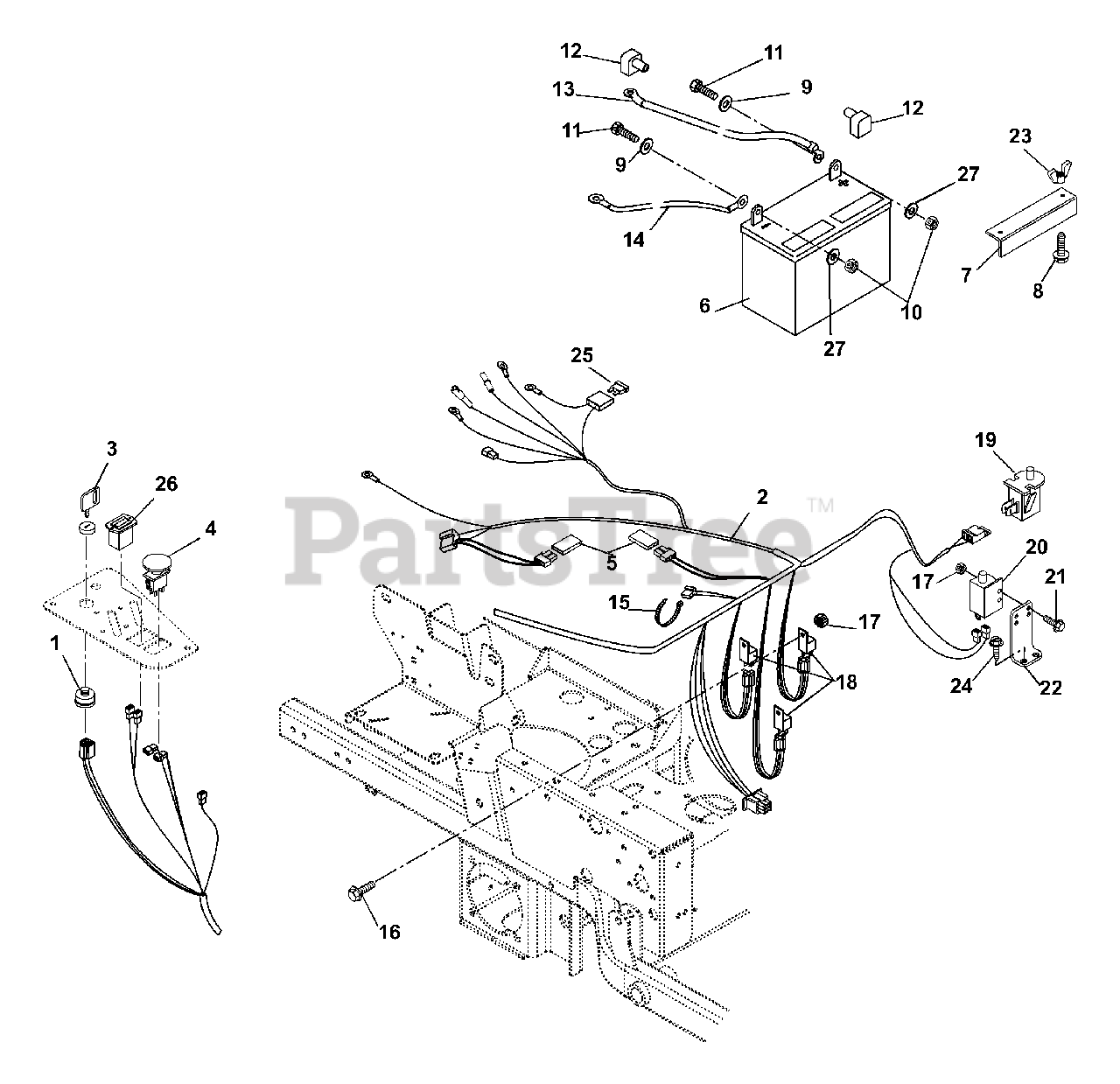

Electrical System Parts Diagram

  • Title

1

Ariens 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$43.99

$

In Stock, Qty 11

0

2

Ariens 00359400

HARNESS, IZ & MONST. EYE-Q
(Superseded to 00359401)

Note: (EYE-Q)

$387.99

$

Usually ships in 4-12 days

0

3

Ariens 09287000

KEY, W/ SHIELD

$14.99

$

In Stock, Qty 20+

0

4

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

6

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

7

Ariens 03494051

HOLD DOWN

Note: (015258 - Gravely Part Number)

$11.99

$

In Stock, only 2 left!

0

8

Ariens 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07505700

INSULATOR

Note: (039619 - Gravely Part Number)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 09295800

CABLE, POSITIVE BATTERY 26.00
(Superseded to 03288400)

$18.99

$

Usually ships in 4-12 days

0

14

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

Note: (042130 - Gravely Part Number)

$17.99

$

In Stock, only 2 left!

0

15

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (036313 - Gravely Part Number)

$

$

Not available

16

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 00432101

RELAY,SEALED W/DIODE

Note: (Included with Harness) (040216 - Gravely Part Number)

$22.99

$

In Stock, Qty 20+

0

19

Ariens 02754100

SWITCH- SNAP MTG N.O.

$9.49

$

In Stock, Qty 20+

0

20

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

21

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

22

Ariens 09282851

BRAKE SWITCH MOUNT - BLACK

$19.99

$

Usually ships in 4-12 days

0

23

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

24

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$

$

Not available

26

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

27

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0
