992098 (1844 XL) - Ariens Zoom 44" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Mounting Brackets Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Kohler

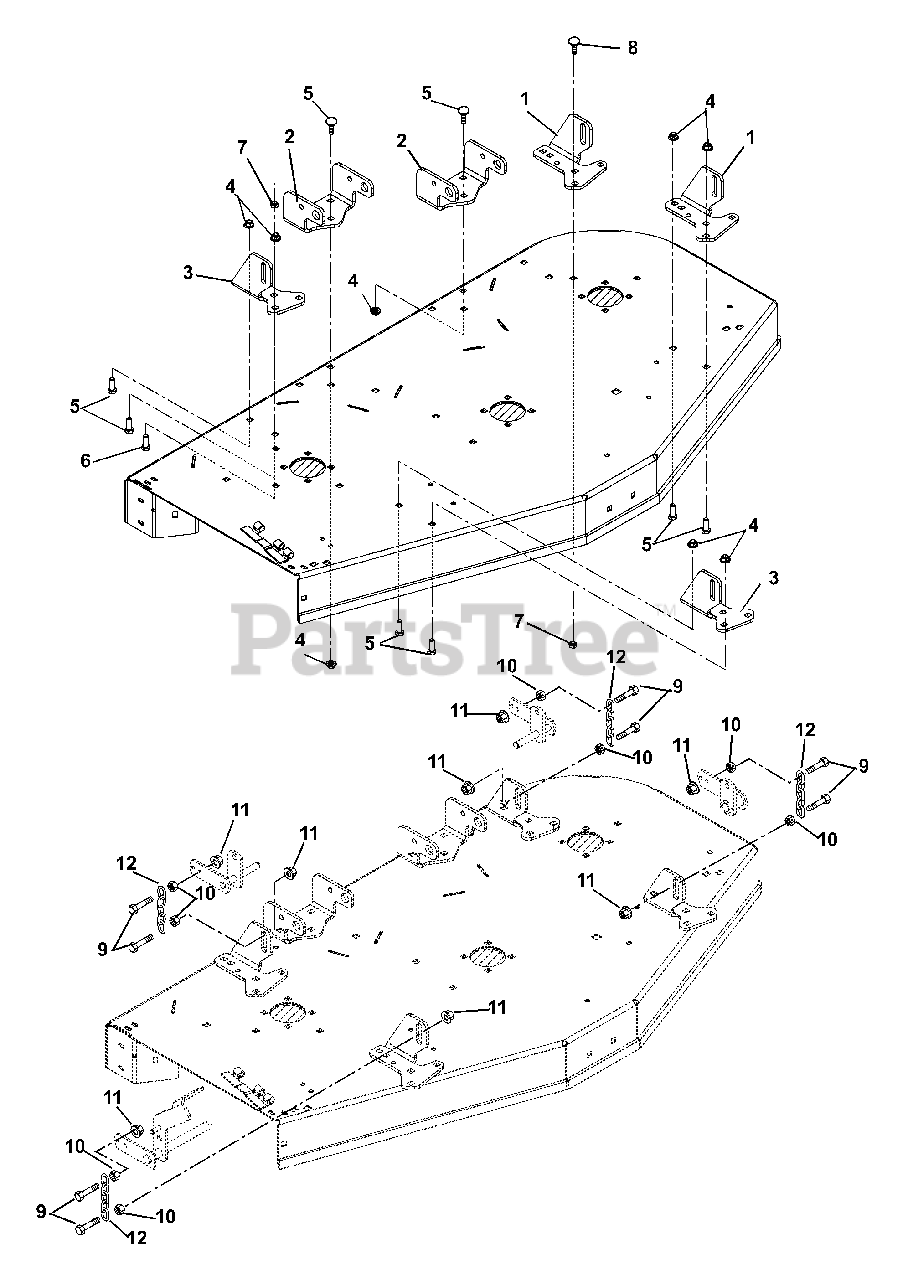

Mounting Brackets Parts Diagram

  • Title
1

Ariens 00362351

BRKT, DECK HANGING

$55.99

$

Usually ships in 4-12 days

0

2

Ariens 00345451

BRKT, DECK MOUNTING

$68.99

$

Usually ships in 4-12 days

0

3

Ariens 00345551

BRKT, DECK HANGING

$50.99

$

Usually ships in 4-12 days

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

6

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 05900006

BLT-HEX M12X1.75X55 GR5 YZ

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.49

$

In Stock, only 1 left!

0

11

Ariens 06500004

NUT-LK-TOP-FLG M12-1.75 YZ

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 09284700

CHAIN, LINK

$6.49

$

Usually ships in 4-12 days

0
