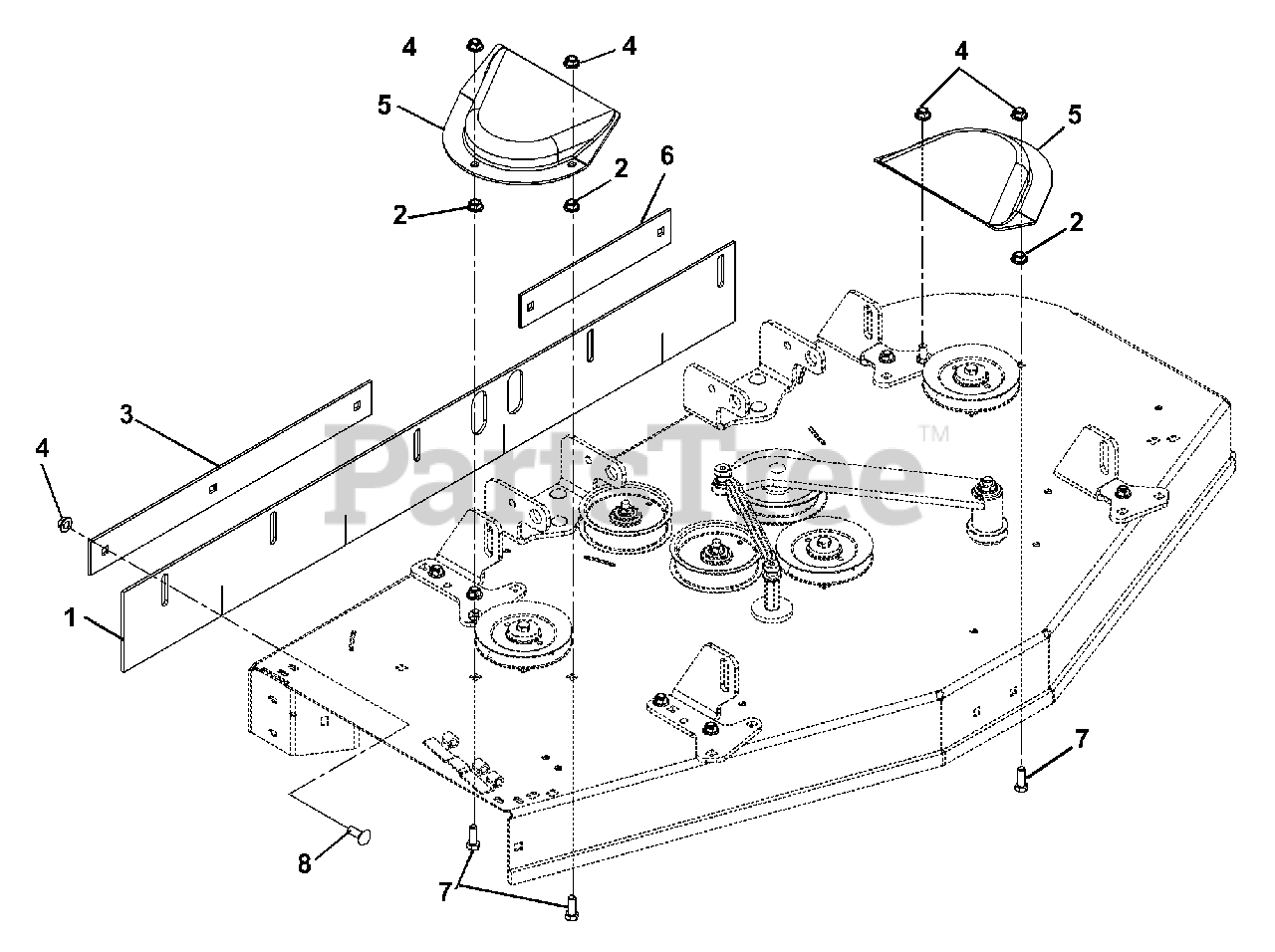

992098 (1844 XL) - Ariens Zoom 44" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Belt Guards And Scraper Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Kohler

Belt Guards And Scraper Parts Diagram

  • Title
1

Ariens 01577000

STRIPER, RUBBER-48"

Note: (099)

$82.99

$

Usually ships in 4-12 days

0

1

Ariens 01577500

STRIPER, RUBBER-44"

Note: (098)

$78.99

$

Usually ships in 4-12 days

0

2

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01577651

BAR, RETAINING STRIPER-44"

Note: (098)

$

$

Not available

3

Ariens 01577151

BAR, RETAINING STRIPER-48"

Note: (099)

$

$

Not available

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

$59.99

$

Usually ships in 4-12 days

0

6

Ariens 01577451

BAR, LH RETAINER STRIPER

$17.99

$

In Stock, only 1 left!

0

7

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0
