992093 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 005000 & Above) Seat Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

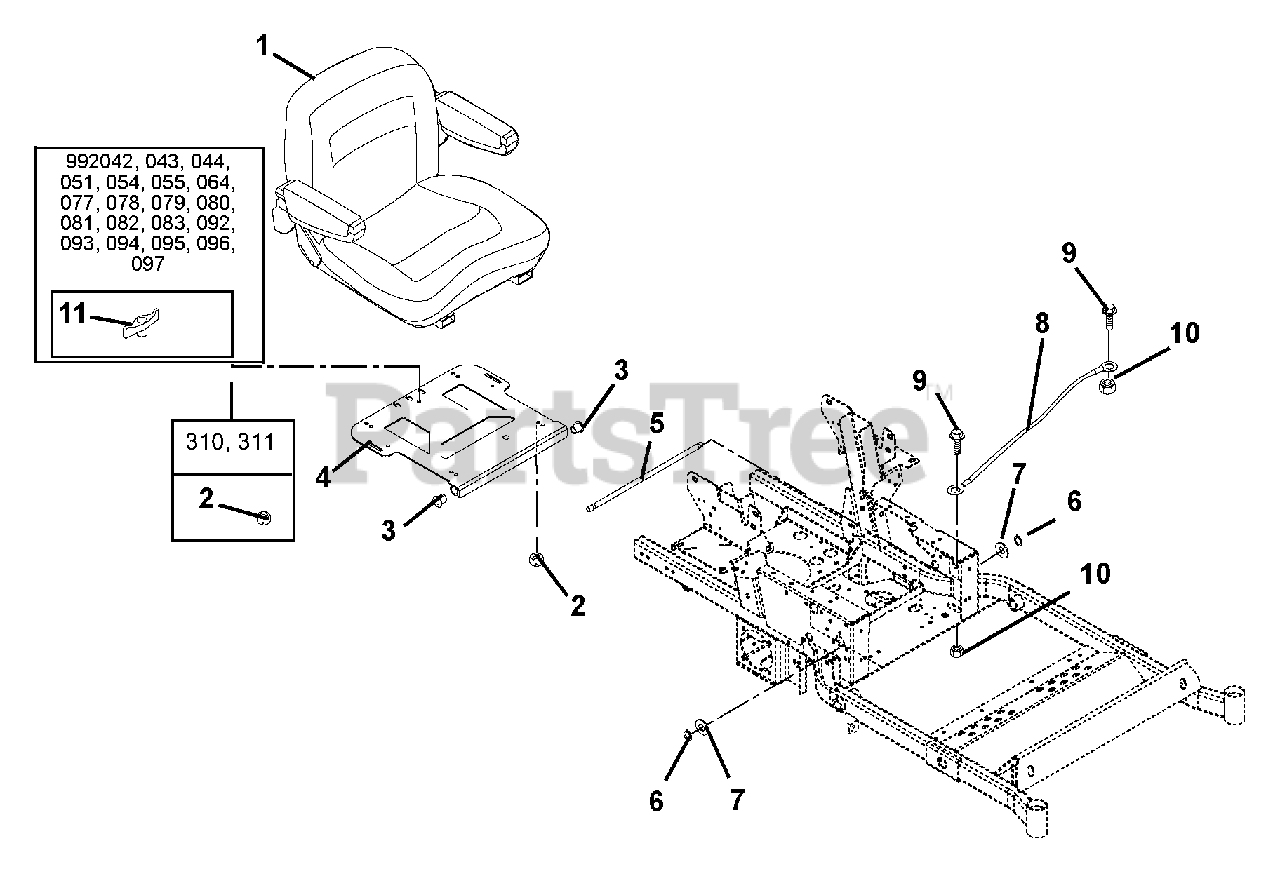

Seat Parts Diagram

  • Title

1

Gravely 09214500

Seat

$

$

Not available

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (992042, 043, 044, 051, 054, 055, 064, 077, 078, 079, 080, 081, 082, 083, 092, 093, 094, 095, 096, 097)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (992310, 311)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 034738

Bushing, Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 00164351

Seat Pivot Mount

$94.99

$

Usually ships in 4-12 days

0

5

Gravely 09282700

Rod, Seat Frame Pivot

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

7

Gravely 417098

Washer, Thrust .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 044486

Cable, Hood
(Superseded to 06927100)

$14.99

$

In Stock, only 1 left!

0

9

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

Note: (992042, 043, 044, 051, 054, 055, 064, 077, 078, 079, 080, 081, 082, 083, 092, 093, 094, 095, 096, 097)

$3.49

$

In Stock, Qty 20+

0
