992093 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 005000 & Above) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

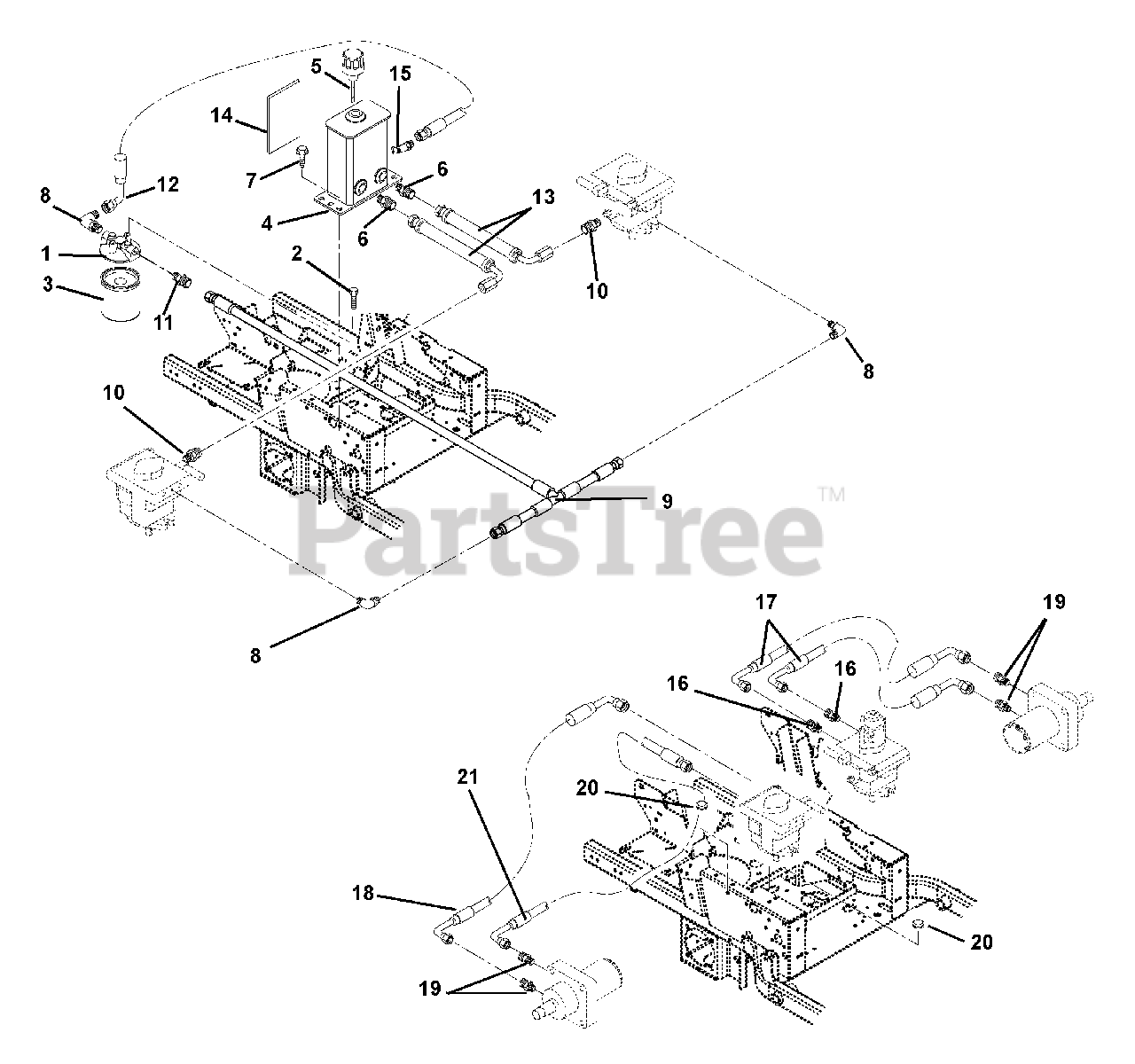

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title
1

Gravely 09072100

Head, Filter

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5 Epoxy
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 09246900

Oil Filter

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 00161051

Tank, Hydraulic

$

$

Not available

5

Gravely 00346100

Hydraulic Tank Dipstick
(Superseded to 09273900)

$45.99

$

In Stock, only 2 left!

0

6

Gravely 07000012

Fitting, Hydraulic Straight M8O-M4F

$

$

Not available

7

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07063600

Fitting, Hydraulic

$34.99

$

In Stock, only 4 left!

0

9

Gravely 00277900

Hose, Hydraulic

$139.99

$

Usually ships in 4-12 days

0

10

Gravely 07063800

Fitting, Hydraulic

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07064200

Fitting, Hydraulic

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 00275400

Hose, Hydraulic Valve To Tank

$68.99

$

Usually ships in 4-12 days

0

13

Gravely 00275600

Hose, Hydraulic

$76.99

$

In Stock, only 3 left!

0

14

Gravely 09286900

Shield, Heat 5.50 x 4.50

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 07000011

Fitting, Hydraulic 45 Degree

$

$

Not available

16

Gravely 07059900

Adapter, Hydraulic

$9.49

$

In Stock, only 4 left!

0

17

Gravely 09281800

Hose, Hydraulic

$177.99

$

Usually ships in 4-12 days

0

18

Gravely 09281700

Hose, Hydraulic

$174.99

$

In Stock, only 1 left!

0

19

Gravely 07062100

Adapter, Hydraulic

$14.99

$

In Stock, only 1 left!

0

20

Gravely 052579

Grommet, 1.25
(Superseded to 07536800)

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 09269600

Hose, Hydraulic

$155.99

$

Usually ships in 4-12 days

0
