992088 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 - 000500) Brakes Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

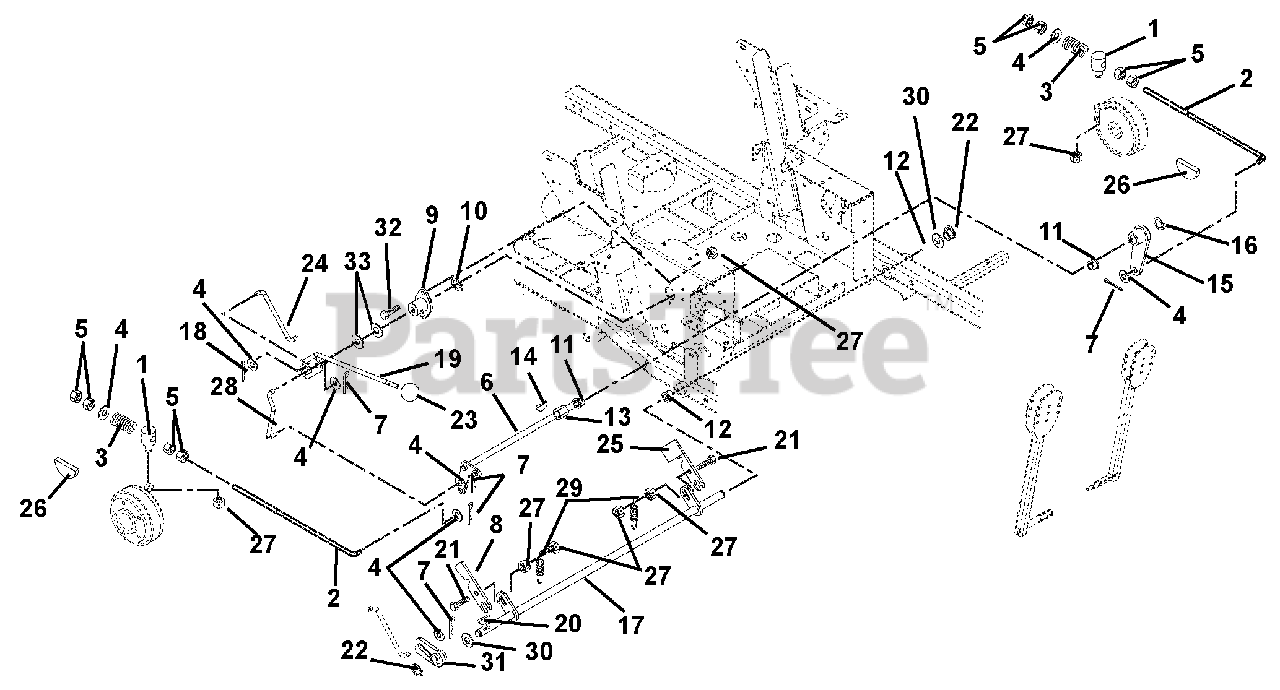

Brakes Parts Diagram

  • Title

1

Gravely 09267300

Pivot, Brake Rod

$6.99

$

In Stock, only 1 left!

0

2

Gravely 09289300

Rod, Brake .38 x 19.00

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 08328500

Spring, Compression .143 x .71 x 2.00

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00258800

Shaft, Brake Cross

$112.99

$

Usually ships in 4-12 days

0

7

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09267700

Slide, Interlocking Brake

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 05534700

Bushing, Flange

$21.99

$

In Stock, only 2 left!

0

10

Gravely 05709200

Ring, Retaining External .625 x .05

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 05518400

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

12

Gravely 034738

Bushing, Flange .515 x .75 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 05500900

Bushing, Sleeve .75 x 1.00 x .75

$9.99

$

Usually ships in 4-12 days

0

14

Gravely 124549

Key, Woodruff .19 x .75 Hard #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00258600

Arm, Brake Left Hand

$77.99

$

Usually ships in 4-12 days

0

16

Gravely 05714600

Ring, Retaining External .625 x .050

$2.49

$

In Stock, Qty 5

0

17

Gravely 09268000

Weldment, Mechanical Brake

$187.99

$

In Stock, only 1 left!

0

18

Gravely 06706900

Pin, Cotter External .09 x .75

$0.99

$

In Stock, Qty 10

0

19

Gravely 00277400

Weldment, Brake Actuating

$85.99

$

Usually ships in 4-12 days

0

20

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

21

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

22

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

In Stock, Qty 8

0

23

Gravely 039360

Knob, Steering Lock
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

24

Gravely 09268400

Linkage, Brake Actuating

$30.99

$

In Stock, only 1 left!

0

25

Gravely 09275900

Interlock, Safety Switch

$17.99

$

Usually ships in 4-12 days

0

26

Gravely 09200600

Pad, Disk Brake

$59.99

$

In Stock, only 2 left!

0

27

Gravely 06543100

Nut, Locking, Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 09268300

Linkage, Brake Actuating

$34.99

$

Usually ships in 4-12 days

0

29

Gravely 08314100

Spring, Tension .063 x .44 x 1.56

$5.99

$

In Stock, Qty 8

0

30

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09268100

Weldment, Parking Brake Hub

$190.99

$

Usually ships in 4-12 days

0

32

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06545100

Washer, Flat Steel .630 x 1.250 x .062
(Superseded to 00548400)

$1.49

$

In Stock, only 2 left!

0
