992083 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 000500 - 004999) Engine And Clutch Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

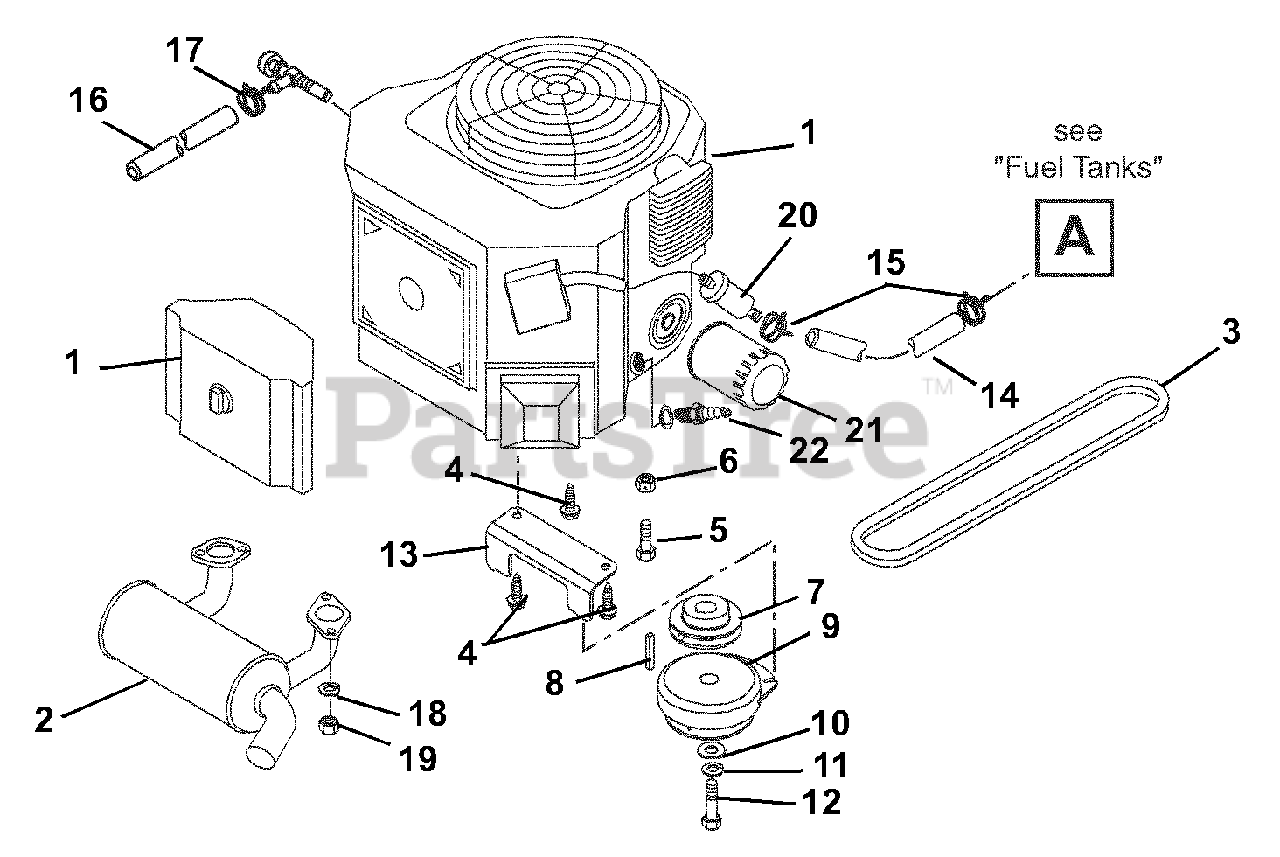

Engine And Clutch Parts Diagram

  • Title
1

Gravely 08200012

Engine, 17HP FH500V Kawasaki

$

$

Not available

2

Gravely 09298000

Muffler, Kawasaki

$236.99

$

Usually ships in 4-12 days

0

3

Gravely 07218000

V-Belt HA 52 x .535 G48667
(Superseded to 07200428)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07328200

Pulley, V 4.00 x 1.00

$79.99

$

In Stock, only 2 left!

0

8

Gravely 039160

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035
(Superseded to 06602700)

$3.99

$

In Stock, Qty 5

0

9

Gravely 04915400

Clutch, Electric

$465.99

$

In Stock, only 2 left!

0

10

Gravely 06443600

Washer-Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 04923551

Bracket, Clutch
(Superseded to 03292451)

$31.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

Hose, Gas Line 35"- .25" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 10

0

16

Gravely 00172900

Hose, .50 x 6.00

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

18

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

Note: (Included with item 1)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06538600

Nut, Hex M8-1.25

Note: (Included with item 1)

$

$

Not available

20

Gravely 21410800

Fuel Filter, Kawasaki
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

21

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

22

Gravely 21536100

Spark Plug, Kawasaki

$3.49

$

In Stock, only 1 left!

0
