992082 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000500 - 003999) Rollers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

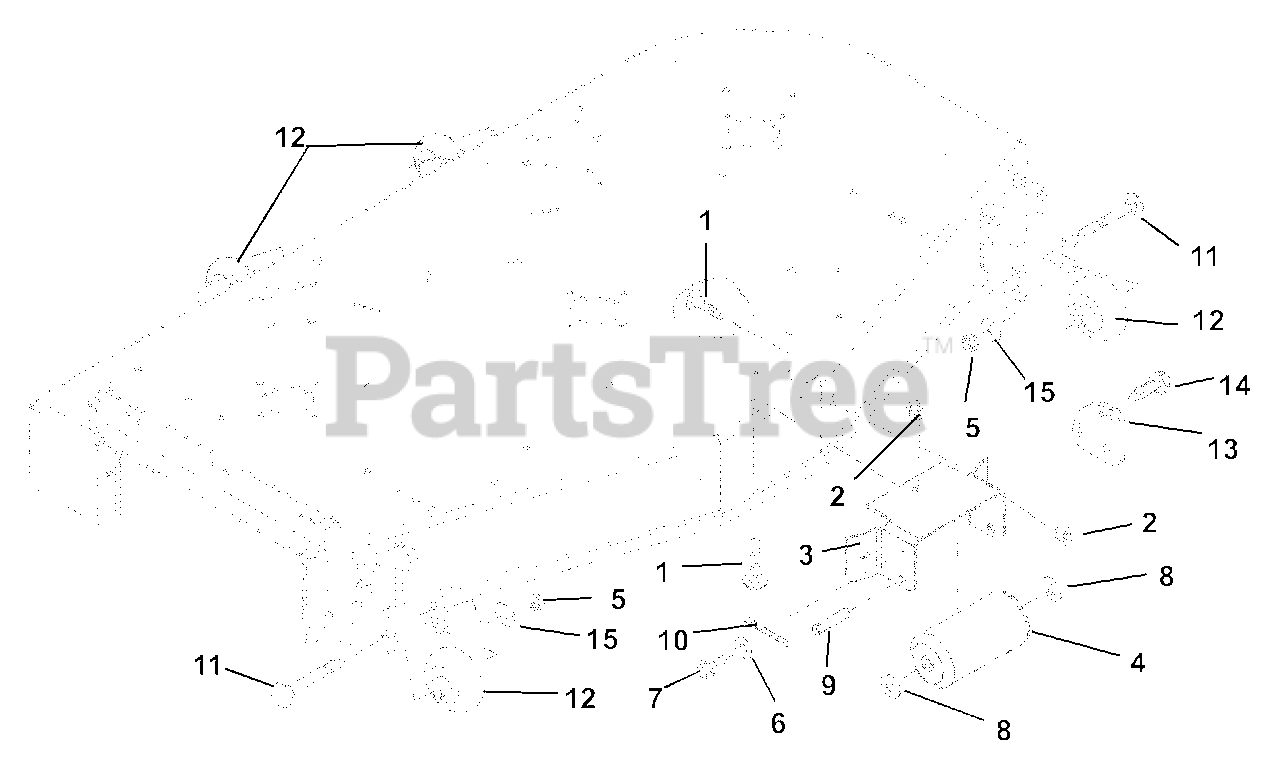

Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5 (064, 077, 078,
(Superseded to 06200313)

Note: 079, 081, 083, 310, 311)

$2.49

$

In Stock, Qty 10

0

1

Gravely 06221400

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 2
(Superseded to 06224100)

Note: (080, 082)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 06542000

Nut, Locking Top Flange, .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04920853

Bracket, Anti-Scalp Roller

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 09078100

Roller

$47.99

$

In Stock, only 1 left!

0

5

Gravely 06540600

Nut, Locking Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07414200

Screw, Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

8

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 09075300

Pin

$38.99

$

In Stock, only 1 left!

0

10

Gravely 06713100

Pin, Cotter .25 x 2.0
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 09253700

Wheel, 3 x 5

$14.99

$

In Stock, Qty 6

0

13

Gravely 09290353

Anti-Scalp Washer

$12.99

$

In Stock, only 1 left!

0

14

Gravely 07401900

Screw, Tapping .25-20 x .62 Hex Washer Head
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

15

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
