992080 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki (SN: 000500 - 003999) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki

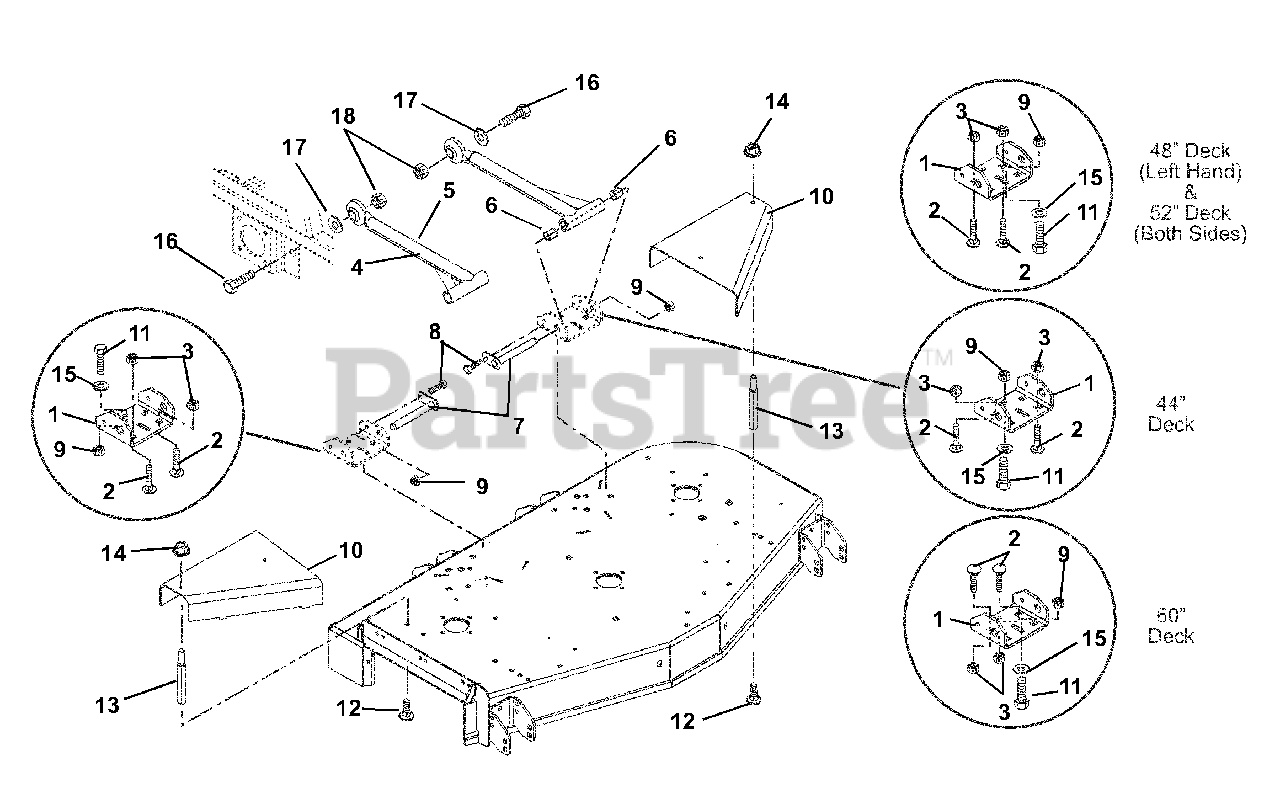

Mounting Arms And Belt Guards Parts Diagram

  • Title
1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 06221200

Bolt, Round Head Square Neck .50-13 x .75 Grade 5

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.49

$

In Stock, only 3 left!

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Mower Mounting Arm

$

$

Not available

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 3 left!

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

8

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09246253

Guard, Pulley Left Hand (079, 081)

Note: (079, 081)

$51.99

$

In Stock, only 2 left!

0

10

Gravely 09246353

Guard, Pulley Right Hand (079, 081)

Note: (079, 081)

$68.99

$

Usually ships in 4-12 days

0

10

Gravely 09240853

Guard, Pulley Left Hand (080, 082)
(Superseded to 09240851)

Note: (080, 082)

$62.99

$

Usually ships in 4-12 days

0

10

Gravely 09240753

Guard, Pulley Right Hand (080, 082)
(Superseded to 09240751)

Note: (080, 082)

$46.99

$

In Stock, only 2 left!

0

10

Gravely 09283553

Guard, Pulley (064, 077, 083, 310)

Note: (064, 077, 083, 310)

$

$

Not available

11

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 00271200

Standoff, 2.75 x .312-18

$34.99

$

In Stock, only 2 left!

0

14

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$7.99

$

In Stock, only 1 left!

0

17

Gravely 06444700

Washer, Flat Steel .875 x 1.50 x .120
(Superseded to 06401207)

$3.99

$

In Stock, Qty 16

0

18

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, Qty 11

0
