992078 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000500 - 003999) Transmission Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

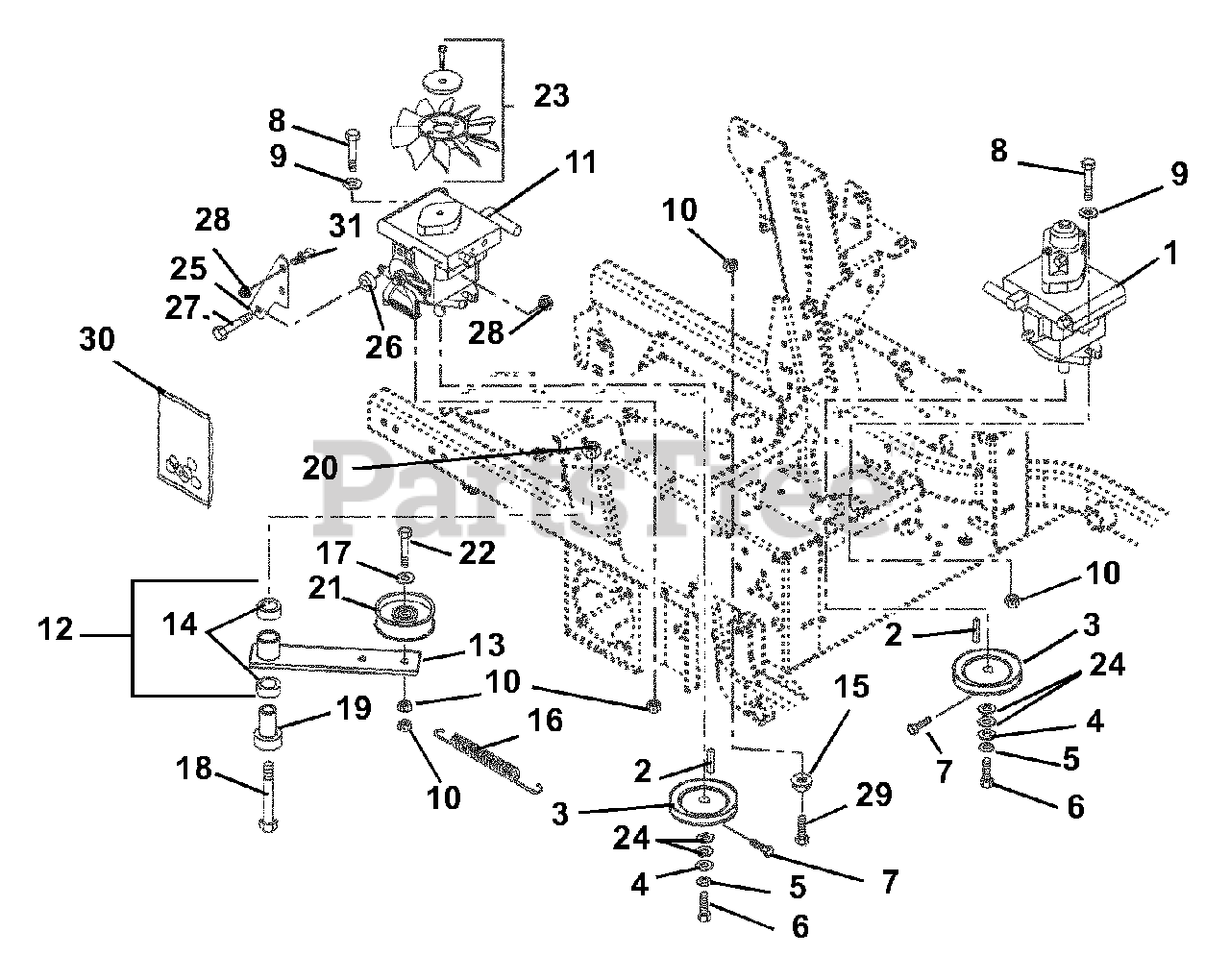

Transmission Parts Diagram

  • Title

1

Gravely 09285100

Hydrostat BDP with Auxiliary (077, 078, 179, 080, 081, 082, 310, 311)

Note: (077, 078, 179, 080, 081, 082, 310, 311)

$1318.99

$

Usually ships in 4-12 days

0

1

Gravely 09297600

Pump, Hydraulic BDP-10A Left Hand (064, 083)

Note: (064, 083)

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

Key, Straight 5mm x 25mm x 5mm
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

4

Gravely 416904

Washer, Flat Steel .281 x 1.00 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05969800

Bolt, Hex M6 x 1.0 x 12

$1.99

$

In Stock, Qty 14

0

7

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06444300

Washer, Flat Steel .39 x .75 x .125

$7.99

$

In Stock, Qty 8

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09285200

Pump

$1047.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 13 & 14)

$100.99

$

In Stock, only 1 left!

0

13

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

15

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 08336000

Spring, Tension .120 x .845 x 6.50
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

Washer, Flat Steel .39 x.75 x.125

$7.99

$

In Stock, Qty 8

0

18

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

19

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07327500

Idler, Flat 4.00 x 1.06

$45.99

$

Usually ships in 4-12 days

0

22

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 09274900

Fan, Cooling

$33.99

$

In Stock, only 4 left!

0

24

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 09282900

Bracket, Return to Neutral/Damper

$7.99

$

Usually ships in 4-12 days

0

26

Gravely 02513500

Spacer .344 x 1.00 x .375

$

$

Not available

27

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

28

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05961100

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 59203600

Kit, Pump Seal (BDP-10A)

Note: (One kit required for each pump)

$77.99

$

Usually ships in 4-12 days

0

31

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0
