992078 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000500 - 003999) Deck Lift Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

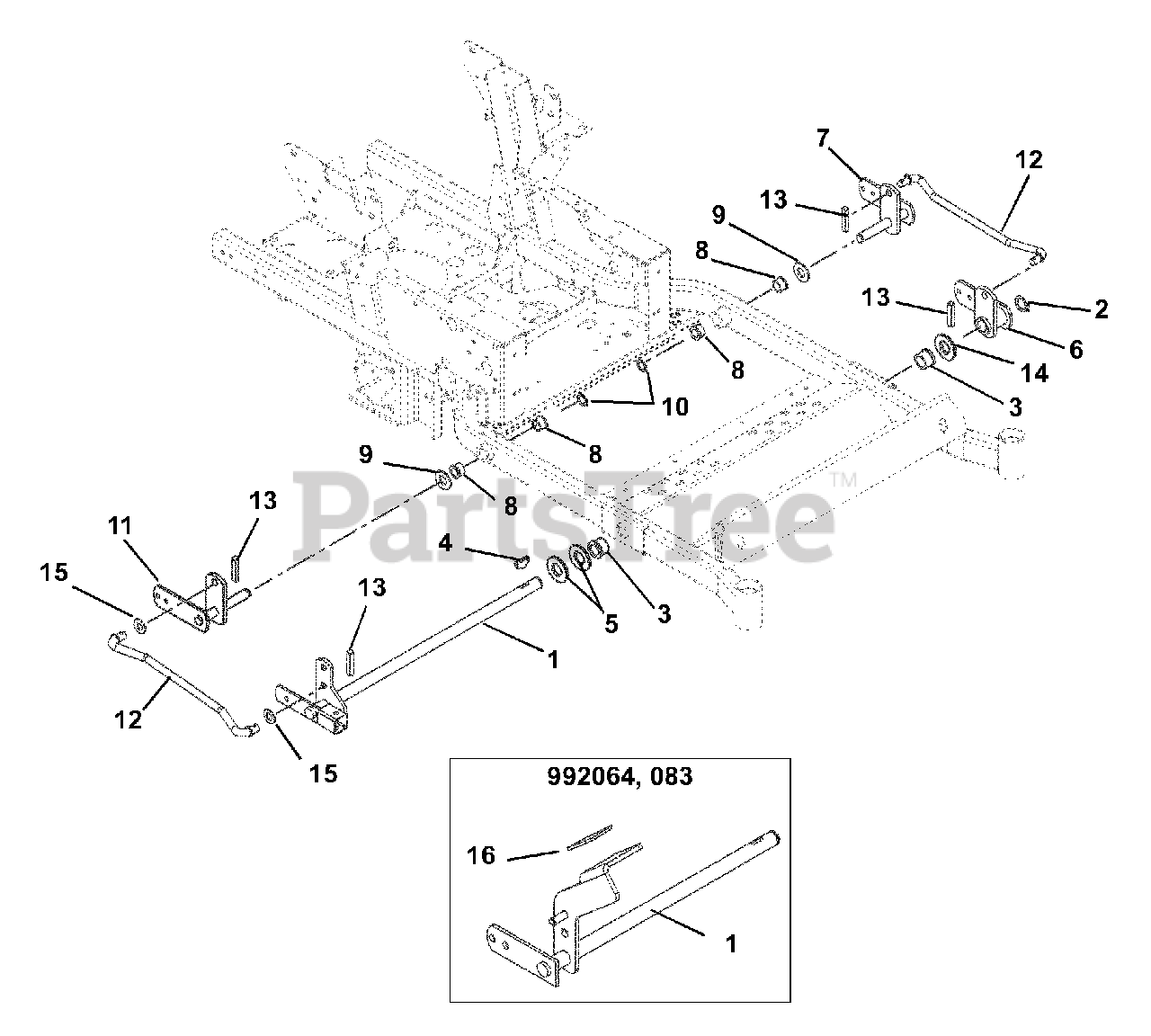

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

Weldment, Lift Arm (077, 078, 079, 080, 081, 082, 310, 311)

Note: (077, 078, 079, 080, 081, 082, 310, 311)

$297.99

$

Usually ships in 4-12 days

0

1

Gravely 00183700

Weldment, Lift Arm (064, 083)

Note: (064, 083)

$

$

Not available

2

Gravely 050203

Ring, Retaining External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

3

Gravely 018355

Bushing, Flange Nylon 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

4

Gravely 124553

Key, Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

5

Gravely 06443000

Washer, Flat Steel 1.063 x 2.00 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 09289800

Lift Arm - Front

$180.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

Lift Arm Shaft - Left Hand

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing, Flange Nylon .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer, Hardened Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

Ring, Retaining External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

11

Gravely 09289900

Lift Arm Shaft - Right Hand

$

$

Not available

12

Gravely 00164700

Rod, Lift Assist
(Superseded to 04063000)

$

$

Not available

13

Gravely 05800700

Pin, Roll .25 x 1.25

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 00270100

Grip, Pedal (064, 083)

Note: (064, 083)

$3.49

$

In Stock, Qty 5

0
