992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000499) Seat And Hood Frame Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

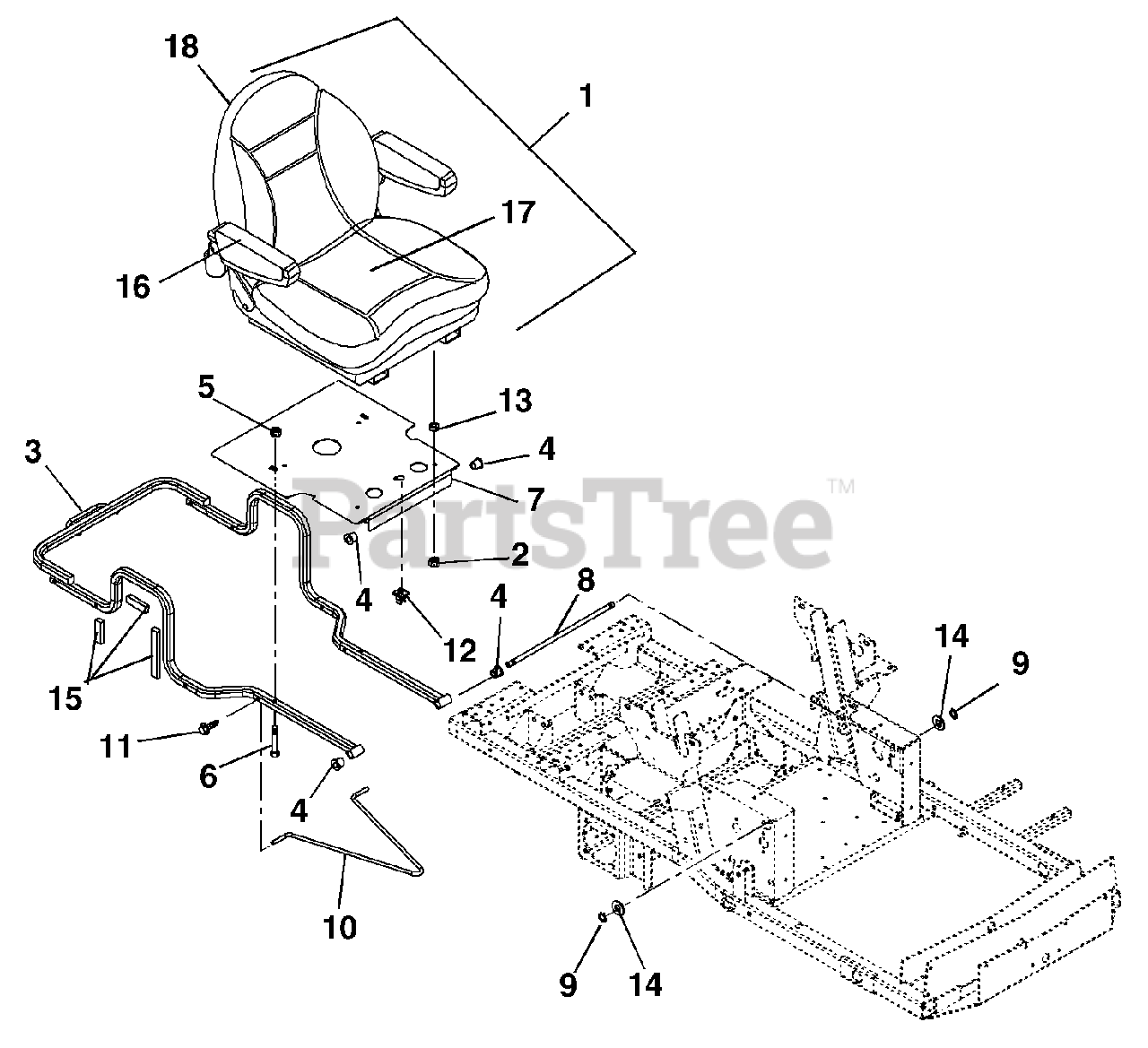

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09293000

Seat, Suspension
(Superseded to 03947200)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09278753

Weldment, Hood Frame

$517.99

$

Usually ships in 4-12 days

0

4

Gravely 034738

Bushing, Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

7

Gravely 09274151

Weldment, Seat Pivot Mount

$142.99

$

Usually ships in 4-12 days

0

8

Gravely 09245400

Rod, Seat Frame Pivot

$129.99

$

Usually ships in 4-12 days

0

9

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

10

Gravely 09258500

Rod, Prop

$

$

Not available

11

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07534100

Clip

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 039145

Bushing, Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

14

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 00932300

Tape, VHB

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 59204500

Kit, Arm Pad (1 per bag)

Note: (1 per bag)

$

$

Not available

17

Gravely 59204400

Kit, Seat Cushion

$230.99

$

Usually ships in 4-12 days

0

18

Gravely 59204300

Kit, Back Cushion

$362.99

$

Usually ships in 4-12 days

0
