992070 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki (SN: 004001 & Above) Deck Lift Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki

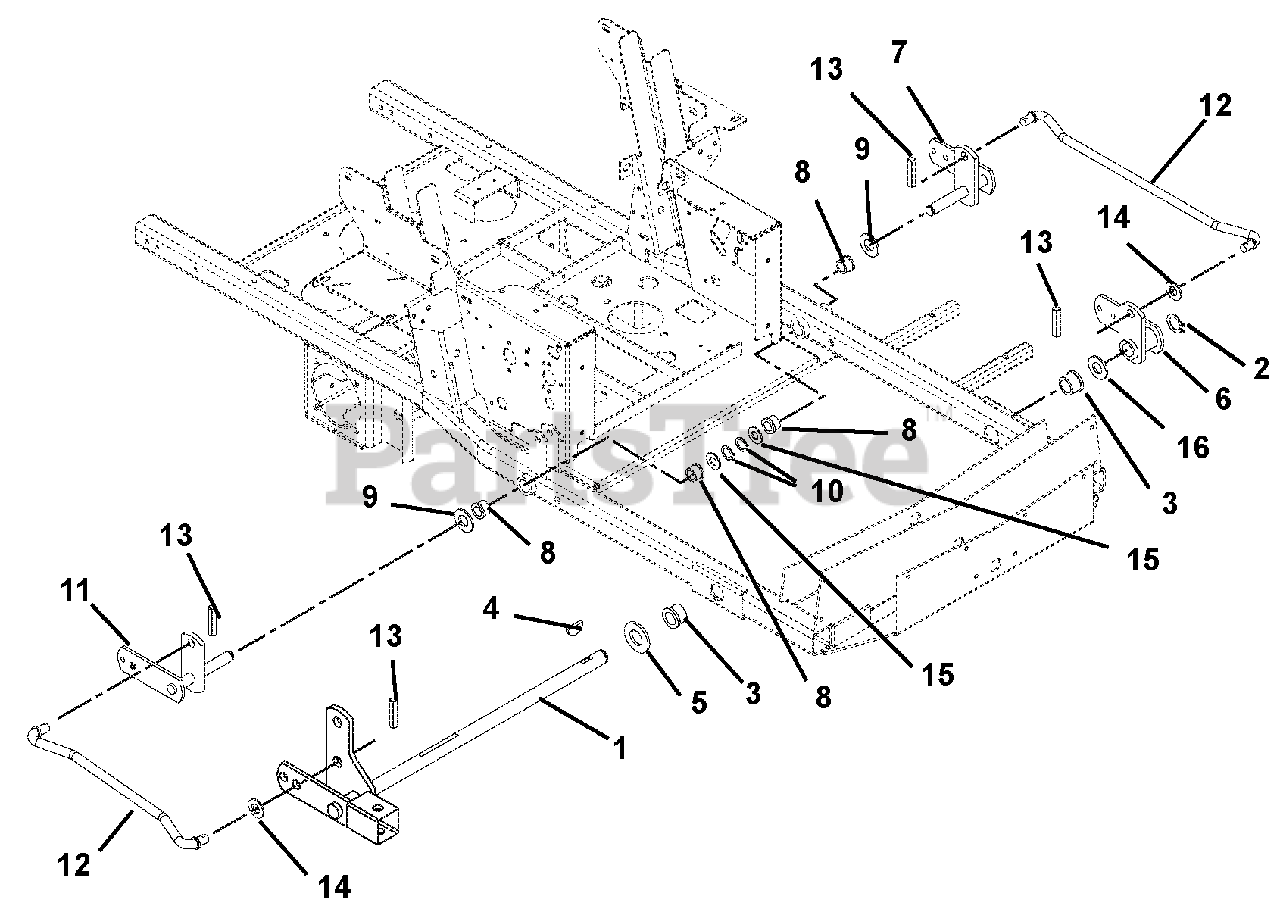

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

Lift, Mower

$297.99

$

Usually ships in 4-12 days

0

2

Gravely 050203

Ring, Retaining External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

3

Gravely 018355

Bushing, Flange Nylon 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

4

Gravely 124553

Key, Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

5

Gravely 103348

Washer, Flat Steel 1.063 x 2.00 x .134
(Superseded to 06428500)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 09289800

Weldment, Lift Arm Front

$180.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

Weldment, Lift Arm Shaft Left Hand

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing, Flange Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer, Hardened Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

Ring, Retaining External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

11

Gravely 09289900

Weldment, Lift Arm Shaft Right Hand

$

$

Not available

12

Gravely 00185800

Rod, Lift Assist
(Superseded to 04063100)

$68.99

$

In Stock, only 2 left!

0

13

Gravely 05800001

Pin-Roll .250 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

Washer-Flat-Steel .630 x 1.25 x .062

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

16

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 3 left!

0
