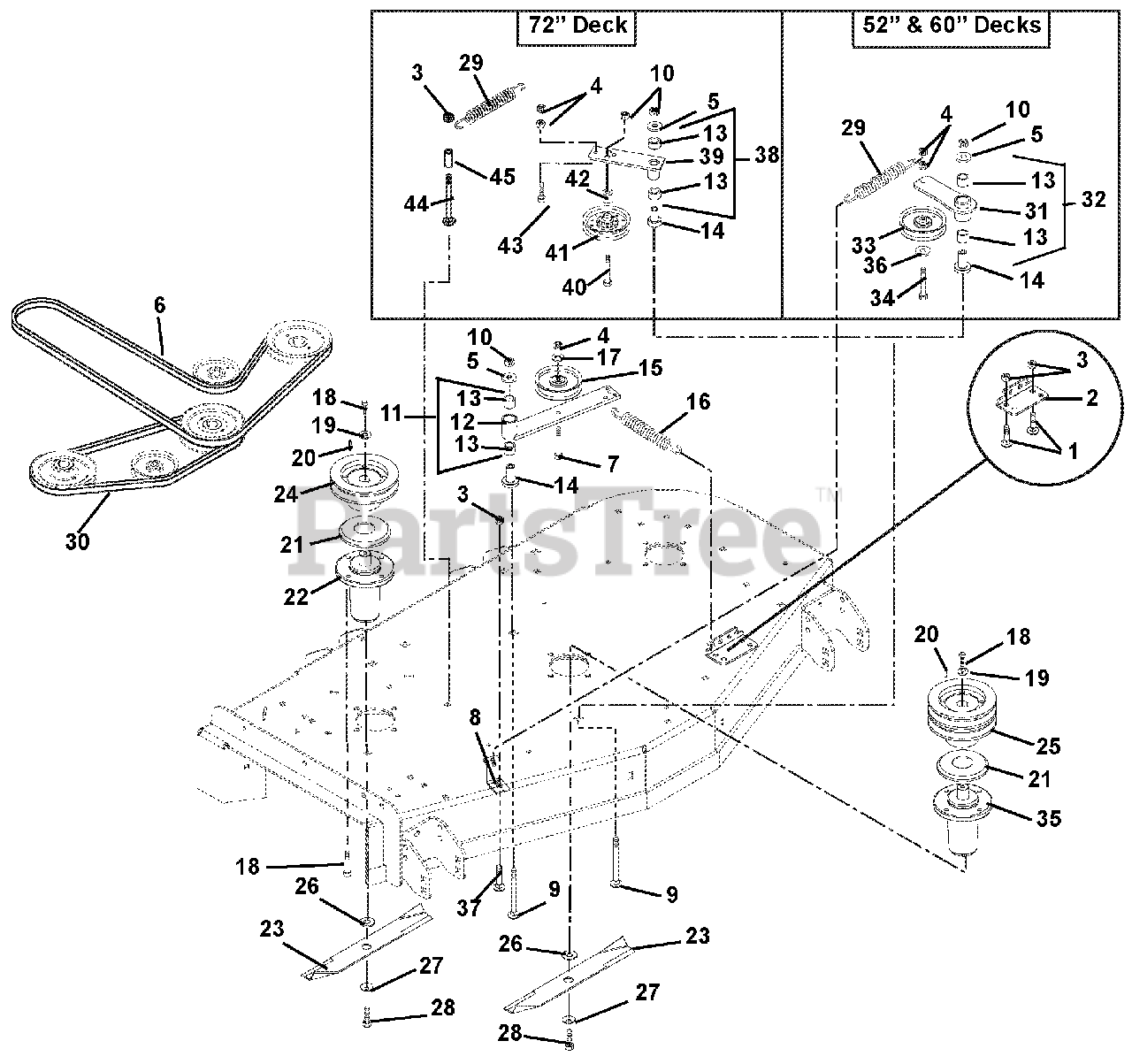

992070 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki (SN: 004001 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

2

Gravely 09248353

Bracket, Spring

$40.99

$

In Stock, only 2 left!

0

3

Gravely 06542000

Nut, Locking Top Flange .38-16 (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)
(Superseded to 06500822)

Note: (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)

$1.49

$

In Stock, Qty 20+

0

Gravely 06542000

Nut, Locking Top Flange .38-16 (049, 053, 070, 072)
(Superseded to 06500822)

Note: (049, 053, 070, 072)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer, Flat Steel .531 x 1.25 x .10 (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)
(Superseded to 06441000)

Note: (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)

$2.99

$

In Stock, Qty 6

0

Gravely 415543

Washer, Flat Steel .531 x 1.25 x .10 (049, 053, 070, 072)
(Superseded to 06441000)

Note: (049, 053, 070, 072)

$2.99

$

In Stock, Qty 6

0

6

Gravely 07240700

V-Belt, B-Section 54.06 x .625 (045, 052, 066, 071)

Note: (045, 052, 066, 071)

$87.99

$

In Stock, only 2 left!

0

Gravely 07241300

V-Belt, B-Section 58.25 x .625 (046, 047, 048, 067, 068, 069)

Note: (046, 047, 048, 067, 068, 069)

$119.99

$

In Stock, only 1 left!

0

Gravely 07242300

V-Belt, 72 in. Deck Drive (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$142.99

$

Usually ships in 4-12 days

0

7

Gravely 06225400

Bolt-Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 09245353

Anchor, Spring

$

$

Not available

9

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200340)

$5.99

$

In Stock, only 2 left!

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13 (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)
(Superseded to 06500907)

Note: (045, 046, 047, 048, 052, 066, 067, 068, 069, 071)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543600

Nut, Locking Top Flange .50-13 (049, 053, 070, 072)
(Superseded to 06500907)

Note: (049, 053, 070, 072)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09286500

Assembly, Idler Pivot Arm (Contains Items 12 & 13)

Note: (Contains Items 12 & 13)

$164.99

$

In Stock, only 1 left!

0

12

Gravely 09286451

Weldment, Idler Pivot Arm

$170.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

14

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

15

Gravely 07327800

Idler, Flat 4.00 x .38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

16

Gravely 08300002

Spring, Extension
(Superseded to 08300513)

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 446470

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 15

0

21

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

22

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$262.99

$

In Stock, only 4 left!

0

23

Gravely 09290500

Blade, Mower (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$37.99

$

In Stock, Qty 20+

0

Gravely 04916400

Blade, 32 in. (16.25) (045, 052, 066, 071)

Note: (16.25) (045, 052, 066, 071)

$27.99

$

In Stock, Qty 20+

0

Gravely 09081200

Blade, Mower (18.00) (046, 047, 048, 067, 068, 069)

Note: (18.00) (046, 047, 048, 067, 068, 069)

$29.99

$

In Stock, Qty 20+

0

Gravely 09290600

Blade, Mower 72 in. Mulch (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$39.99

$

In Stock, only 3 left!

0

Gravely 04917900

Blade, Mulching (18.00) (045, 052, 066, 071)
(Superseded to 00273100)

Note: (18.00) (045, 052, 066, 071)

$26.99

$

In Stock, Qty 20+

0

Gravely 08866900

Blade, Mower 60 in. Mulch (046, 047, 048, 067, 068, 069)

Note: (046, 047, 048, 067, 068, 069)

$37.99

$

In Stock, Qty 20+

0

24

Gravely 09242500

Weldment, Spindle Sheave 5.00 (045, 052, 066, 071)
(Superseded to 07331067)

Note: (045, 052, 066, 071)

$119.99

$

In Stock, only 1 left!

0

Gravely 09238500

Weldment, Spindle Sheave 6.00 (046, 047, 048, 067, 068, 069)

Note: (046, 047, 048, 067, 068, 069)

$45.99

$

In Stock, only 1 left!

0

Gravely 09253400

Weldment, Spindle Sheave (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$85.99

$

Usually ships in 4-12 days

0

25

Gravely 09253200

Sheave, Double (5.25) (045, 052, 066, 071)

Note: (5.25) (045, 052, 066, 071)

$62.99

$

In Stock, only 1 left!

0

Gravely 09253100

Sheave, Double (6.25) (046, 047, 048, 067, 068, 069)

Note: (6.25) (046, 047, 048, 067, 068, 069)

$85.99

$

In Stock, only 3 left!

0

Gravely 09253300

Sheave, Double (7.25) (049, 053, 070, 072)
(Superseded to 59217800)

Note: (7.25) (049, 053, 070, 072)

$162.99

$

In Stock, only 1 left!

0

26

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

28

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

30

Gravely 07237700

V-Belt 5L-Section 49.97 x .672 (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$71.99

$

In Stock, only 1 left!

0

Gravely 049028

V-Belt B-Section 19.10 x .672 (045, 052, 066, 071)
(Superseded to 07222300)

Note: (045, 052, 066, 071)

$62.99

$

In Stock, only 3 left!

0

Gravely 07235000

V-Belt B-Section 23.94 x .625 (046, 047, 048, 067, 068, 069)

Note: (046, 047, 048, 067, 068, 069)

$52.99

$

In Stock, only 1 left!

0

31

Gravely 00345600

Arm, Idler Pivot

$51.99

$

In Stock, only 4 left!

0

32

Gravely 00349100

Asm, Idler Pivot Arm (Contains Items 13 and 31)

Note: (Contains Items 13 and 31)

$63.99

$

In Stock, only 2 left!

0

33

Gravely 07327600

V-Idler, 4.00 x .38

$38.99

$

In Stock, Qty 20+

0

34

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

35

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

36

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

38

Gravely 09219000

Assembly, Idler Arm Guard Drive (Includes Items 13 and 39) (049, 053, 070, 072)

Note: (Includes Items 13 and 39) (049, 053, 070, 072)

$100.99

$

In Stock, only 1 left!

0

39

Gravely 09217000

Weldment, Idler Arm Ground Drive (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$111.99

$

Usually ships in 4-12 days

0

40

Gravely 05966000

Bolt, Hex .38-16 x 6.00 Grade 5 (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$

$

Not available

41

Gravely 07316700

Idler, Flat Pulley 6.75 x .51 (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$63.99

$

In Stock, only 2 left!

0

42

Gravely 03233100

Spacer .513 x .748 x .62 (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$15.99

$

Usually ships in 4-12 days

0

43

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5 (049, 053, 070, 072)
(Superseded to 05901724)

Note: (049, 053, 070, 072)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75 Grade 5 (049, 053, 070, 072)
(Superseded to 06200316)

Note: (049, 053, 070, 072)

$3.99

$

In Stock, only 1 left!

0

45

Gravely 09054100

Spacer .38 x .625 x 1.50 (049, 053, 070, 072)

Note: (049, 053, 070, 072)

$

$

Not available
