992068 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000500 - 004000) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

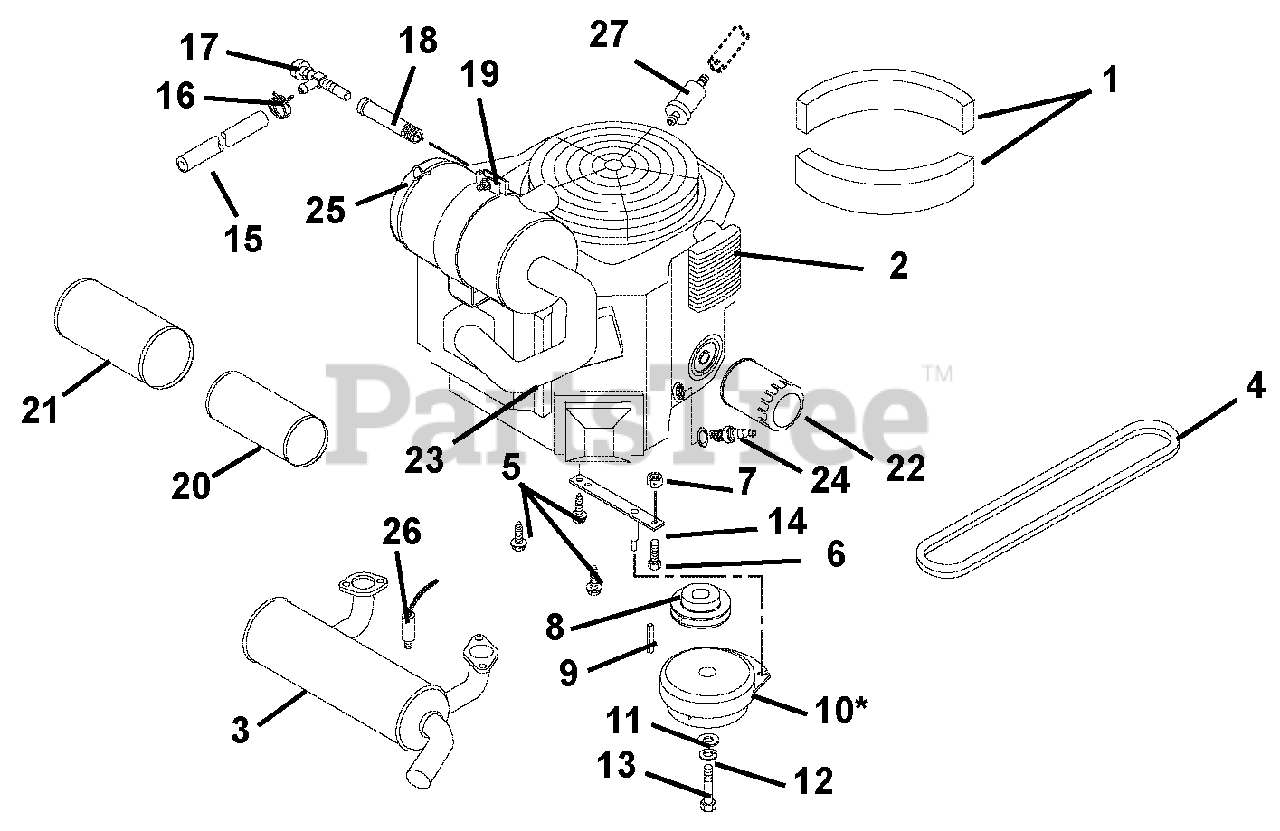

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09293900

Seal, Foam

$17.99

$

In Stock, only 1 left!

0

2

Gravely 08268200

Engine, Kohler 28HP EFI (069)

Note: (069)

$

$

Not available

Gravely 08268100

Engine, Kohler 27HP Command Vertical (068, 071, 072)

Note: (068, 071, 072)

$

$

Not available

Gravely 08268300

Engine, 25 HP Kawasaki (066, 067, 070)

Note: (066, 067, 070)

$

$

Not available

3

Gravely 09257300

Muffler, Kohler EFI (069)

Note: (069)

$641.99

$

Usually ships in 4-12 days

0

Gravely 09294800

Muffler, Kohler Command (070, 071, 072)
(Superseded to 00470400)

Note: (070, 071, 072)

$198.99

$

In Stock, only 1 left!

0

Gravely 09281600

Muffler, Kawasaki (066, 067, 070)

Note: (066, 067, 070)

$271.99

$

Usually ships in 4-12 days

0

4

Gravely 07242000

Belt, Poly-V

$53.99

$

In Stock, Qty 20+

0

5

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07327000

Sheave, Poly V 1.127 x 3.25
(Superseded to 07300041)

$93.99

$

In Stock, only 1 left!

0

9

Gravely 06602200

Key, Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

10

Gravely 09266700

Clutch, Electric
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

11

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

13

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 04907200

Anchor, Clutch

$68.99

$

In Stock, only 1 left!

0

15

Gravely 021134

Gas Line, Bulk .25 ID (066, 067, 068, 070, 071, 072)
(Superseded to 03278100)

Note: (066, 067, 068, 070, 071, 072)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

Gas Line, Bulk .25 ID (069)
(Superseded to 03278100)

Note: (069)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 10

0

17

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 09257600

Bracket, Air Cleaner Mount

$87.99

$

Usually ships in 4-12 days

0

20

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

21

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

22

Gravely 21397200

Oil Filter (068, 069, 071, 072)
(Superseded to 20715100)

Note: (068, 069, 071, 072)

$18.99

$

In Stock, only 4 left!

0

Gravely 21535800

Oil Filter (066, 067, 070)
(Superseded to 49065-0724)

Note: (066, 067, 070)

$18.99

$

In Stock, Qty 20+

0

23

Gravely 21536800

Hose, Air Intake (068, 069, 071, 072)

Note: (068, 069, 071, 072)

$25.99

$

Usually ships in 4-12 days

0

24

Gravely 21525900

Spark Plug (068, 069, 071, 072)
(Superseded to 21541700)

Note: (068, 069, 071, 072)

$3.49

$

In Stock, Qty 20+

0

Gravely 21536100

Spark Plug (066, 067, 070)

Note: (066, 067, 070)

$3.49

$

In Stock, only 2 left!

0

25

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

26

Gravely 21537100

Sensor, Oxygen (069)

Note: (069)

$

$

Not available

27

Gravely 21410800

Fuel Filter (066, 067, 070)
(Superseded to 21541500)

Note: (066, 067, 070)

$8.99

$

In Stock, Qty 20+

0

Gravely 21539500

Fuel Filter (068, 069, 071, 072)

Note: (068, 069, 071, 072)

$12.99

$

In Stock, Qty 20+

0

Gravely 59205200

Break Pole Module Replacement Kit (Not Shown)

Note: (Not Shown)

$

$

Not available
