992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

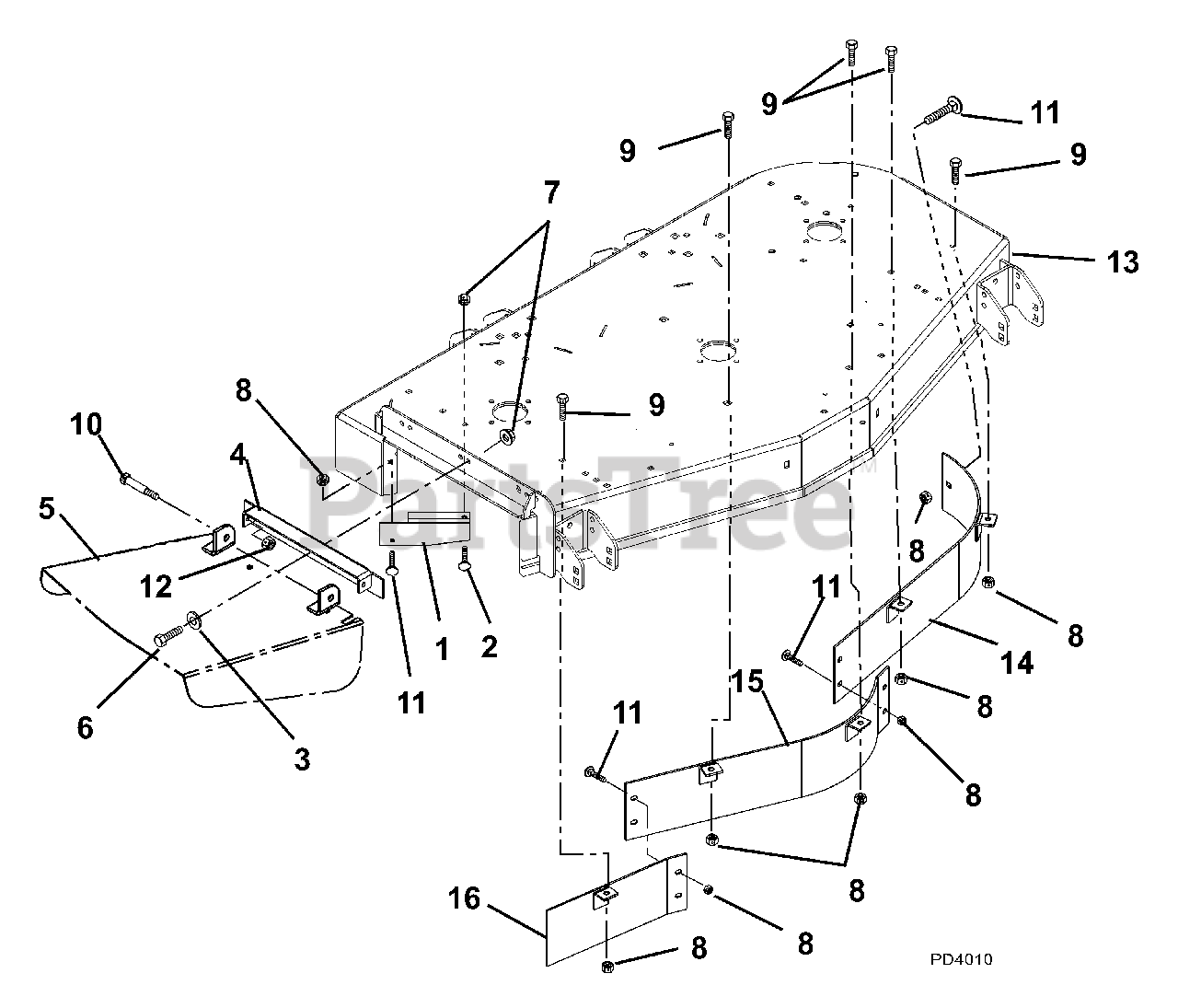

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04939851

Deflector, 44"
(Superseded to 04939853)

$58.99

$

Usually ships in 4-12 days

0

2

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

3

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09286753

Weldment Discharge Chute Bracket

$150.99

$

Usually ships in 4-12 days

0

5

Gravely 00252953

Chute, Discharge

$187.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06545400

Nut, Nyloc Flange 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07056500

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04940253

Weldment, 44" Mower Deck Float
(Superseded to 59225300)

$774.99

$

Usually ships in 4-12 days

0

14

Gravely 04938951

Baffle, Left Front - 44"

$

$

Not available

15

Gravely 04939051

Weldment, Baffle Center Front - 44"

$156.99

$

Usually ships in 4-12 days

0

16

Gravely 04939151

Weldment, Baffle Right Front - 44"

$100.99

$

Usually ships in 4-12 days

0
