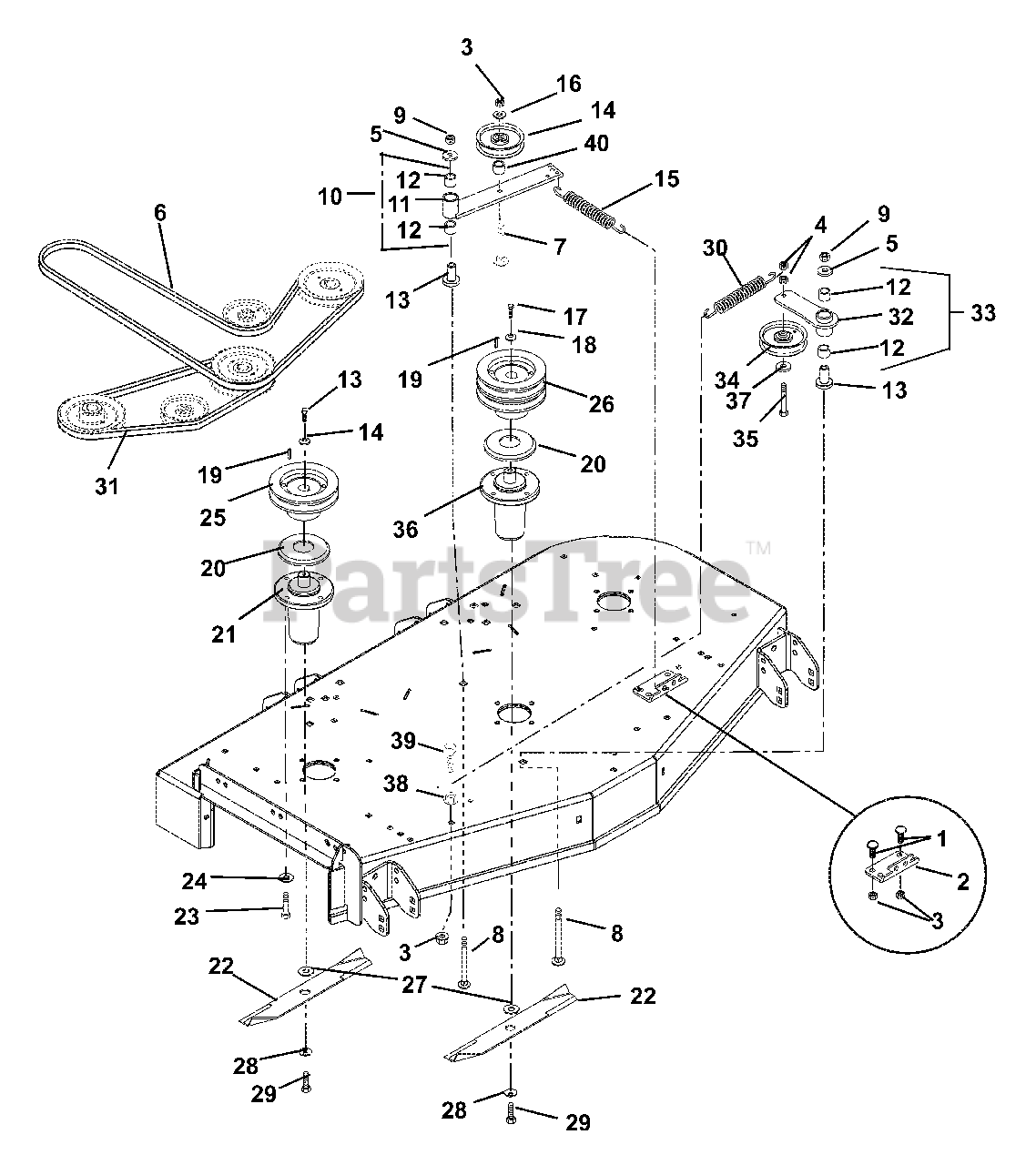

992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 001500 - 004999) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title
1

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

2

Gravely 09248353

Bracket, Spring

$40.99

$

In Stock, only 2 left!

0

3

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

6

Gravely 07241100

V-Belt, B-Section 51.50 x .625

$125.99

$

In Stock, only 1 left!

0

7

Gravely 06213400

Bolt-Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09286500

Assembly, Idler Pivot Arm

Note: (Contains Items 22 & 23)

$164.99

$

In Stock, only 1 left!

0

11

Gravely 09286451

Weldment, Idler Pivot Arm

$170.99

$

Usually ships in 4-12 days

0

12

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

13

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

14

Gravely 07300004

Idler, Flat 4.00 x .38 (1.00 W)

Note: (1.00 W)

$53.99

$

In Stock, only 2 left!

0

15

Gravely 08300002

Spring, Extension
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

16

Gravely 446470

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 00597000

Washer, Cupped Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06611200

Key, Square .25 x .25 x 1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

20

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

21

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

22

Gravely 04919100

Blade, Mower

$26.99

$

In Stock, Qty 20+

0

22

Gravely 04920600

Blade, Mulching
(Superseded to 05244100)

$27.99

$

In Stock, Qty 20+

0

23

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 09242500

Weldment, Spindle Sheave 5.00
(Superseded to 07331067)

$119.99

$

In Stock, only 1 left!

0

26

Gravely 09253200

Sheave, Double (5.25)

Note: (5.25)

$62.99

$

Usually ships in 4-12 days

0

27

Gravely 06435200

Washer, Flat .64 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

28

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

29

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

31

Gravely 07202900

V-Belt, 5L-Section 49.97 x .672

$48.99

$

In Stock, only 1 left!

0

32

Gravely 00345601

Arm, Idler Pivot

$

$

Not available

33

Gravely 00349100

Asm, Idler Pivot Arm

Note: (Contains items 12 and 33)

$63.99

$

In Stock, only 2 left!

0

34

Gravely 07327600

V-Idler, 4.00 x .38

$38.99

$

In Stock, Qty 20+

0

35

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 59202600

Spindle Assembly (Center)
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

37

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 02506200

Spacer .380 x .750 x .236

$3.99

$

Usually ships in 4-12 days
