992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Fuel Tanks And Hoses Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

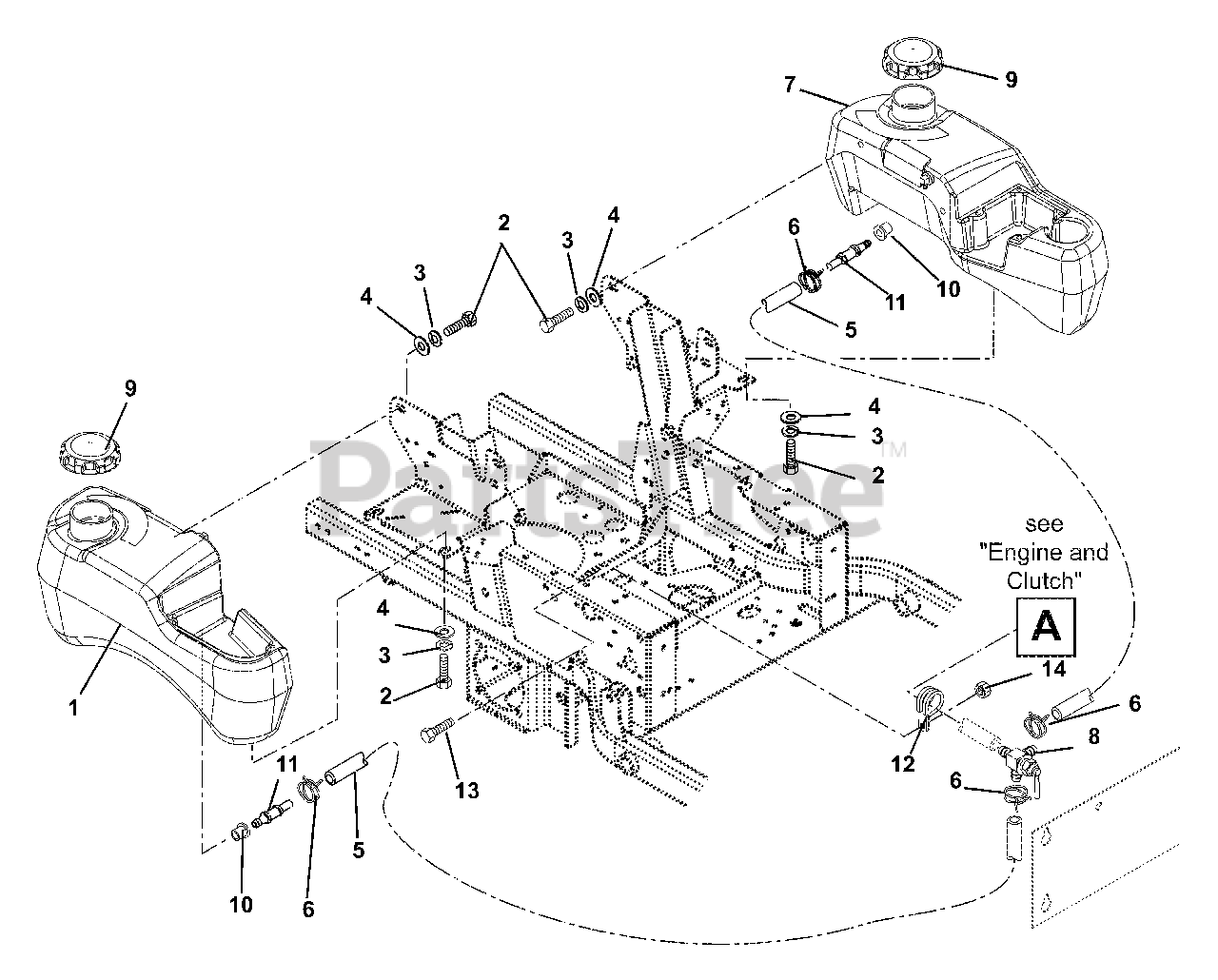

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Ariens 09281500

TANK, GAS - RH W/O HOSE

$

$

Not available

2

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

7

Ariens 00191100

TANK, LH FUEL 100 S. W/O HOSE

Note: (EYE-Q) 100 Series

$276.99

$

Usually ships in 4-12 days

0

8

Ariens 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

9

Ariens 00273700

CAP - FUEL
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

10

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

11

Ariens 07064500

FITTING, TANK

$12.99

$

In Stock, only 2 left!

0

12

Ariens 06918200

CLAMP, CUSHIONED STEEL

$

$

Not available

13

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
