992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

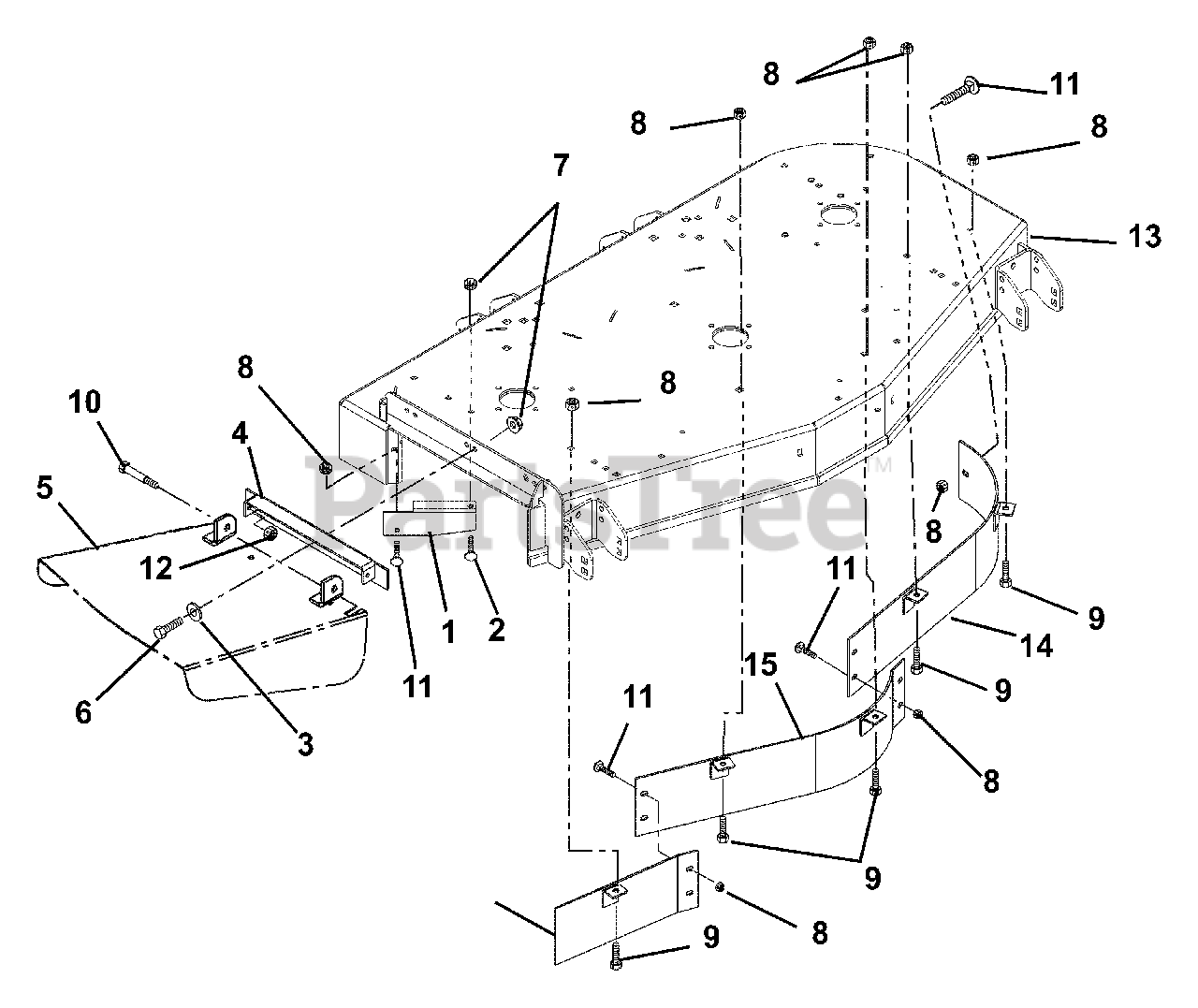

Deck, Discharge Chute And Baffles Parts Diagram

  • Title
1

Ariens 04921951

DEFLECTOR - 52"/34"
(Superseded to 04921953)

Note: (062)

$

$

Not available

1

Ariens 09238451

DEFLECTOR, 60" (BLACK)

Note: (063)

$

$

Not available

2

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (062)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 09286759

WMT, DISCH CHUTE BRKT - ORANGE

Note: (062)

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 00253259

WMT, CHUTE BRKT

Note: (063)

$

$

Not available

5

Ariens 09286159

DISCH CHUTE - ORANGE

Note: (062)

$

$

Not available

5

Ariens 00198259

WMT, 60" DISCHARGE CHUTE

Note: (063)

$131.99

$

Usually ships in 4-12 days

0

6

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 09284459

WMT, 52" MOWER DECK - ORANGE

Note: (062)

$387.99

$

Usually ships in 4-12 days

0

13

Ariens 09288259

60" 7 GA. MOWER DECK - ORANGE

Note: (063)

$1228.99

$

Usually ships in 4-12 days

0

14

Ariens 04921651

BAFFLE - LEFT FRONT - 52"
(Superseded to 04921653)

Note: (062)

$56.99

$

In Stock, only 1 left!

0

14

Ariens 09241651

BAFFLE - LEFT FRONT - 60"

Note: (063)

$110.99

$

In Stock, only 1 left!

0

15

Ariens 04921751

BAFFLE - CENTER FRONT - 52"

Note: (062)

$74.99

$

In Stock, only 1 left!

0

15

Ariens 09241751

BAFFLE - CENTER FRONT - 60"

Note: (063)

$100.99

$

In Stock, only 2 left!

0

16

Ariens 04921851

BAFFLE - RIGHT FRONT - 52"
(Superseded to 04921853)

Note: (062)

$37.99

$

In Stock, Qty 8

0

16

Ariens 09241851

BAFFLE - RIGHT FRONT - 60"

Note: (063)

$56.99

$

Usually ships in 4-12 days

0
