992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 002000 - 002500) Mounting Arms And Belt Guards Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

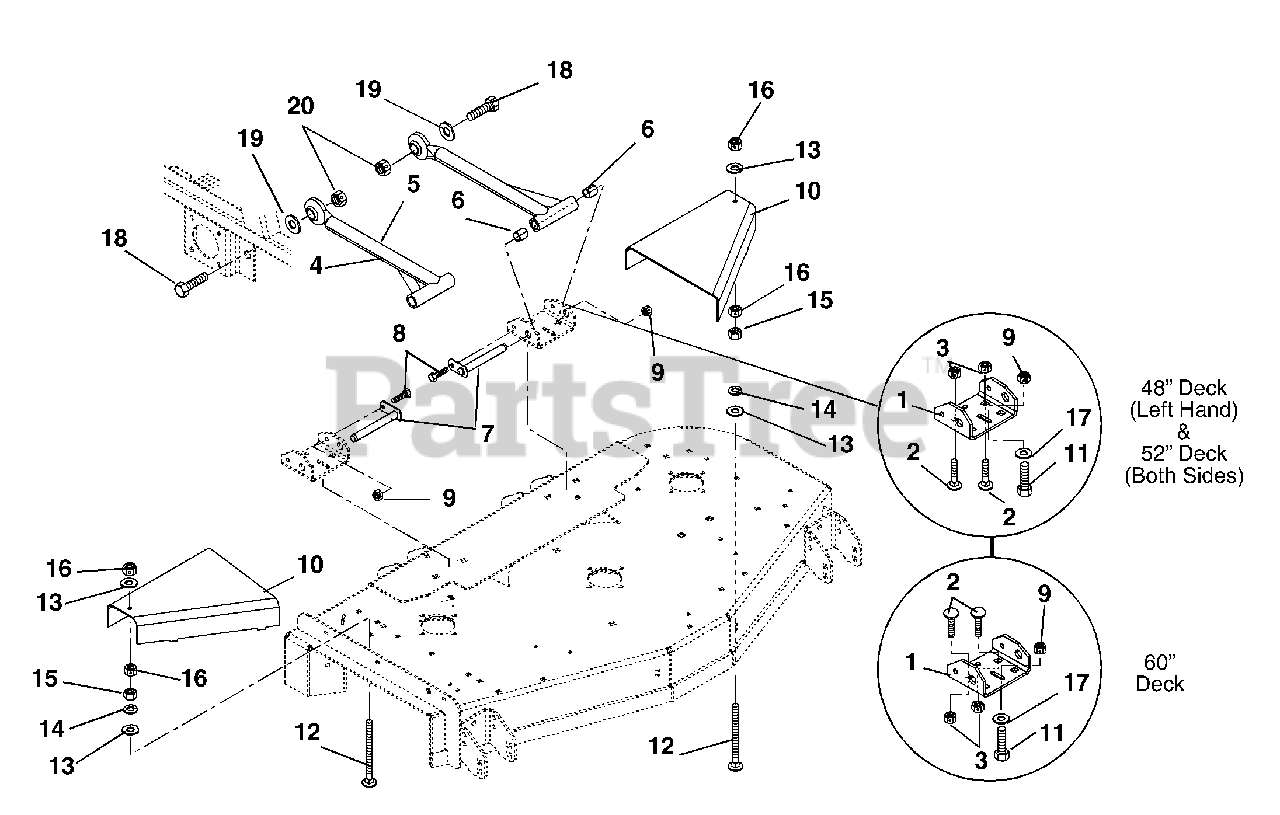

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Ariens 09240459

BRKT, MOWER MOUNT - ORANGE

Note: (Rear)

$

$

Not available

2

Ariens 06221200

@BLT-RDHDSQNK .50-13X.75 G5YZ

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Ariens 09282151

MOWER MTG ARM - BLACK

$

$

Not available

6

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 3 left!

0

7

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

8

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 09246259

GUARD, PULLEY LH - ORANGE

Note: (062)

$

$

Not available

10

Ariens 09246359

GUARD, PULLEY RH - ORANGE
(Superseded to 09246351)

Note: (062)

$62.99

$

Usually ships in 4-12 days

0

10

Ariens 09240859

GUARD, PULLEY LH - ORANGE

Note: (063)

$

$

Not available

10

Ariens 09240759

GUARD, PULLEY RH - ORANGE
(Superseded to 09240751)

Note: (063)

$46.99

$

In Stock, only 2 left!

0

11

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 06225300

BLT-RDHDSQNKFTH.312-18X3.50YWZ

Note: (062)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06225300

BLT-RDHDSQNKFTH.312-18X3.50YWZ

Note: (063)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (062)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (063)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (062)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (063)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (062)

$0.99

$

In Stock, Qty 10

0

15

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (063)

$0.99

$

In Stock, Qty 10

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (062)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (063)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

19

Ariens 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$3.99

$

In Stock, Qty 16

0

20

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$5.99

$

In Stock, Qty 11

0
