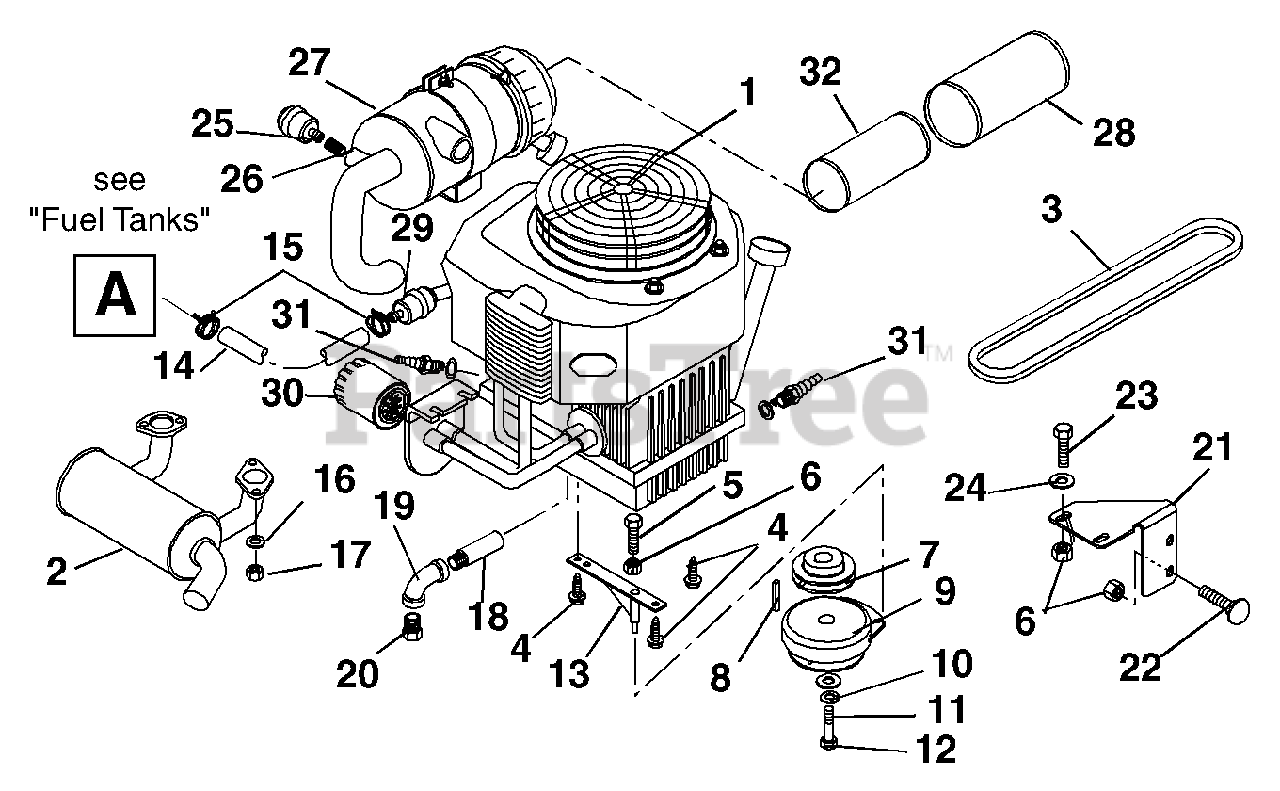

992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 002000 - 002500) Engine And Clutch Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Ariens 08270000

ENG,25HP KOHLER W/RMT OILFILTR

$

$

Not available

2

Ariens 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

$198.99

$

In Stock, only 1 left!

0

3

Ariens 07218000

V-BELT, HA-RAW EDGE
(Superseded to 07200428)

$52.99

$

Usually ships in 4-12 days

0

4

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

5

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07327700

PLY-V 4.00 X 1.12 KEYWAY 1.54

$75.99

$

In Stock, only 1 left!

0

8

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 5

0

9

Ariens 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

10

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 4 left!

0

11

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

12

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

13

Ariens 09282300

WMT, CLUTCH ANCHOR

$90.99

$

Usually ships in 4-12 days

0

14

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 15

0

16

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$

$

Not available

18

Ariens 02749600

NIPPLE

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

20

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 09295751

BRKT, OIL FILTER MTG - BLACK

$

$

Not available

22

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 09258800

FILTER MINDER

$

$

Not available

26

Ariens 07065800

NIPPLE, 1/8"NPT

$

$

Not available

27

Ariens 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

28

Ariens 21537000

ELEMENT, OUTER PRIMARY

$28.99

$

In Stock, only 2 left!

0

29

Ariens 21539500

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

30

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$18.99

$

In Stock, only 4 left!

0

31

Ariens 21525900

SPARK PLUG
(Superseded to 21541700)

$3.49

$

In Stock, Qty 20+

0

32

Ariens 21536900

ELEMENT, INNER SAFETY

$28.99

$

In Stock, only 1 left!

0
