992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 002000 - 002500) Belts, Spindles, Idlers And Blades Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

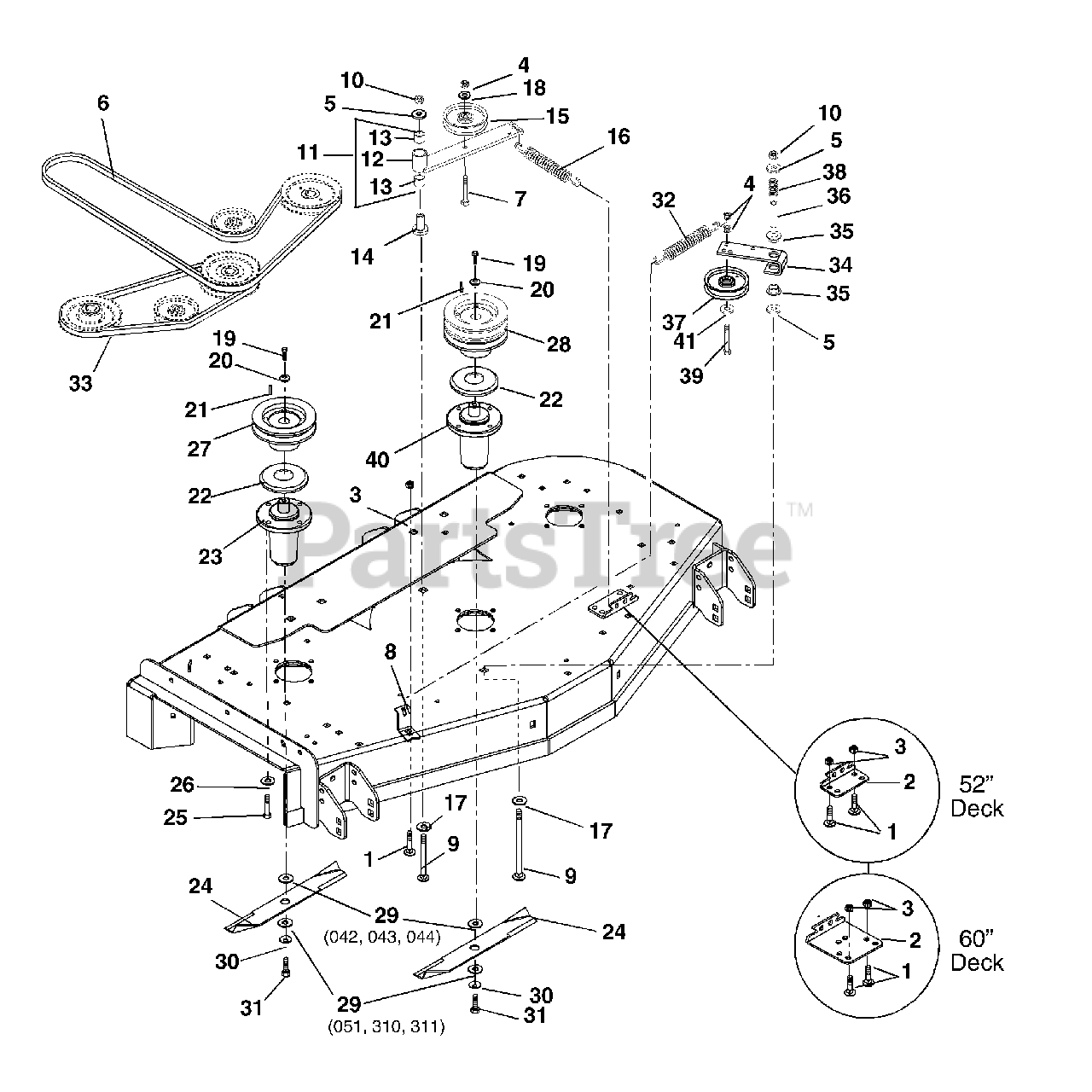

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

Note: (062)

$1.49

$

In Stock, only 4 left!

0

1

Ariens 06221400

@BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

Note: (063)

$2.49

$

In Stock, only 3 left!

0

2

Ariens 09248359

BRACKET, SPRING - ORANGE

Note: (062)

$17.99

$

Usually ships in 4-12 days

0

2

Ariens 09099700

BRACKET, SPRING

Note: (063)

$64.99

$

Usually ships in 4-12 days

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 07241100

V-BELT, HB-WRAPPED

Note: (062)

$125.99

$

In Stock, only 1 left!

0

6

Ariens 07239300

V-BELT, B-WRAPPED

Note: (063)

$105.99

$

In Stock, only 1 left!

0

7

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

8

Ariens 09245359

ANCHOR, SPRING - ORANGE

$

$

Not available

9

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 09248400

ASSEMBLY, IDLER PIVOT ARM
(Superseded to 09286500)

Note: (Contains Items 12 & 13)

$164.99

$

In Stock, only 1 left!

0

12

Ariens 09248551

WELDMENT, IDLER PIVOT ARM

$

$

Not available

13

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

14

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

15

Ariens 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

16

Ariens 08335100

SG-EXT-.090X1.00X6.00
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

17

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

22

Ariens 09238200

SLINGER, DUST

$17.99

$

In Stock, only 4 left!

0

23

Ariens 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

24

Ariens 04916400

BLADE, MOWER (18.00")

Note: (18.00) (062)

$27.99

$

In Stock, Qty 20+

0

24

Ariens 09081200

BLADE, MOWER (20.50")

Note: (063)

$29.99

$

In Stock, Qty 20+

0

24

Ariens 04917900

BLADE - MULCHING (18.00")
(Superseded to 00273100)

Note: (18.00) (062)

$26.99

$

In Stock, Qty 20+

0

24

Ariens 08899100

BLADE, TUNG MULCH MOWER 60"

Note: (063)

$

$

Not available

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

Note: (062)

$119.99

$

In Stock, only 1 left!

0

27

Ariens 09238500

WELDMENT, SPINDLE SHEAVE 6.00

Note: (063)

$45.99

$

In Stock, only 1 left!

0

28

Ariens 09253200

SHEAVE, DOUBLE (5.25")

Note: (5.25) (062)

$62.99

$

In Stock, only 1 left!

0

28

Ariens 09253100

SHEAVE, DOUBLE (6.25")

Note: (6.25") (063)

$85.99

$

In Stock, only 3 left!

0

29

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

30

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0

31

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

32

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

33

Ariens 07202900

V-BELT, 5L-RAW EDGE

Note: (042, 043, 310, 311)

$48.99

$

In Stock, only 1 left!

0

33

Ariens 07222300

V-BELT, HB-COGGED

Note: (062)

$62.99

$

In Stock, only 3 left!

0

33

Ariens 07235000

V-BELT, HB-RAW EDGE

Note: (063)

$52.99

$

In Stock, only 1 left!

0

34

Ariens 08905900

ARM,IDLER PIVOT

$82.99

$

Usually ships in 4-12 days

0

35

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

36

Ariens 08820500

SPACER .560X.750X2.437 ST

$17.99

$

In Stock, only 1 left!

0

37

Ariens 07327600

V-IDLER, 4.00X.38

$38.99

$

In Stock, Qty 20+

0

38

Ariens 08329100

SG-COMP .085X.80X1.00 WLD36

$13.99

$

In Stock, only 1 left!

0

39

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

40

Ariens 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$239.99

$

In Stock, Qty 20+

0

41

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
