992062 (2552 XL) - Ariens Zoom 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Brakes Parts Diagram

Zoom 52" Zero-Turn Mower, 25hp Kohler

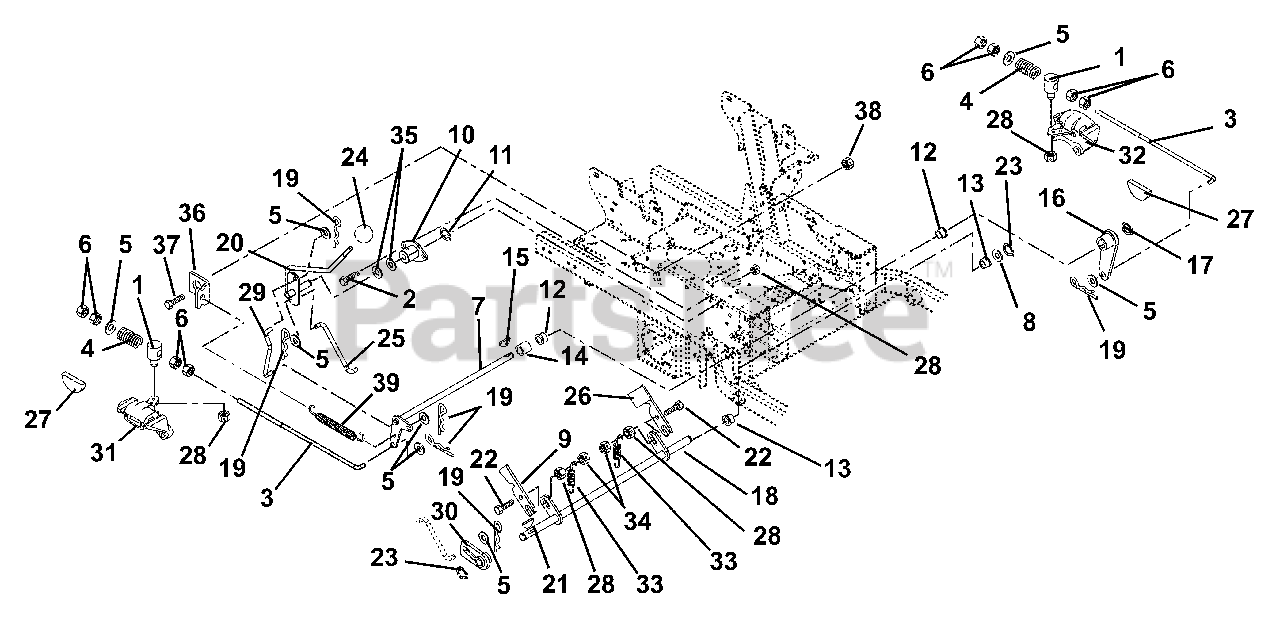

Brakes Parts Diagram

  • Title

1

Ariens 09267300

PIN, PIVOT/TRUNNION

$6.99

$

In Stock, only 1 left!

0

2

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 09248000

ROD - BRAKE 12 INCH

$

$

Not available

4

Ariens 08328500

SG-COMP .142 X .710 X 2.00

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00258700

WMT, BRAKE CROSS SHAFT

$

$

Not available

8

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 09267700

SLIDE, INTERLOCKING BRAKE

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05534700

BUSHING, FLANGED

$21.99

$

In Stock, only 2 left!

0

11

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

13

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

15

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

16

Ariens 00258600

WMT, BRAKE ARM

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

18

Ariens 09284000

WMT, MECHANICAL BRAKE

$103.99

$

Usually ships in 4-12 days

0

19

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 00277400

WMT, BRAKE ACTUATING

$85.99

$

Usually ships in 4-12 days

0

21

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

22

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

23

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

24

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

25

Ariens 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

In Stock, only 1 left!

0

26

Ariens 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

27

Ariens 09200600

PAD SET, DISK BRAKE

$59.99

$

In Stock, only 2 left!

0

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 09268300

LINKAGE, BRAKE ACTUATING

$34.99

$

Usually ships in 4-12 days

0

30

Ariens 09268100

WMT, PARKING BRAKE HUB

$190.99

$

Usually ships in 4-12 days

0

31

Ariens 09279000

BRAKE, RH CALIPER

$362.99

$

Usually ships in 4-12 days

0

32

Ariens 09279100

BRAKE, LH CALIPER

$349.99

$

Usually ships in 4-12 days

0

33

Ariens 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$20.99

$

In Stock, only 2 left!

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.49

$

In Stock, only 3 left!

0

36

Ariens 00296400

BRACKET, SPRING MOUNTING

$

$

Not available

37

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

38

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0
