992059 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 001501 & Above) Control Panel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

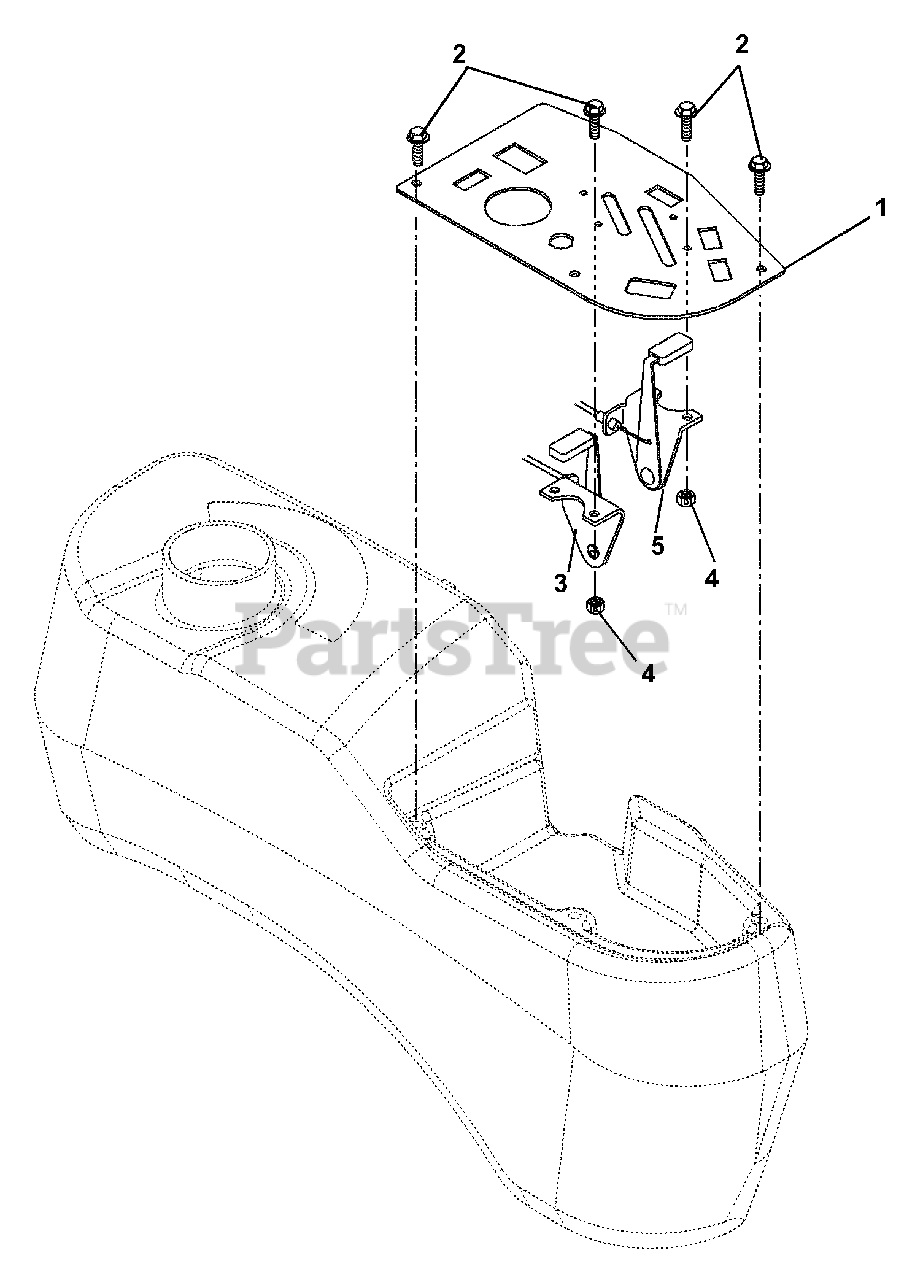

Control Panel Parts Diagram

  • Title

1

Gravely 09295551

Panel-Control

$

$

Not available

2

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head (060, 061, 075, 076, 318, 319)
(Superseded to 05901825)

Note: (060, 061, 075, 076, 318, 319)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head (058, 059, 073, 074)
(Superseded to 05901825)

Note: (058, 059, 073, 074)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06948700

Throttle, Control (060, 061, 075, 076, 318, 319)

Note: (060, 061, 075, 076, 318, 319)

$59.99

$

Usually ships in 4-12 days

0

3

Gravely 06942400

Throttle, Control (058, 059, 073, 074)

Note: (058, 059, 073, 074)

$48.99

$

Usually ships in 4-12 days

0

4

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert (060, 061, 075, 076, 318, 319)
(Superseded to 06500915)

Note: (060, 061, 075, 076, 318, 319)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert (058, 059, 073, 074)
(Superseded to 06500915)

Note: (058, 059, 073, 074)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06946300

Choke Control (058, 059, 073, 074)

Note: (058, 059, 073, 074)

$59.99

$

In Stock, only 2 left!

0
