992058 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000500 - 001500) Fuel Tanks And Hoses - Gas Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

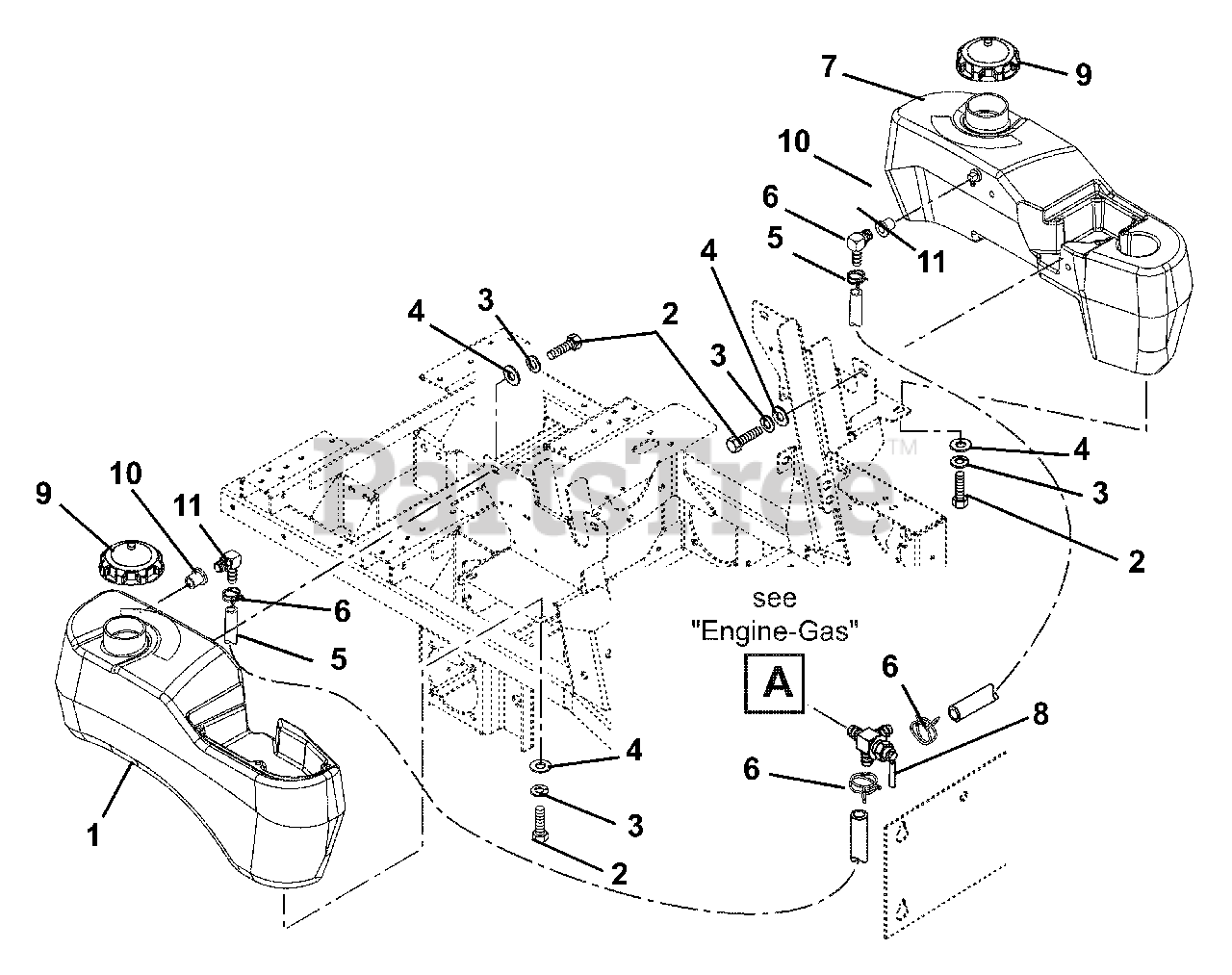

Fuel Tanks And Hoses - Gas Parts Diagram

  • Title
1

Gravely 09290700

Tank, Gas Fuel-Right Hand
(Superseded to 03963300)

Note: (058, 059)

$491.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 021134

Gas Line-Bulk .25 I.D.
(Superseded to 03278100)

Note: (058, 059)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

Note: (058, 059)

$3.99

$

In Stock, Qty 10

0

7

Gravely 00191200

Tank, Left Hand Fuel (EYE-Q) 200 Series

Note: (058, 059)

$394.99

$

Usually ships in 4-12 days

0

8

Gravely 09258200

Valve, Fuel

Note: (058, 059)

$47.99

$

In Stock, Qty 20+

0

9

Gravely 00273700

Cap, Gas
(Superseded to 03859100)

Note: (058, 059)

$28.99

$

In Stock, Qty 16

0

10

$3.49

$

In Stock, Qty 20+

0

11

Gravely 21539200

Fitting, Tank

Note: (058, 059)

$14.99

$

In Stock, only 2 left!

0
