992058 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000499) Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

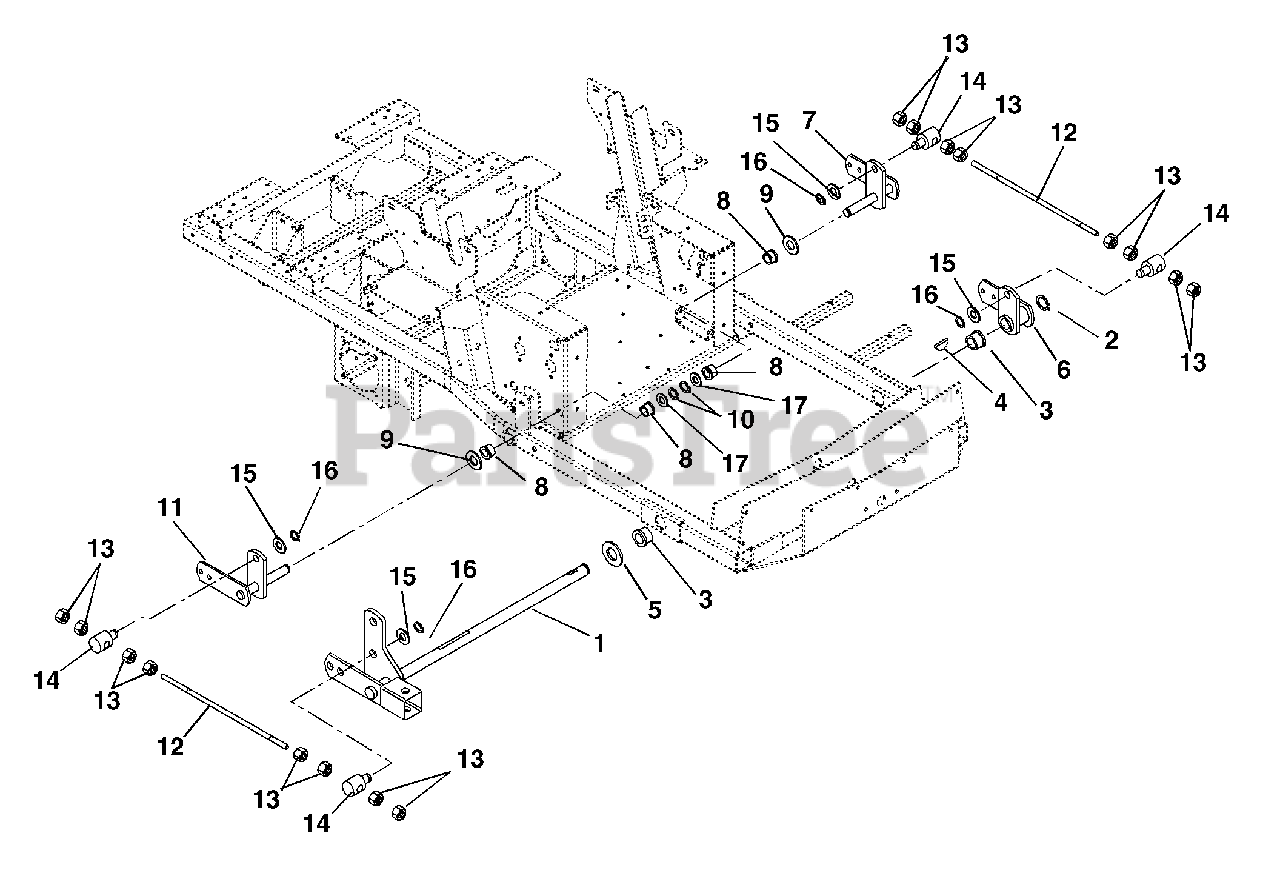

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

Lift, Mower

$297.99

$

Usually ships in 4-12 days

0

2

Gravely 050203

Ring, Retaining External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

3

Gravely 018355

Bushing, Flange Nylon 1.02 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

4

Gravely 124553

Key, Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

5

Gravely 103348

Washer, Flat Steel 1.063 x 2.00 x .134
(Superseded to 06428500)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 09289800

Weldment, Lift Arm-Front

$180.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

Weldment, Rear Lift Arm-Left Hand

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing, Flange Nylon .762 x 1.0 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer, Hardened Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

11

Gravely 09289900

Weldment, Rear Lift Arm- Right Hand

$

$

Not available

12

Gravely 09263900

Rod-Lift Assist

$64.99

$

Usually ships in 4-12 days

0

13

Gravely 06529300

Nut-Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09212700

Pivot-Mower Lift

$

$

Not available

15

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05709200

Ring-Retaining-External .625 x 05

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 06444200

Washer-Flat-Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0
