992056 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 & Above) Transmission Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

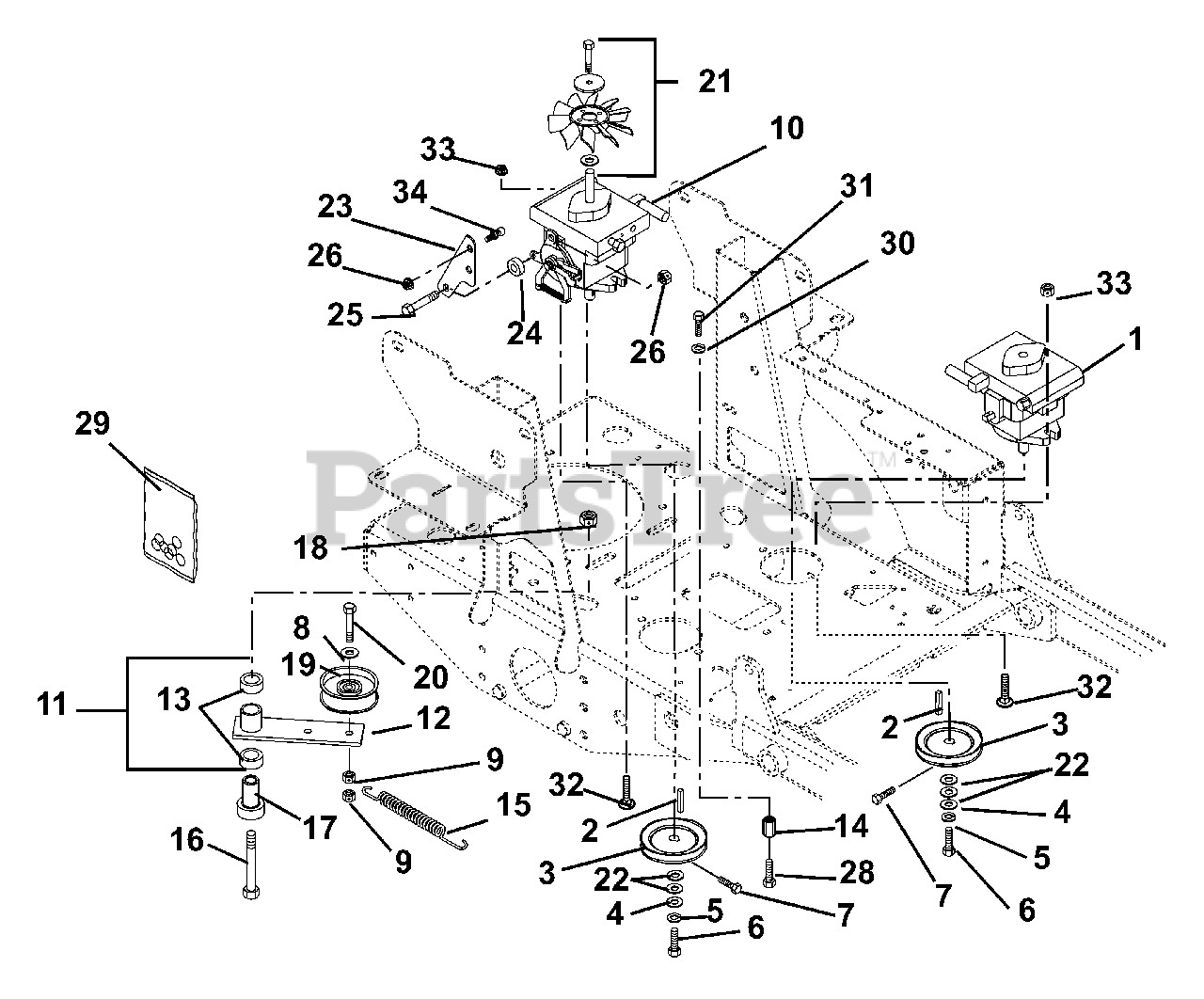

Transmission Parts Diagram

  • Title

1

Gravely 09297600

Pump, Hydraulic BDP-10A Left Hand

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

Key, Straight 5mm x 25mm x 5mm
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

$51.99

$

In Stock, only 2 left!

0

4

Gravely 416904

Washer, Flat Steel .281 x 1.00 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05969800

Bolt, Hex M6 x 1.00 x 12

$1.99

$

In Stock, Qty 14

0

7

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

8

Gravely 06444300

Washer, Flat Steel .39 x .75 x .125

$7.99

$

In Stock, Qty 8

0

9

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09285200

Pump, Hydraulic BDP-10A Right Hand

$1047.99

$

Usually ships in 4-12 days

0

11

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 12 & 13)

$100.99

$

In Stock, only 1 left!

0

12

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

14

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

15

Gravely 08336000

Spring, Tension .120 x .845 x 6.50
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

16

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 07000031

Bearing, Pedestal

$80.99

$

In Stock, only 1 left!

0

18

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07327500

Idler, Flat 4.00 x 1.06

$45.99

$

Usually ships in 4-12 days

0

20

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 09274900

Fan, Cooling

$33.99

$

In Stock, only 4 left!

0

22

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 09282900

Bracket, Return to Neutral/Damper

$7.99

$

Usually ships in 4-12 days

0

24

Gravely 02513500

Spacer .344 x 1.00 x .375

$

$

Not available

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

26

Gravely 06545400

Nut, Nyloc Flange 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

29

Gravely 59203600

Kit, Pump Seal (BDP-10A)

Note: (One kit required for each pump)

$77.99

$

Usually ships in 4-12 days

0

30

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06224500

Bolt-Round Head Square Neck .44-14 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06500009

Nut, Nyloc Flange .44-14
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

34

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0
