992056 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 002500 - 004999) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

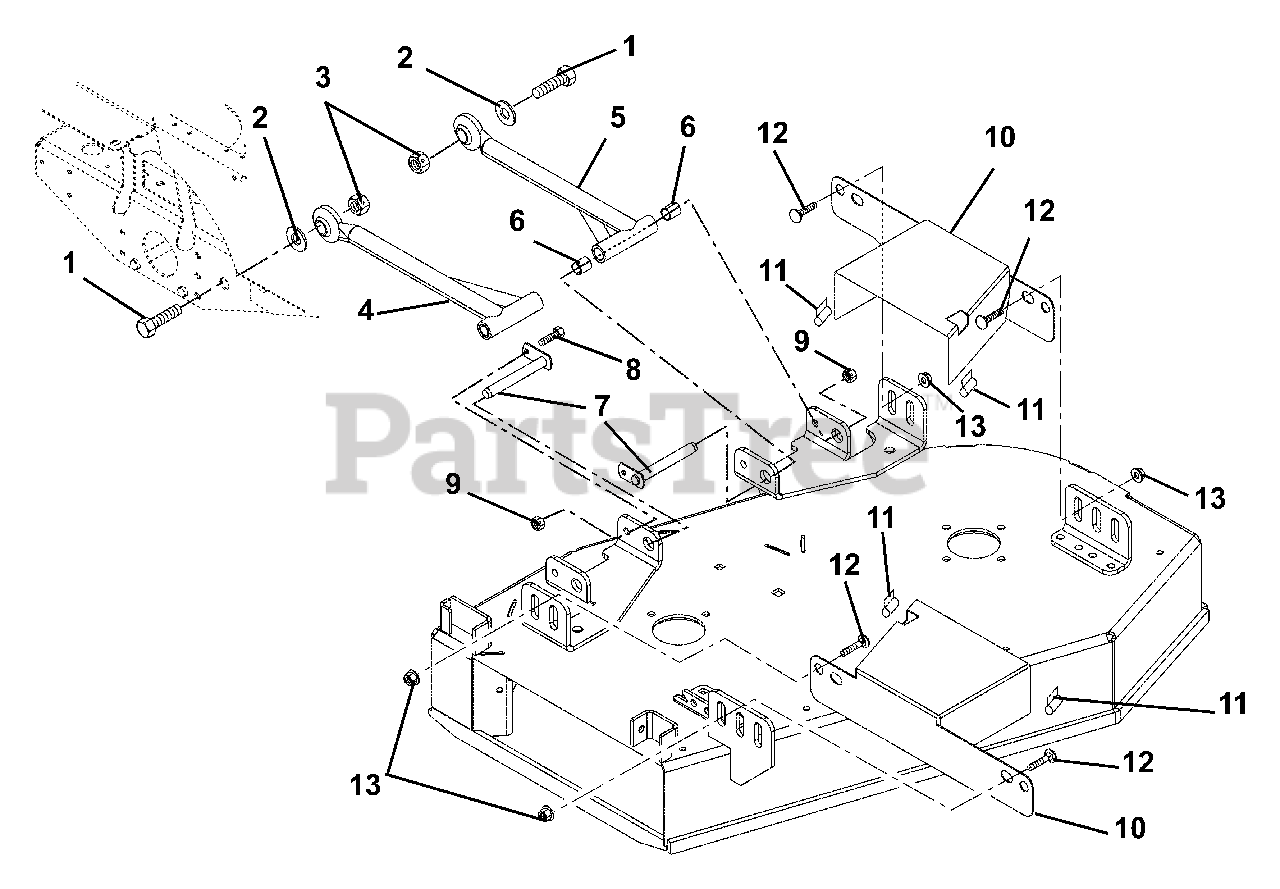

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 05900003

Bolt, Hex .875-9 x 3.00

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 05512600

Bushing, Sleeve .875 x 1.25 x .531

$5.99

$

In Stock, only 1 left!

0

3

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, Qty 11

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Arm, Mower Mounting

$

$

Not available

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 2 left!

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

Usually ships in 4-12 days

0

8

Gravely 05932600

Bolt, Hex .38-16 x .88

$2.49

$

In Stock, only 1 left!

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00160553

Guard, 34" Belt

$79.99

$

In Stock, only 3 left!

0

11

Gravely 00929000

Seal, Trim-LOK Bulk .06 Bubble

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06224600

Bolt, Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0
