992056 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 001499) Fuel Tanks And Hoses Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

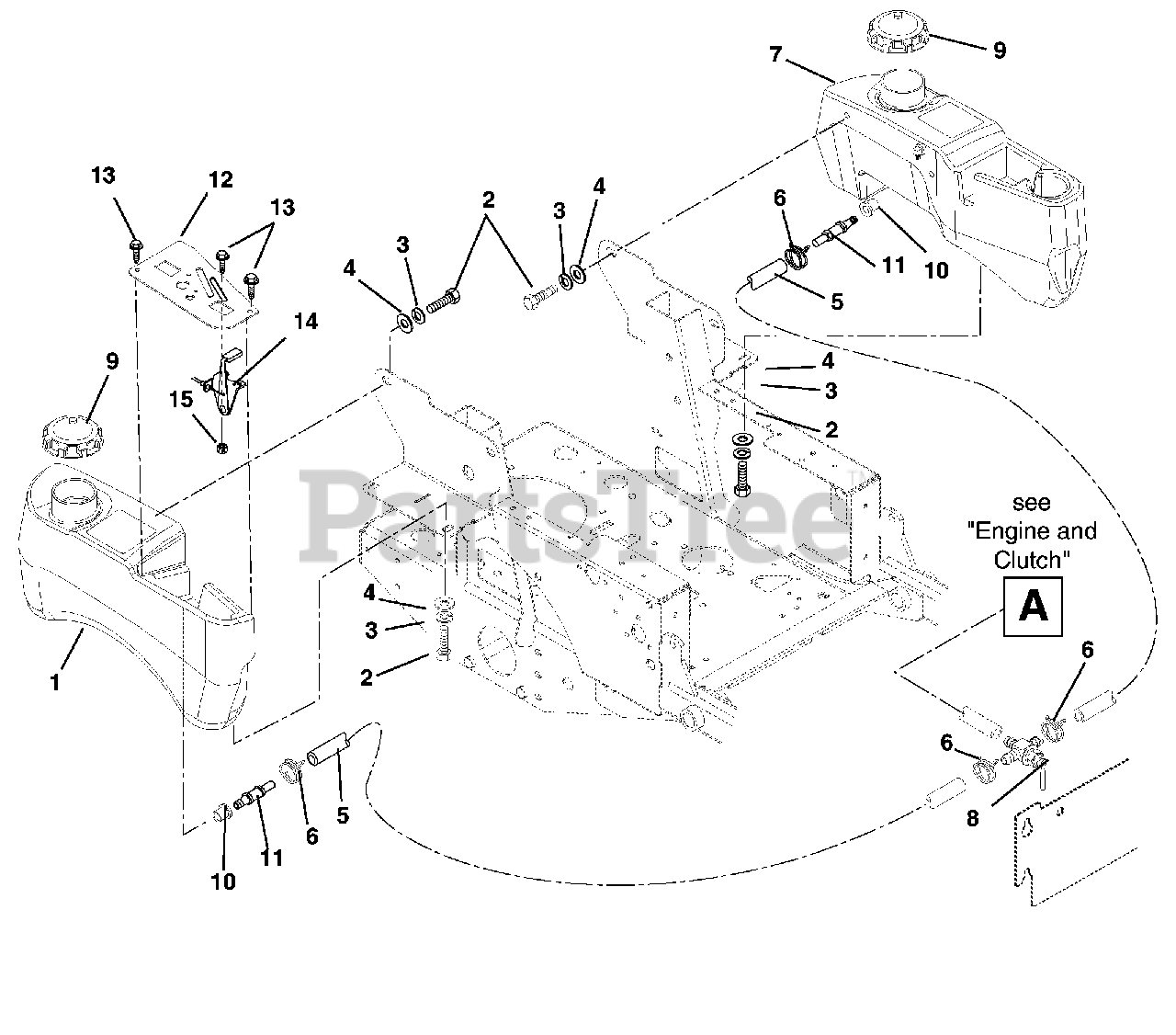

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09298200

Tank, Gas- Right Hand

$

$

Not available

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00173100

Gas Line, Bulk .25" ID x 35"

$

$

Not available

6

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 15

0

7

Gravely 09298100

Tank, Gas- Left Hand
(Superseded to 00262700)

$

$

Not available

8

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

9

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

10

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 07064500

Fuel Tank Fitting

$12.99

$

In Stock, only 2 left!

0

12

Gravely 09299551

Panel, Control

$

$

Not available

13

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06900002

Cable, Throttle / Choke

$51.99

$

In Stock, only 4 left!

0

15

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
