992056 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 001499) Belts, Spindles, Idlers And Baffles Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

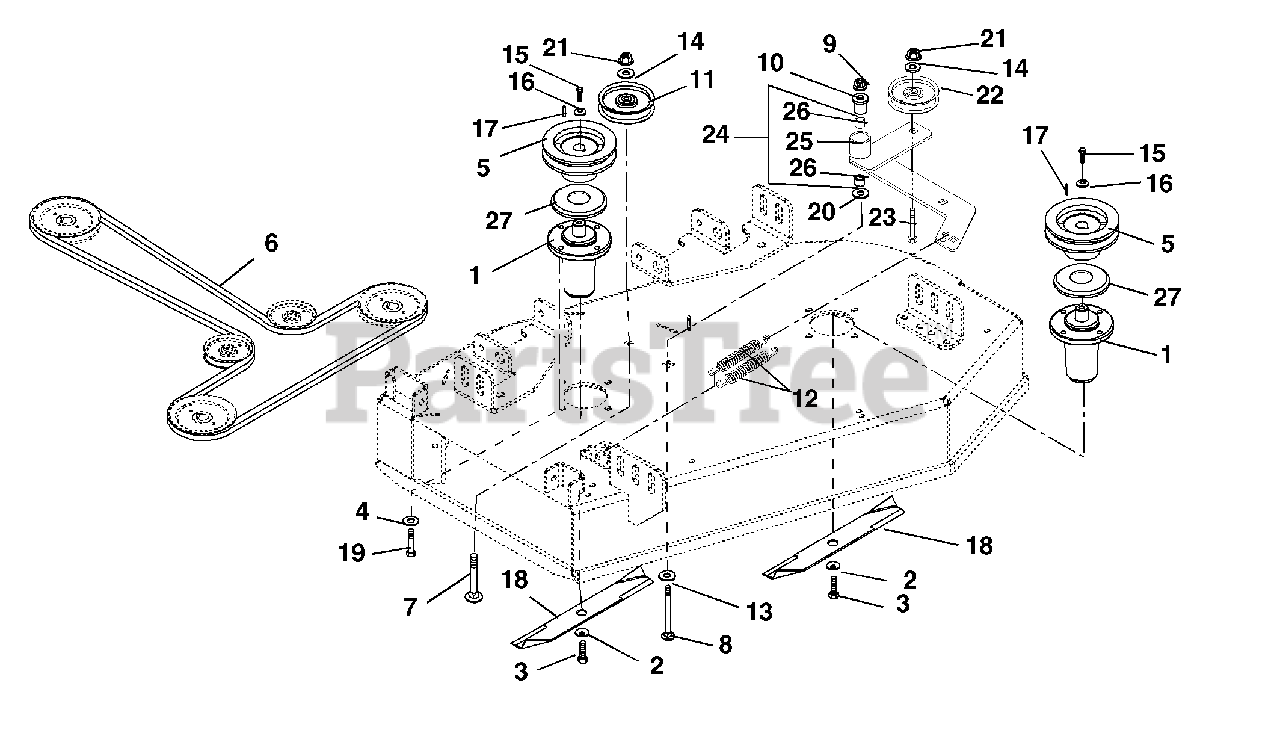

Belts, Spindles, Idlers And Baffles Parts Diagram

  • Title

1

Gravely 59201000

Assembly, Maintenance Free Spindle
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

3

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 00191800

Sheave, 5.00 Spindle (1.00 I.D.)

Note: (1.00 I.D.)

$82.99

$

Usually ships in 4-12 days

0

6

Gravely 07241000

V-Belt, B-Section 48.80 x .625

$125.99

$

Usually ships in 4-12 days

0

7

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 06225000

Bolt-Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

11

Gravely 07327800

Idler-Flat 4.00 x .38 (2.00 W)

Note: (2.00 W)

$87.99

$

In Stock, only 2 left!

0

12

Gravely 08300002

Spring, Extension
(Superseded to 08300513)

$34.99

$

In Stock, only 1 left!

0

13

Gravely 06441500

Washer-Flat-Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 00597000

Washer-Cupped-Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 20+

0

18

Gravely 09073800

Blade, Mower Sand (314)

Note: (314)

$

$

Not available

18

Gravely 09082400

Blade, Mower Hi -Lift (056)

Note: (056)

$30.99

$

In Stock, Qty 20+

0

18

Gravely 08866800

Blade, Mulching 50" Mower

$33.99

$

In Stock, Qty 20+

0

19

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07300004

Idler, Flat 4.00 x .38 (1.00 W)

Note: (1.00 W)

$53.99

$

In Stock, only 2 left!

0

23

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 09296800

Assembly, Idler Pivot Arm (Contains Items 25 & 26)

Note: (Contains Items 25 & 26)

$

$

Not available

25

Gravely 09296751

Weldment, Idler Pivot Arm

$141.99

$

Usually ships in 4-12 days

0

26

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

27

Gravely 09238200

Slinger-Dust

$17.99

$

In Stock, only 4 left!

0
