992055 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000500 - 001999) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

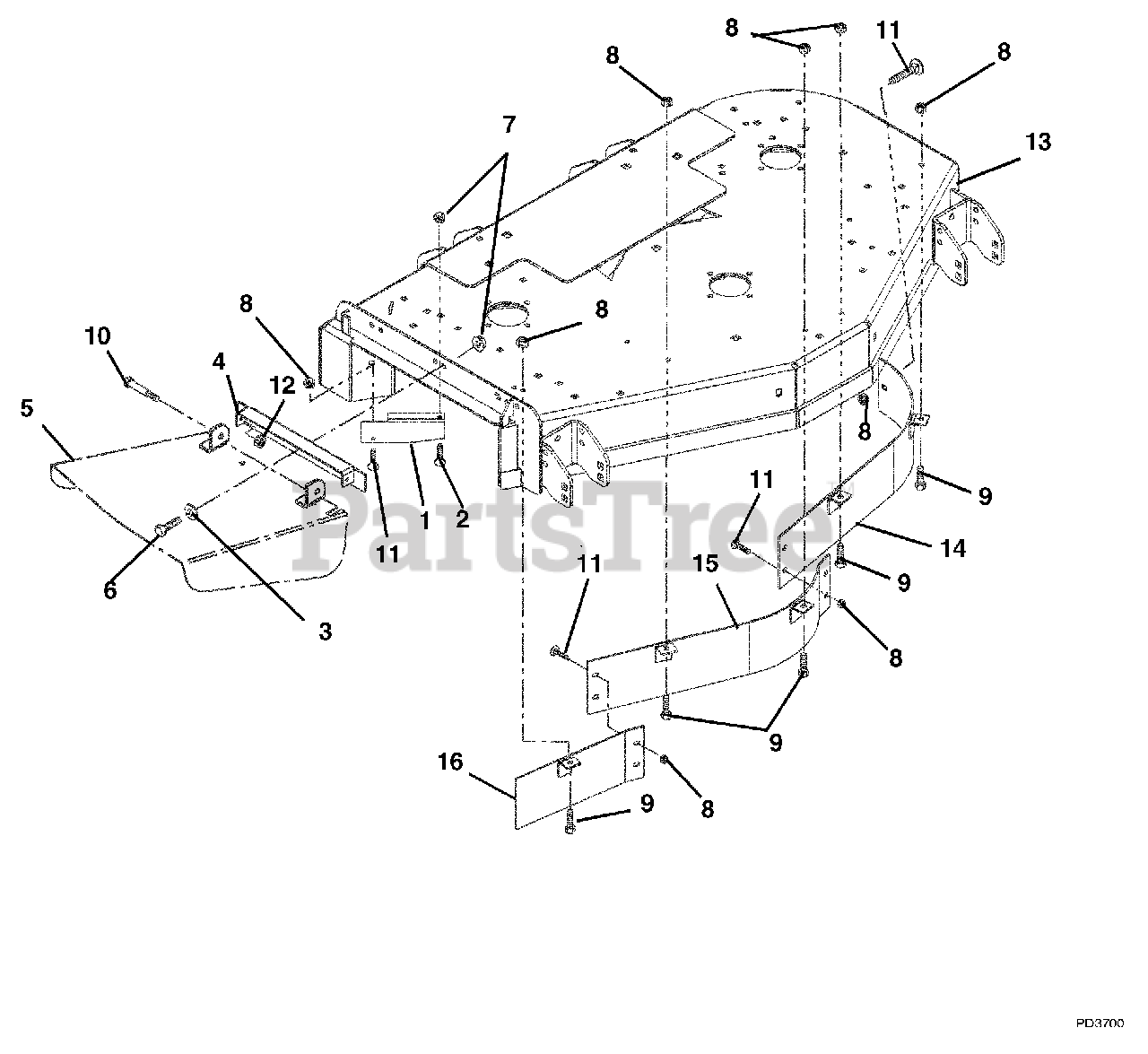

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04939851

Deflector- 44" (042, 310)
(Superseded to 04939853)

Note: (042, 310)

$58.99

$

Usually ships in 4-12 days

0

1

Gravely 04919451

Deflector- 48" (043, 311)
(Superseded to 04939853)

Note: (043, 311)

$58.99

$

Usually ships in 4-12 days

0

1

Gravely 04921951

Deflector- 52" (044, 054)
(Superseded to 04921953)

Note: (044, 054)

$

$

Not available

1

Gravely 09238451

Deflector- 60" (051, 055)

Note: (051, 055)

$

$

Not available

2

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083 (042, 043, 044, 054, 310, 311)
(Superseded to 06401023)

Note: (042, 043, 044, 054, 310, 311)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09286753

Weldment Discharge Chute Bracket (042, 043, 044, 054, 310, 311)

Note: (042, 043, 044, 054, 310, 311)

$150.99

$

Usually ships in 4-12 days

0

4

Gravely 09238353

Weldment Discharge Chute Bracket (051, 055)
(Superseded to 00253253)

Note: (051, 055)

$90.99

$

Usually ships in 4-12 days

0

5

Gravely 09286153

Chute-Discharge (042, 043, 044, 054, 310, 311)

Note: (042, 043, 044, 054, 310, 311)

$187.99

$

Usually ships in 4-12 days

0

5

Gravely 09250653

Chute-Discharge (051, 055)
(Superseded to 00198253)

Note: (051, 055)

$228.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07056500

Bolt-Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

11

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04940253

Weldment- 44" Mower Deck- Float (042, 310)
(Superseded to 59225300)

Note: (042, 310)

$774.99

$

Usually ships in 4-12 days

0

13

Gravely 09283853

Weldment- 48" Mower Deck (043, 311)

Note: (043, 311)

$1024.99

$

Usually ships in 4-12 days

0

13

Gravely 09284453

Weldment- 52" Mower Deck (044, 054)
(Superseded to 59225400)

Note: (044, 054)

$903.99

$

Usually ships in 4-12 days

0

13

Gravely 09288253

Weldment- 60" Mower Deck (051, 055)
(Superseded to 59228200)

Note: (051, 055)

$1758.99

$

Usually ships in 4-12 days

0

14

Gravely 04938951

Weldment- Baffle- Left Front-44" (042, 310)

Note: (042, 310)

$

$

Not available

14

Gravely 04918951

Weldment, Upper Baffle Left 48" (043, 311)
(Superseded to 04918953)

Note: (043, 311)

$75.99

$

Usually ships in 4-12 days

0

14

Gravely 04921651

Weldment, Upper Baffle Left 52" (044, 054)
(Superseded to 04921653)

Note: (044, 054)

$56.99

$

In Stock, only 1 left!

0

14

Gravely 09241651

Weldment, Upper Baffle Left 60" (051, 055)

Note: (051, 055)

$110.99

$

In Stock, only 1 left!

0

15

Gravely 04939051

Weldment-Baffle-Center Front - 44" (042, 310)

Note: (042, 310)

$156.99

$

Usually ships in 4-12 days

0

15

Gravely 04919051

Weldment, Upper Baffle Center 48" (043, 311)
(Superseded to 04919053)

Note: (043, 311)

$60.99

$

Usually ships in 4-12 days

0

15

Gravely 04921751

Weldment- Baffle-Center Front -52" (044, 054)

Note: (044, 054)

$74.99

$

In Stock, only 1 left!

0

15

Gravely 09241751

Weldment- Baffle-Center Front - 60" (051, 055)

Note: (051, 055)

$100.99

$

In Stock, only 2 left!

0

16

Gravely 04939151

Weldment-Baffle-Right Front- 44" (042, 310)

Note: (042, 310)

$100.99

$

Usually ships in 4-12 days

0

16

Gravely 04919651

Weldment, Upper Baffle Right 48" (043, 311)
(Superseded to 04919653)

Note: (043, 311)

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 04921851

Weldment- Baffle- Right Front - 52" (044, 054)
(Superseded to 04921853)

Note: (044, 054)

$37.99

$

In Stock, Qty 8

0

16

Gravely 09241851

Weldment- Baffle- Right Front - 60" (051, 055)

Note: (051, 055)

$56.99

$

Usually ships in 4-12 days

0
