992053 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kohler (SN: 001500 - 004000) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kohler

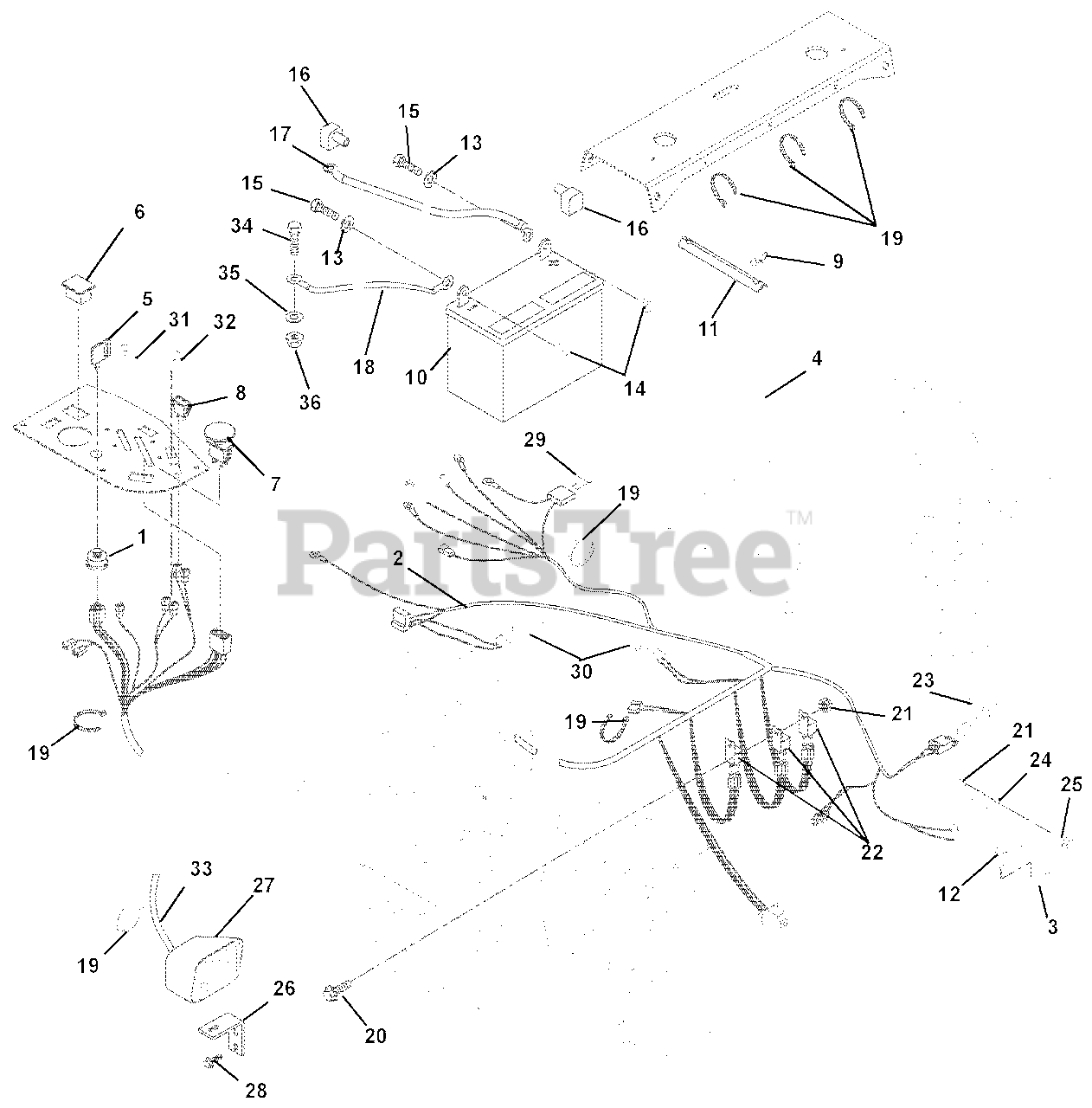

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

Switch, Ignition
(Superseded to 04331700)

$43.99

$

In Stock, Qty 11

0

2

Gravely 00359400

Harness, Z-6 Pin Wiring (EYE-Q) (045, 046, 047, 049, 052, 053)
(Superseded to 00359401)

Note: (EYE-Q) (045, 046, 047, 049, 052, 053)

$387.99

$

Usually ships in 4-12 days

0

Gravely 00360400

Harness, EFI-Monster Wiring (EYE-Q) (048)
(Superseded to 00360401)

Note: (EYE-Q) (048)

$377.99

$

In Stock, only 1 left!

0

3

Gravely 09275851

Mount, Safety Switch

$21.99

$

In Stock, only 1 left!

0

4

Gravely 09291900

Rod, Battery Holddown .25 x 6.62

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 09287000

Key, with Shield

$14.99

$

In Stock, Qty 20+

0

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 04935700

Hour Meter
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

7

Gravely 01545600

Switch, PTO Clutch

$25.99

$

In Stock, Qty 20+

0

8

Gravely 050673

Light-Indicator Kit (045, 046, 047, 049, 052, 053)
(Superseded to 05128700)

Note: (045, 046, 047, 049, 052, 053)

$6.99

$

In Stock, only 1 left!

0

Gravely 050673

Light-Indicator Kit (048)
(Superseded to 05128700)

Note: (048)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 06537500

Nut-Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 01554800

Battery

$

$

Not available

11

Gravely 03494000

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 02727200

Starter Cable 13 in.
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

18

Gravely 02518900

Ground Cable
(Superseded to 03287100)

$14.99

$

In Stock, only 1 left!

0

19

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

20

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 040216

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

23

Gravely 02754100

Switch- Snap Mounting

$9.49

$

In Stock, Qty 20+

0

24

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 2 left!

0

25

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

26

Gravely 09287551

Bracket, Headlight Mounting Left

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

28

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

30

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

31

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

32

Gravely 08973300

Switch, Light

$6.99

$

In Stock, only 1 left!

0

33

Gravely 09279200

Harness, Headlight Kit
(Superseded to 03288300)

$72.99

$

In Stock, only 2 left!

0

34

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
