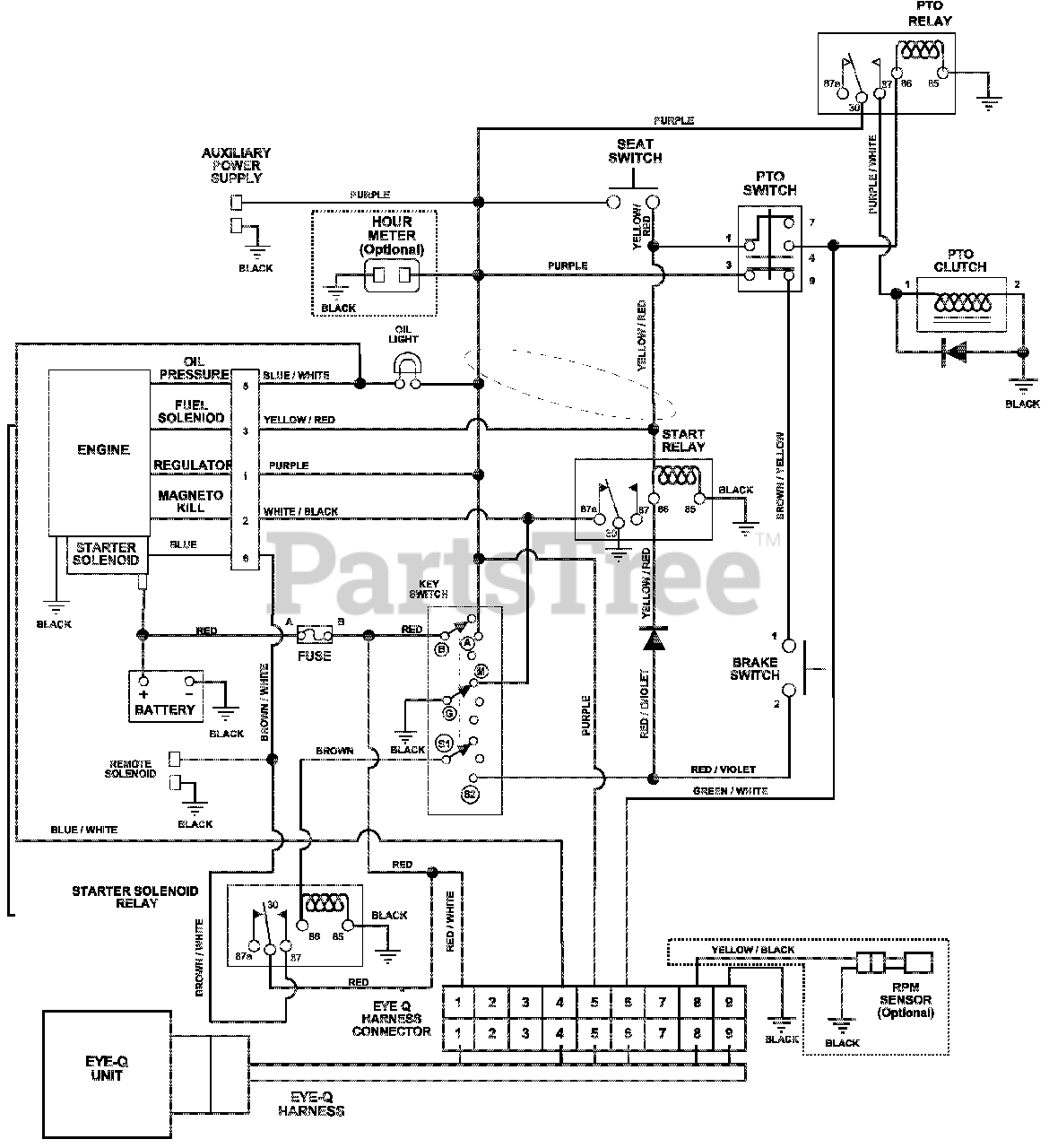

992049 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki (SN: 004001 & Above) Wiring Diagram Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki

Wiring Diagram Parts Diagram

  • Title
