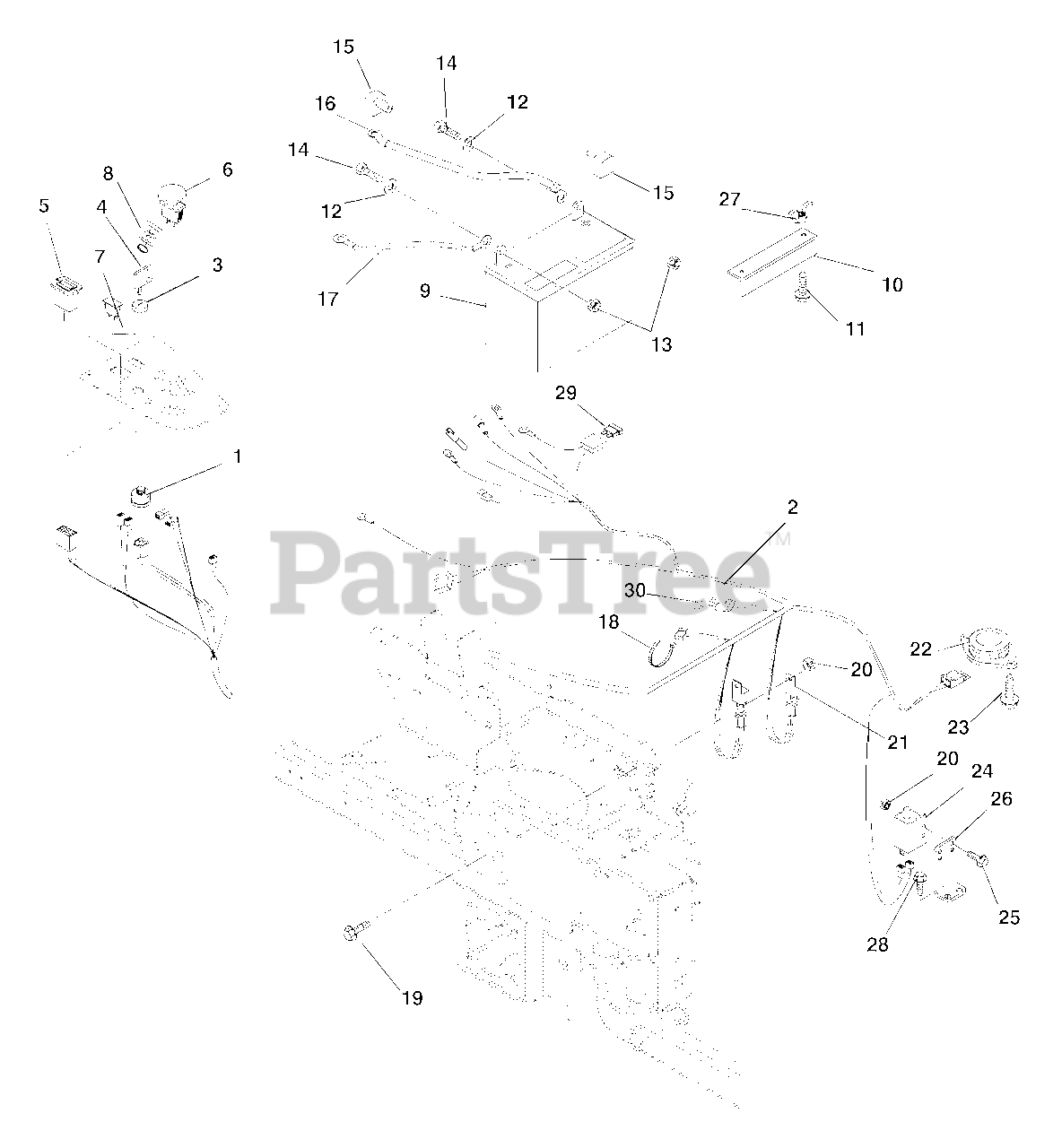

992043 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000499) Electrical System Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

Key Switch
(Superseded to 04331700)

$43.99

$

In Stock, Qty 11

0

2

Gravely 09286300

Harness, Z 6-Pin Wiring
(Superseded to 09286301)

$335.99

$

Usually ships in 4-12 days

0

3

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 09287000

Key with Shield

$14.99

$

In Stock, Qty 20+

0

5

Gravely 09418900

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

6

Gravely 01545600

Switch-Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

7

Gravely 050673

Light-Indicator Kit
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

8

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

9

Gravely 01554800

Battery

$

$

Not available

10

Gravely 015258

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

11

Gravely 06220400

Bolt, Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, only 4 left!

0

12

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 02743300

Positive Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

17

Gravely 042130

Ground Cable
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

18

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

19

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 040216

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

22

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

23

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

24

Gravely 03657100

Switch-Single Pole

$9.49

$

In Stock, only 2 left!

0

25

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

26

Gravely 09282851

Mount, Brake Switch

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 06537500

Nut-Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

30

Gravely 03081700

Molded Diode Plug-Black 1-Amp

Note: (Included with Harness)

$26.99

$

Usually ships in 4-12 days

0
