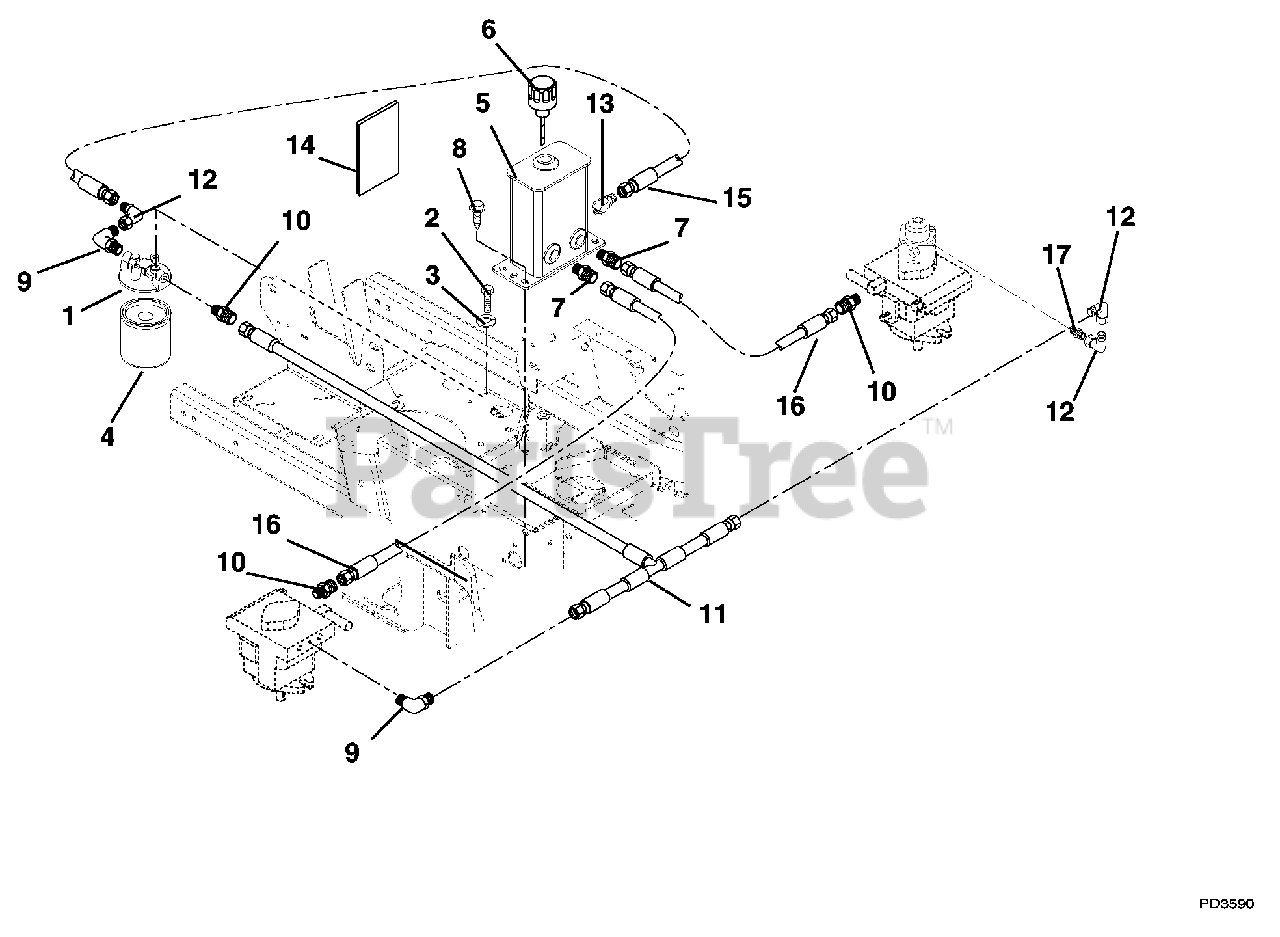

992042 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 002501 - 003999) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09072100

Head, Filter

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09246900

Oil Filter

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 00161051

Tank, Hydraulic

$

$

Not available

6

Gravely 09273900

Hydraulic Tank Dipstick

$45.99

$

In Stock, only 2 left!

0

7

Gravely 07061100

Adapter, Straight

$

$

Not available

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 07017500

Adapter, Pipe .56-18 "O"Ring to .56-18

$11.99

$

In Stock, only 2 left!

0

11

Gravely 00161200

Hose, Tee Assembly .38"

$

$

Not available

123

Adapter

Adapter

$

$

Not available

13

Gravely 07000002

Fitting, Hydraulic 45 Degree

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 09286900

Shield, Heat 5.50 x 4.50

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 09282500

Hose,Hydraulic

$24.99

$

Usually ships in 4-12 days

0

16

Gravely 00161100

Hose, Hydraulic

$62.99

$

Usually ships in 4-12 days

0

17

Gravely 09234700

Adapter

$6.99

$

Usually ships in 4-12 days

0
