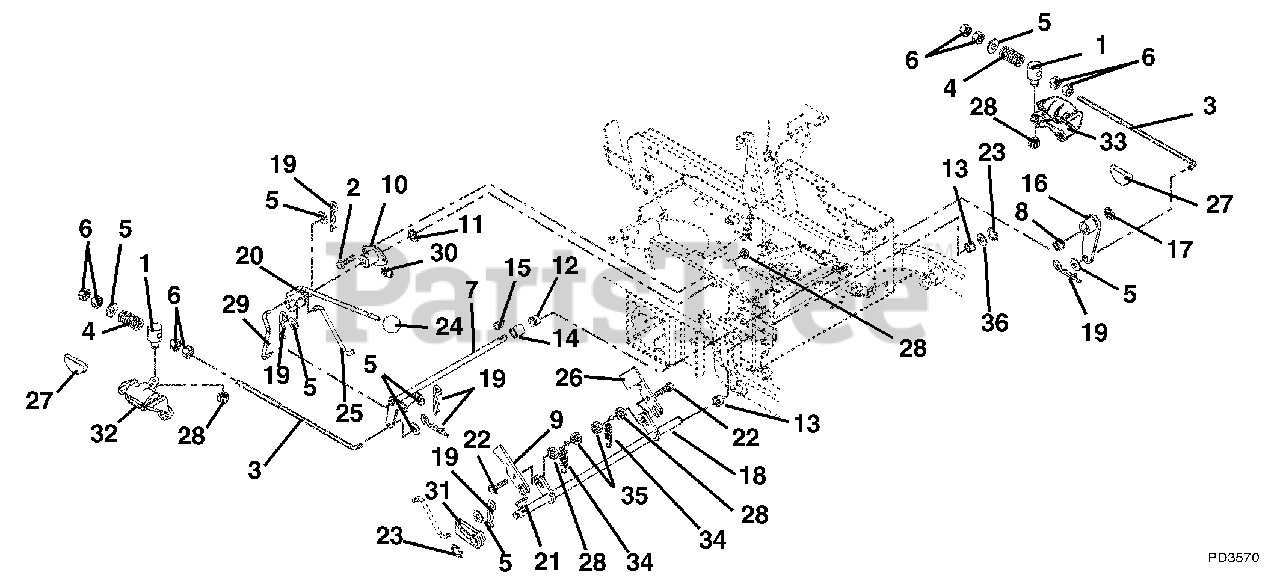

992042 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 000500 - 001999) Brakes Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Brakes Parts Diagram

  • Title

1

Gravely 09267300

Pivot-Brake Rod

$6.99

$

In Stock, only 1 left!

0

2

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09248000

PTO Link Rod

$

$

Not available

4

Gravely 08328500

Spring-Compression .143 x .710 x 2.00

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09285500

Weldment, Brake Cross Shaft

$74.99

$

Usually ships in 4-12 days

0

8

Gravely 045787

Bushing-Flange Nylon .63 x 1.00 x .625
(Superseded to 05517400)

$

$

Not available

9

Gravely 09267700

Slide, Interlocking Brake

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 05534100

Bushing, Flange

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 05709200

Ring-Retaining-External .625 x .05

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 010174

Bushing-Flange Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 05503100

Bushing-Flange .50 x .75 x .75 x 1.00

$9.99

$

In Stock, only 4 left!

0

14

Gravely 05500900

Bushing-Sleeve .75 X 1.00 X .75

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 124549

Key-Woodruff .19 x .75 Hard #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09267900

Arm-Brake Left-Hand

$148.99

$

Usually ships in 4-12 days

0

17

Gravely 05709200

Ring-Retaining-External .625 x .050

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 09284000

Weldment, Mechanical Brake

$103.99

$

Usually ships in 4-12 days

0

19

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 09269300

Weldment, Brake Actuating
(Superseded to 00277400)

$85.99

$

Usually ships in 4-12 days

0

21

Gravely 124545

Key-Woodruff .13 x .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

22

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

23

Gravely 05717100

Ring-Retaining-External .50 x .05

$2.49

$

In Stock, Qty 8

0

24

Gravely 039360

Knob, Steering Lock
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

25

Gravely 09268400

Linkage, Brake Actuating

$30.99

$

In Stock, only 1 left!

0

26

Gravely 09275900

Interlock, Safety Switch

$17.99

$

Usually ships in 4-12 days

0

27

Gravely 09200600

Pad, Disk Brake

$59.99

$

In Stock, only 2 left!

0

28

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 09268300

Linkage, Brake Actuating

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

31

Gravely 09268100

Weldment, Parking Brake Hub

$190.99

$

Usually ships in 4-12 days

0

32

Gravely 09279000

Brake, Right Hand Caliper

$362.99

$

Usually ships in 4-12 days

0

33

Gravely 09279100

Brake, Left Hand Caliper

$349.99

$

Usually ships in 4-12 days

0

34

Gravely 08328700

Spring-Tension .061 x .50 x 3.0

$20.99

$

In Stock, only 2 left!

0

35

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06439200

Washer-Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0
