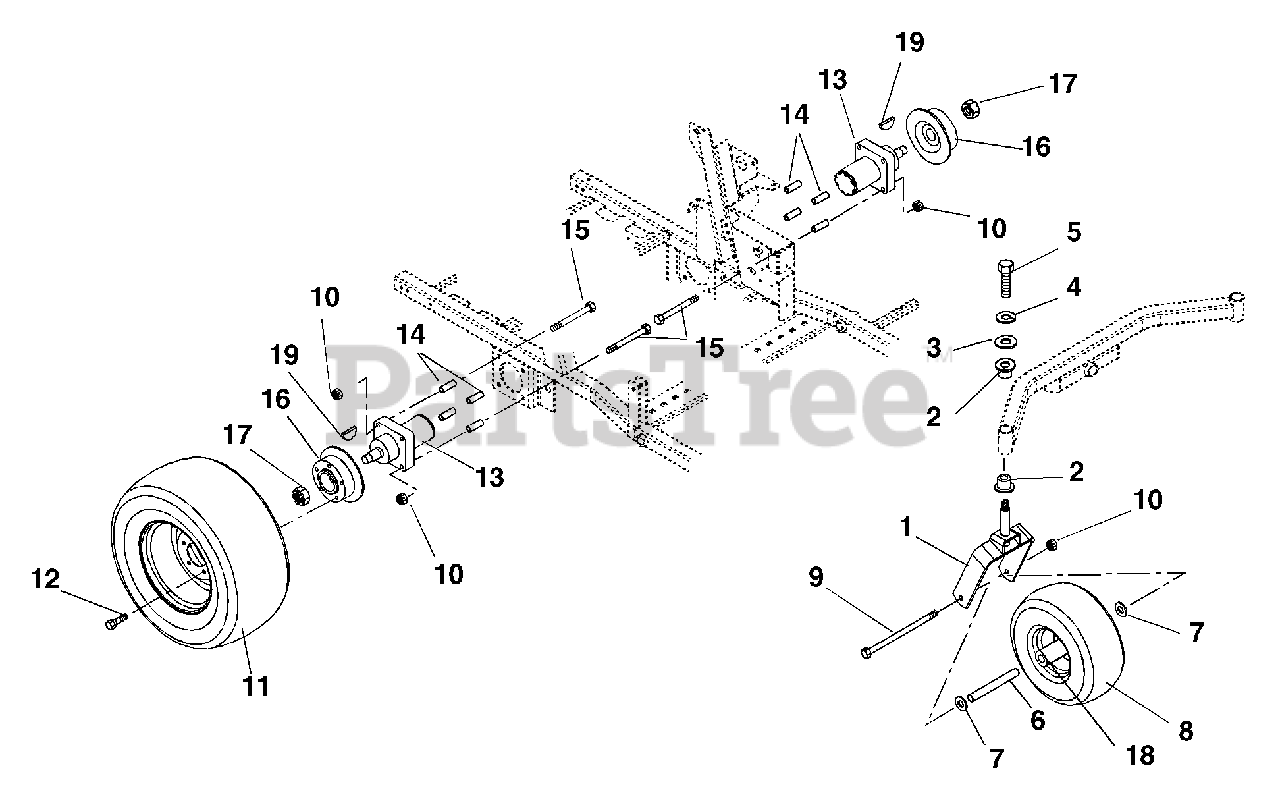

992041 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Motors And Wheels Parts Diagram

Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton

Motors And Wheels Parts Diagram

  • Title
1

Gravely 09214153

Fork-Front

$

$

Not available

2

Gravely 018355

Bushing, Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

3

Gravely 06443400

Washer-Flat-Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 11

0

4

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09231800

Spacer-Wheel

$47.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 4 left!

0

8

Gravely 07147800

Wheel/Tire Assembly
(Superseded to 59219000)

$193.99

$

In Stock, Qty 5

0

8

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

9

Gravely 05961200

Bolt-Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 07150700

Wheel-Tire 23 x 8.50 Multi-Trac

$

$

Not available

11

Gravely 07150800

Tire 23 x 8.50-12 Multitrac C/S

$

$

Not available

12

Gravely 034597

Bolt-Lug .50-20 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

13

Gravely 09262800

Hydraulic Wheel Motor

Note: (Includes 17 & 19)

$905.99

$

Usually ships in 4-12 days

0

14

Gravely 05534000

Bushing-Sleeve .513 x .748 x 1.93

$32.99

$

Usually ships in 4-12 days

0

15

Gravely 05978500

Screw-Socket Head .50-13 x 4.50

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

17

Gravely 06541900

Nut -Lock Jam Patch

Note: (Included with 13)

$30.99

$

Usually ships in 4-12 days

0

18

Gravely 05435700

Bearing, 25MM I.D. x 52MM O.D. x 15MM

$22.99

$

In Stock, Qty 19

0

19

Gravely 06607800

Key-Woodruff .31 x 1.00

Note: (Included with 13)

$3.99

$

Usually ships in 4-12 days

0
