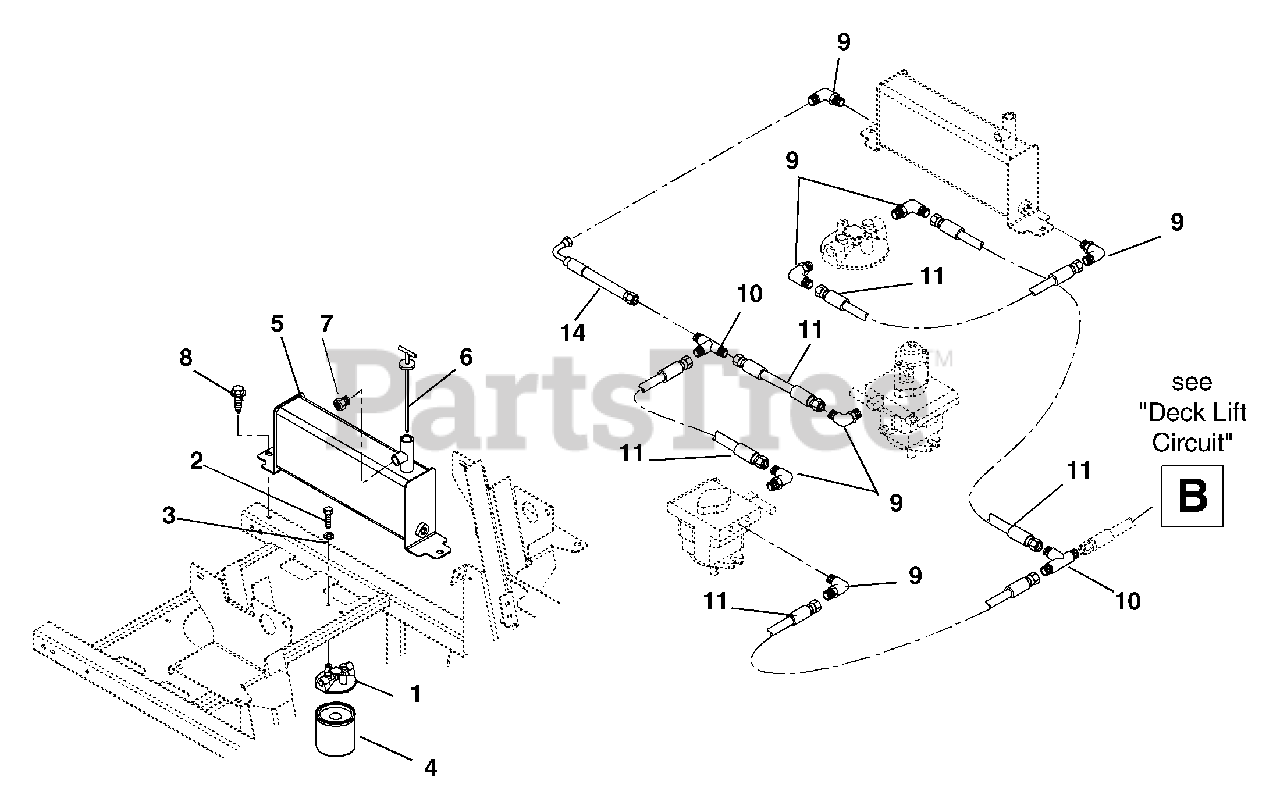

992041 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Hydraulic, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton

Hydraulic, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09072100

Head-Filter

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09246900

Oil Filter

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 09233153

Tank-Hydraulic Weldment
(Superseded to 09277553)

$

$

Not available

6

Gravely 00566400

Hydraulic Tank Dipstick

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 07050600

Plug-Breather .38

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 047657

Adapter-Tee .56-18
(Superseded to 07019500)

$

$

Not available

11

Gravely 039847

Hose-Hydraulic Valve to Tank
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 09234700

Adapter

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 09221000

Hose, Hydraulic

$

$

Not available
