992041 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) 50" Discharge Chute And Rollers Parts Diagram

Pro-Master 50" Zero-Turn Mower, 22hp Briggs & Stratton

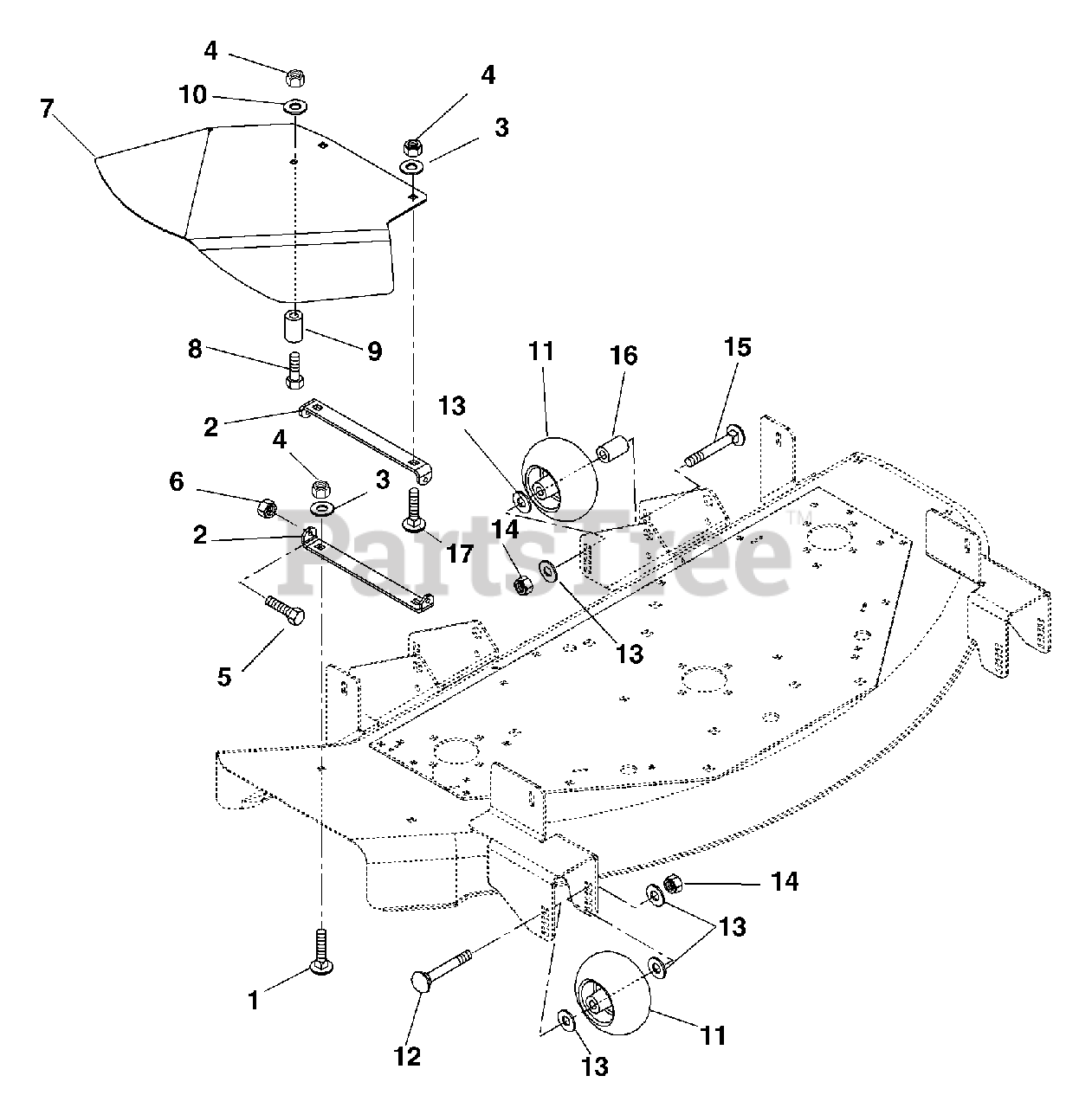

50" Discharge Chute And Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

2

Gravely 08827653

Bracket, Chute

$

$

Not available

3

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03498953

Shield, Safety External Weldment 50" Mower

$

$

Not available

8

Gravely 05957900

Bolt-Hex .38-16X1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

9

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

10

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

11

Gravely 09253700

Wheel, 3 x 5

$14.99

$

In Stock, Qty 6

0

12

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 06225100

Bolt-Round Head Square Neck .50-13 x 6.50

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 09214400

Spacer, Rear Roller

$31.99

$

Usually ships in 4-12 days

0

17

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0
