992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Steering Controls - Upper Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

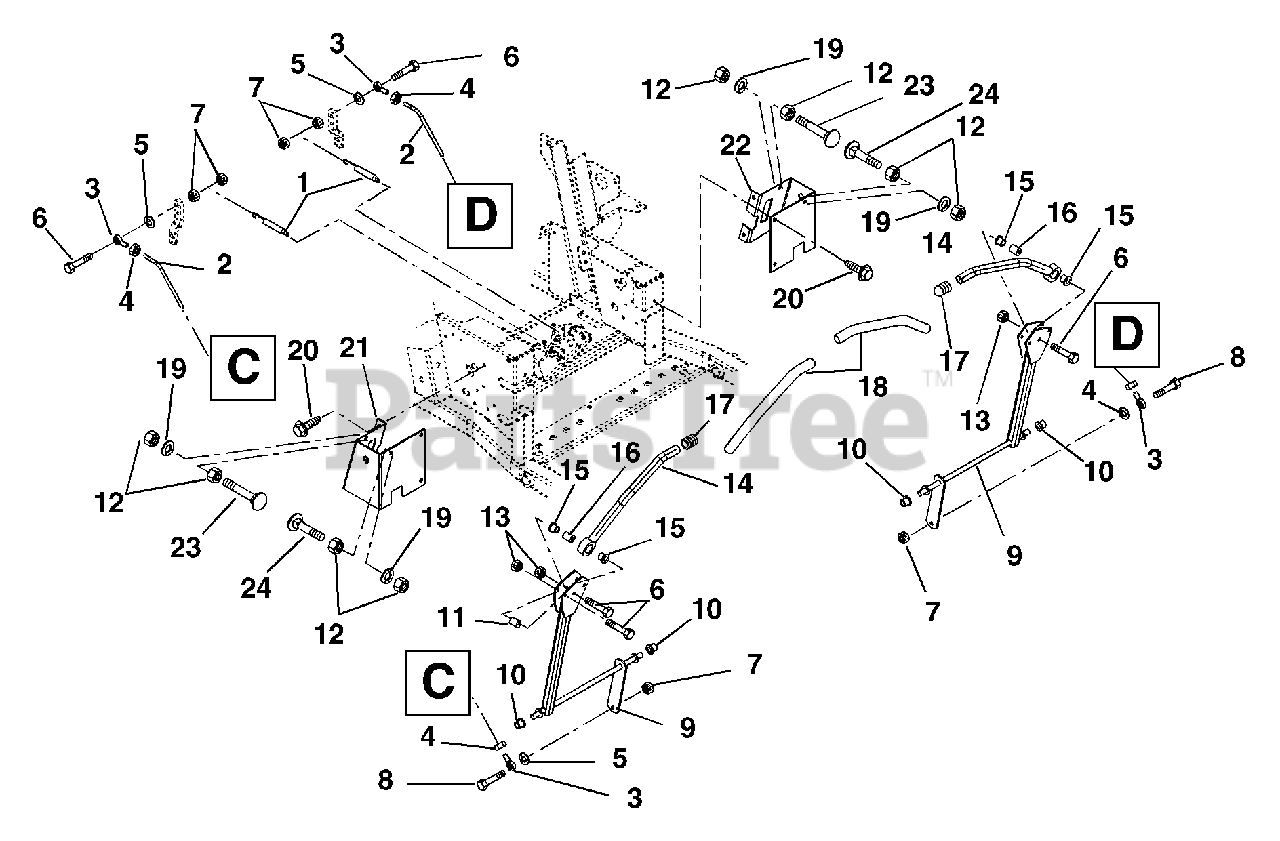

Steering Controls - Upper Parts Diagram

  • Title
1

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

2

Ariens 09235900

ROD - STEERING ADJUSTMENT

$142.99

$

Usually ships in 4-12 days

0

3

Ariens 08960700

ROD END, 5/16 RH - FEMALE
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

4

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

5

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

9

Ariens 09234900

ROD - STEERING
(Superseded to 09278251)

$103.99

$

Usually ships in 4-12 days

0

10

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

11

Ariens 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 09235500

HANDLE WLDMT LH

$90.99

$

In Stock, only 1 left!

0

Ariens 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

15

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

16

Ariens 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

17

Ariens 09211400

CAPLUG - HANDLEBAR

$2.99

$

In Stock, only 4 left!

0

18

Ariens 09246800

GRIP - HANDLEBAR

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 09224559

MOUNT, STEERING ROD RH(ORANGE)

$

$

Not available

22

Ariens 09224459

MOUNT, STEERING ROD LH(ORANGE)

$34.99

$

Usually ships in 4-12 days

0

23

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

24

Ariens 06215300

@BLT-RDHDSQNK .38-16X1.50 G2YZ
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0
