992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Steering Controls - Lower Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

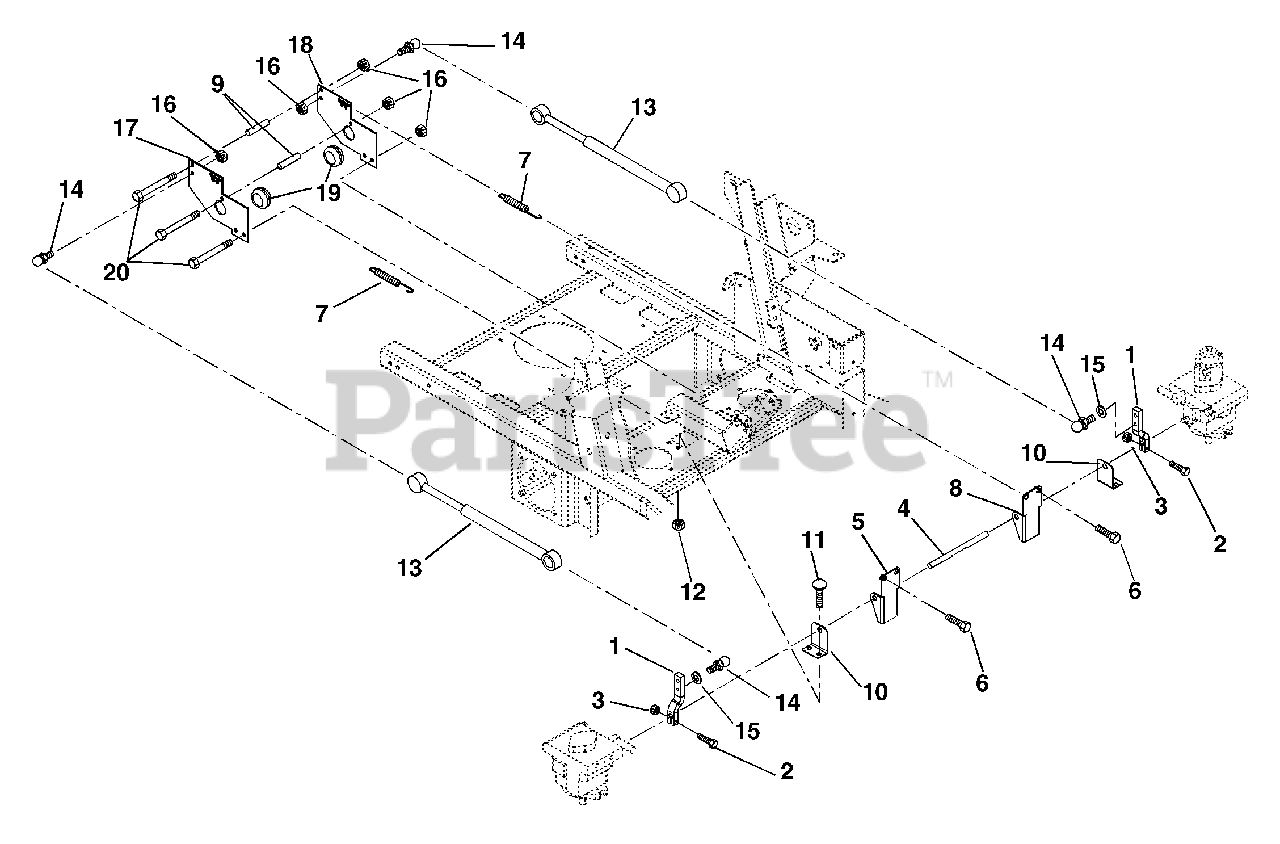

Steering Controls - Lower Parts Diagram

  • Title

1

Ariens 09260700

ARM, PUMP ACTUATING

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

3

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 09230600

ROD - PIVOT

$

$

Not available

5

Ariens 09230800

PIVOT - NEUTRAL RH

$

$

Not available

6

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 09230900

PIVOT - NEUTRAL LH

$

$

Not available

9

Ariens 01539300

SPACER, .328 X .462 X 1.92 YWZ

$

$

Not available

10

Ariens 09230700

SUPPORT - PIVOT ROD

$18.99

$

Usually ships in 4-12 days

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 09273400

DAMPER, CONTROL

$71.99

$

In Stock, only 4 left!

0

14

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

15

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 09233251

ANCHOR, DAMPER
(Superseded to 09233200)

$11.99

$

Usually ships in 4-12 days

0

18

Ariens 09233251

ANCHOR, DAMPER
(Superseded to 09233200)

$11.99

$

Usually ships in 4-12 days

0

19

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

20

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0
